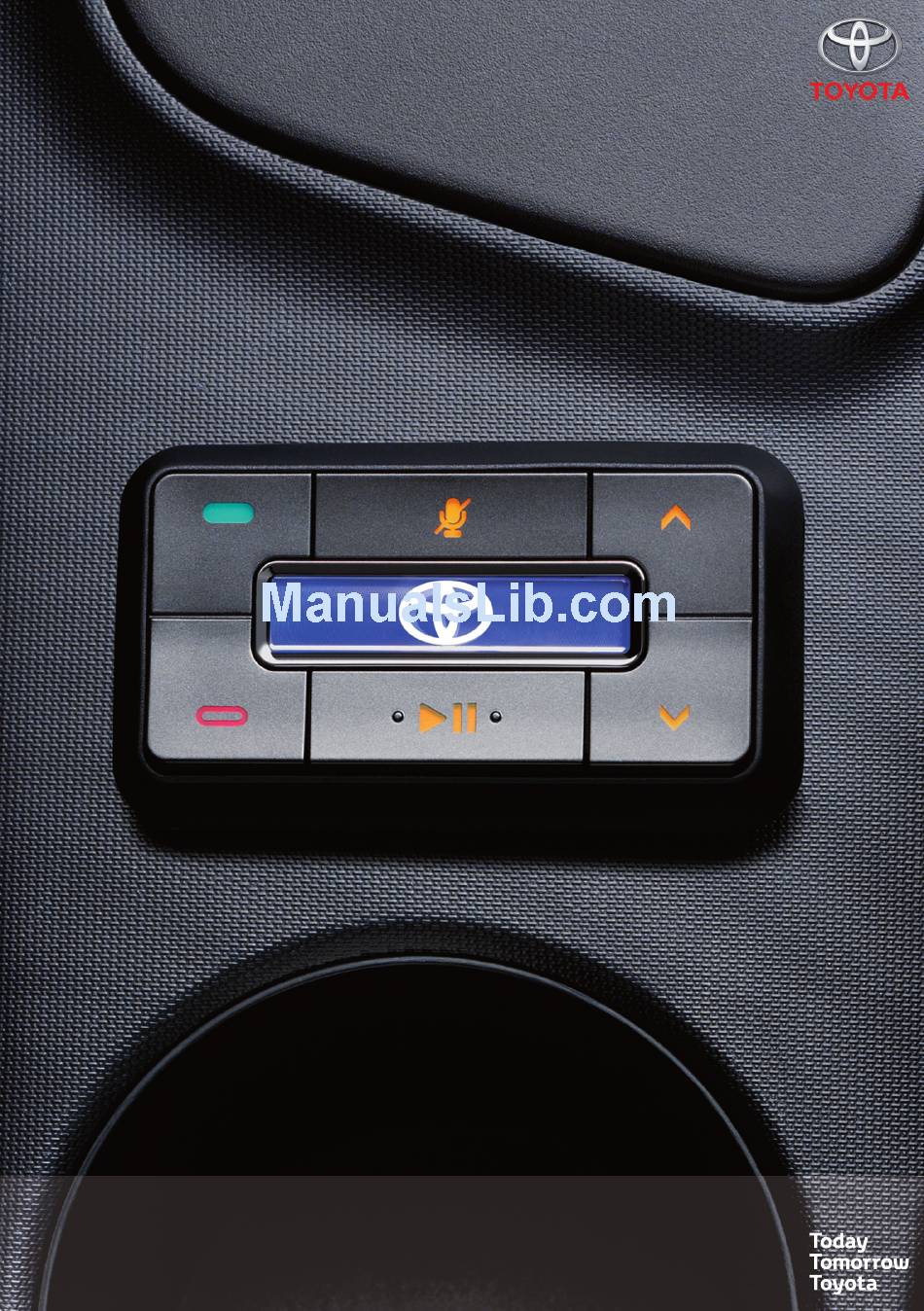

  • Page 1 Bluetooth® hands-free system Owner’s manual...
  • Page 3 OPERATING INSTRUCTIONS ............... Page Read this manual thoroughly before using the Bluetooth ® Always keep this owner’s manual in the vehicle. Bluetooth® hands-free system PZ420 I0291 EN...
  • Page 4 Bluetooth® hands-free system...

  • Page 5: Table Of Contents

    Table of Contents 1. Welcome ........................ 2. Safety and general information ................2.1. Safety symbols ......................2.2. Caution ........................3. Smart practices while driving................10 4. User Interface Module Quick Guide ..............11 5. Voice Recognition (VR) ..................12 6. Getting started ...................... 13 6.1.
  • Page 6 10.7. Remove a paired device ..................10.8. Remove all paired devices ..................10.9. Use the device list ....................11. Troubleshooting ....................32 12. UIM indicator light status ..................34 13. UIM button operation .................... 35 14. Voice Recognition Menu Maps ................38 Bluetooth®...
  • Page 7 “Troubleshooting”. Toyota recommends that only parts and accessories that have been tested and approved by Toyota in terms of safety, function and suitability should be used. These operating instructions are designed to ensure that you can operate the Bluetooth®...
  • Page 8 Bluetooth® hands-free system...

  • Page 9: Welcome

    1. Welcome Welcome to Toyota’s “connected” world of Bluetooth® personal area wireless networking. The Toyota Premium Speech-Operated Hands-free System with Bluetooth® Technology makes wireless connection simple and quick and offers advanced features such as: — seamless, wireless hands-free audio through a Bluetooth® link —...

  • Page 10: Safety And General Information

    2. Safety and general information 2.1. Safety symbols Warning: When this symbol appears in front of a text you must follow these recommendations to avoid irreparable damage to your car, system or connected devices or to avoid accidents with injuries or death as a result. ò...

  • Page 11: Caution

    2.2. Caution The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. Disposal of your mobile telephone and accessories If, at a later date you wish to dispose of the Bluetooth® system, the infrared headphones and/or remote control, legislation prohibits the disposal of electrical equipment as domestic waste.

  • Page 12: Smart Practices While Driving

    — when available, use a hands-free device. If possible, add an additional layer of convenience to your mobile device with one of the many Toyota original hands-free accessories available today —...

  • Page 13: User Interface Module Quick Guide

    4. User Interface Module Quick Guide Non-Call Functions Send button Multi-function button Volume up button Press and Release Press and Release Press and Release — last number redial. — activate VR (Voice Recognition) menu. — increase prompt volume by Press and Hold Press and Hold one level —...

  • Page 14: Voice Recognition (Vr)

    5. Voice Recognition (VR) Your hands-free system uses menu-driven voice recognition (VR) for setup and operation. Pressing the Multi-function button activates a voice recognition session with your hands-free system. Voice recognition (VR) has two main menus: — main phone/setup menu — available except when in a call —...

  • Page 15: Getting Started

    6. Getting started Once your hands-free system is professionally installed, use these procedures to get started. 6.1. Set your language ò Caution: When you change your hands-free system’s language, all contacts in your Contacts list and devices in your Device list are deleted. 1 Turn off the vehicle ignition and wait for 15 seconds.
  • Page 16 Searching may take a minute or two to complete. 4 Select TOYOTA from the list of devices 5 On the device, enter the passkey 0000 (if prompted) and press the OK key.

  • Page 17: Add Contact List Entries

    6.3. Add contact list entries You can store a list of names and phone numbers locally in the hands-free system’s contact list. The contact names stored in the Contact List can be called using the Call <name> command. The Contact List can support up to 50 entries. The Contact List is only available when a handset device is connected to the hands-free system.
  • Page 18 Delete a contact 1 Press the Multi-Function button. The system responds: Phone menu. {Say a command}. 2 Say Contact List. The system responds: Contact list. {Say a command}. 3 Say Delete <contact name>. The system responds: Are you sure you want to delete the contact <name>? 4 Say Yes to delete the contact.

  • Page 19: Using Phone Features

    7. Using phone features These features are only available when a handset device (such as your phone) is π connected to the hands-free system. Caller ID announcement feature On an incoming call, the hands-free system announces Call from <Caller ID> if the caller ID is available.

  • Page 20: Make A Call

    7.4. Make a call You can place a hands-free call using the hands-free system’s voice recognition (VR) menu in the following ways: — using the system’s contact list — digit dial using voice recognition (VR) — using the handset device’s voice commands —...
  • Page 21 Call with digit segments 1 Press the Multi-function button. The system responds: Phone menu. {Say a command}. 2 Say Dial Number. The system responds: Number please? 3 Say the first segment of digits. (for example, say the first three digits). The hands-free system recites the digits heard.
  • Page 22 Make a call using redial 1 Press the Multi-function button. The system responds: Phone menu. {Say a command}. 2 Say Redial. The system responds: Redialing and redials the last number dialed on the handset device. ó Note: Pressing the Send button also redials the last number dialed on the handset device.

  • Page 23: Manage The Contact List

    7.5. Manage the contact list From the contact list menu, you can add, list, call and delete system contacts. The contact list is only available when a handset device is connected to the hands-free system. List contact entries 1 Press the Multi-function button. The system responds: Phone menu.
  • Page 24 4 Select the contact(s) on your handset device and send them using Bluetooth® to your Toyota Hands-free System. ó Note: Refer to your handset device’s user’s guide for more details on how to transfer contacts using Bluetooth®.

  • Page 25: In-Call Options

    8. In-call options A call must be in progress to use these features. Adjust call volume During a hands-free call, the volume can be adjusted using the Volume Up and Volume Down buttons. Tones are played to indicate when the maximum and minimum volumes are reached. End a call 1 Press the Multi-function button.
  • Page 26 π Transfer private call to hands-free 1 Press the Multi-function button. The system responds: Call menu. {Say a command}. 2 Say Hands-free Mode. The system responds: Hands-free mode and transfers the call to the hands-free system. ó Note: Pressing and holding the Send button also transfers the call the hands-free system.
  • Page 27 π End active call while a call is held 1 Press the Multi-function button. The system responds: Call menu. {Say a command}. 2 Say Hang Up. The system responds: Call ended. The held call is automatically resumed. ó π Note: Pressing the End button ends the active call (while a call is held). Make a call while in an active call When in an active call, you can make an outgoing call using the Dial Number and π...

  • Page 28: Music Mode

    9. Music mode* The Toyota Hands-free Music System enables listening to music from your paired device You can also control music from Toyota Hands-free Music System 9.1. Enabling music control 1 Press the Multi-function button. The system responds: Phone/Setup menu. {Say a command}.

  • Page 29: Enabling Music With A Particular Device

    9.2. Enabling music with a particular device 1 Press the Multi-function button. The system responds: Phone/Setup menu. {Say a command}. 2 Say Music with <device name>. Where device name is the friendly name for the music device you want to connect. For example Music with Rokr.

  • Page 30: Other Voice Recognition Menu Options

    10. Other Voice Recognition menu options Voice commands are supported for Bluetooth® device management features such as pairing, connecting, disconnecting and removing devices and other system settings such as Phone Audio and Expert Mode. 10.1. Expert mode Expert Mode speeds up hands-free system operation for advanced users. The expert mode feature can be turned on (or off) using the Expert Mode On (or Expert Mode Off) voice recognition (VR) command.

  • Page 31: Pair To A Device

    Searching may take a minute or two to complete. 5 Select TOYOTA from the list of devices. 6 At the handset device, if prompted, enter the passkey 0000 and press the OK key.

  • Page 32: Disconnect A Connected Device

    10.6. Disconnect a connected device This feature disconnects the Bluetooth® link to a connected device. The device remains paired with the hands-free system. 1 Press the Multi-function button. The system responds: Phone/Setup menu. {Say a command}. 2 Say Disconnect <device name>, where <device name> is the friendly name for the device you want to connect.

  • Page 33: Use The Device List

    10.9. Use the device list The devices can be managed using the List Devices command. List devices 1 Press the Multi-function button. The system responds: Phone/Setup menu. {Say a command}. 2 Say List Devices. The hands-free system begins to list the devices paired: First device <device A>, next device <device B>...

  • Page 34: Troubleshooting

    11. Troubleshooting Problem Resolution... Poor voice recognition performance — always divert air flow from vent or defrost away from the microphone; airflow into microphone will severely impact audio and voice recognition performance — speak toward the direction of the microphone —...
  • Page 35 Phone voice commands cannot be used — a “voice tag” may not be set up for the number you want to dial. Follow your handset device’s user manual to set up voice dialing — most handset devices will prompt with a beep to indicate it is now time to speak. Wait until the beep has ended before speaking.

  • Page 36: Uim Indicator Light Status

    12. UIM indicator light status The LEDs on the UIM provides the following status information. State Multi-function Button Mute Icon Music icon Idle. No handset device connected Blue (Dimly lit) Ready Handset device connected Blue Pairing Slow Blue flash Incoming call/ Waiting call Quick Blue flash Quick flash Call...

  • Page 37: Uim Button Operation

    13. UIM button operation There are seven buttons on the UIM whose functions vary depending on how they are pressed. Multi-function button (blue) Mute button (orange) Volume Up button Send button (green) (orange) Volume Down button End button (red) (orange) Play/Pause button (orange) You can perform two types of actions with each UIM button: —...
  • Page 38 State Button Action Idle Connected Call VR session Music Mode* — last number — answer — last number Redial. incoming call Redial. — toggle between hold and resume Press and — answer release waiting call — switch Send between held and active call.
  • Page 39 State Button Action Idle Connected Call VR session Music Mode* — increase VR — increase VR — increase — increase VR — next track. volume by volume by hands-free volume by one level. one level. volume by one one level Press and level.

  • Page 40: Voice Recognition Menu Maps

    14. Voice Recognition Menu Maps Main Menu ∑ Multi-function button ¥ Phone/Setup menu. {Say a command} µ “Dial Number” ∏ ¥ Number please? µ <number> ∏ ¥ <number> ∏ µ “Dial/Yes” ∏ ¥ Calling µ “Clear” ∏ ¥ Last String Cleared... µ...
  • Page 41 Main Menu (continued) (cont) µ “Disconnect <device name>” ∏ ¥ Disconnecting <device name>..Disconnection complete µ “Remove <device name>” ∏ ¥ Removing <device name>. Are you sure? µ “Yes” ∏ ¥ Device removed µ “No” ∏ ¥ Cancelled. Phone/Setup menu. {Say a command} µ...
  • Page 42 Contact List Menu ¥ Contact list. {Say a command} µ “Add Contact” ∏ ¥ Say the name µ “<name>” ¥ Say the number for <name> µ “<number>” ¥ <number> ∏ µ “Yes/Add” ∏ ¥ Contact added. Would you like to add another contact? µ...
  • Page 43 Call Menu ∑ Multi-function button ¥ Call menu. {Say a command} µ “Hang Up” ∏ ¥ Call ended µ “Privacy mode” ∏ ¥ Privacy mode µ “Hands-free mode” ∏ ¥ Hands-free mode µ “Mute” ∏ ¥ Call Muted µ “Unmute” ∏ ¥ Call Unmuted µ...
  • Page 44 Bluetooth® hands-free system...
  • Page 46 PZ420-I0291-EN Publication no. AOM 000 256-0 Printed in Belgium (May 2009)
