- Page 1 User Manual For Toyota Touch2 & Entune2.0 System...
- Page 2 1. Functional Statement Apple Android Screen Advanced Front Bluetooth CarPlay Auto Mirroring Media Chip Camera Calling CarPlay / Android Auto The built-in vehicle machine interaction system of iPhone cooperates with the central control knob button to provide voice command and control of phone, information, navigation, music, to operate Siri voice interaction to obtain more information; Support wireless and wired connection Carplay.
-
Page 3: Specifications
2. Specifications 3. Product Information Operating Voltage ：5V Stored temperature ：-30~+85℃ Operating temperature ： Environment humidity ： -30~+75℃ ≤98% (at45℃） 65±5% (rated） Power consumption ： Shutdown current ： 1A (rated) ，3A(Max) 300mA (Clock is on） Quiescent Current ：less than 3mA Charging current: Host (Size: 128*84*25mm) ≤2A, when the USB charging current>1A, the host should activate the... -
Page 4: Connection Diagram

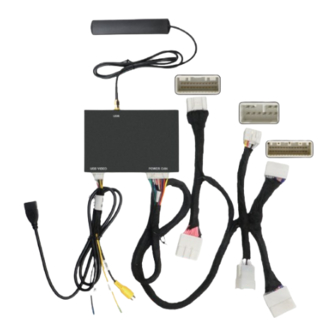

4. Connection Diagram Connect with Original Car's Main Unit-24PIN 24PIN Connect with Original Car's Main Unit-10PIN 10PIN Connect with Original Car's Main Unit-28PIN Connect with Original Car's Plug-28PIN 28PIN Connect with Original Car's Plug-10PIN Connect with Original Car's Plug-24PIN Forward Looking Input Camera Power Supply USB Cable WIFI Antenna... - Page 5 5. Vehicle Dialing Table 6. Switch to CarPlay System The product supports the original car system and there are three ways to switch to CarPlay interface： 1. In the original car screen: First click on the "FM" icon, then click on the "AUX" icon to enter： Dialing Model Fujitsu Panasonic...
- Page 6 7. Control Key Operation Instructions Support original car button control Support touch screen control Volume + Volume - Previous song Next song Answer the phone Hang up the phone Short press to wake up Siri Long press 2s to switch CarPlay system...
- Page 7 8. Wireless CarPlay Connection Method Wired Connection Method: Connect the phone cable with the original car, and then Click “Use CarPlay" in the pop up window. Step 1 Step 2 Step 3 Step 4 Select “Bluetooth” Check the Bluetooth Device Turn on WIFI and keep it on, Select Bluetooth Device name name as “CAR-BT-xxxx"...
- Page 8 9. Apple Wireless Screen Mirroring Step 2 Step 3 Step 4 Step 1 Select “Airplay” Turn on the phone, select the After the carplay wifi connection After mobile phone “Wireless LAN" option, is successful, return to the main “Screen Mirroring" search will show...
- Page 9 10. Wireless Android Auto Connection Method Wired Connection Method: Connect the phone cable with the original car, and then click “Allow" in the pop up window. Step 1 Step 2 Step 3 Step 4 Select the “Bluetooth” Check Bluetooth name Click on the Bluetooth name Click the Bluetooth name at starting with “CAR-BT-xxx"...
- Page 10 11. Android Wireless Screen Mirroring Step 1 Step 2 Step 3 Step 4 Android phone scan and Switch the WifiAutoLink to Open the Auto link software you The touch reverse control download the Auto Link by “ON” in the Settings page. downloaded, search “WiFiAu- and the media sound can be using the Browser.
- Page 11 12. Settings Camera selection： Default regular resolution： 670*470 Select OEM Camera and Aftermarket Camera Left and right display incomplete selection: Senna L/R not full 709*470 RAV4 Corolla display leftward selection: RAV4 6” Left offset 670*470 Steps: Settings-Audio-AEC Delay,then click the button “Start Auto AEC” Call Echo Cancellation: If there is an echo, please click this button for echo correction.
