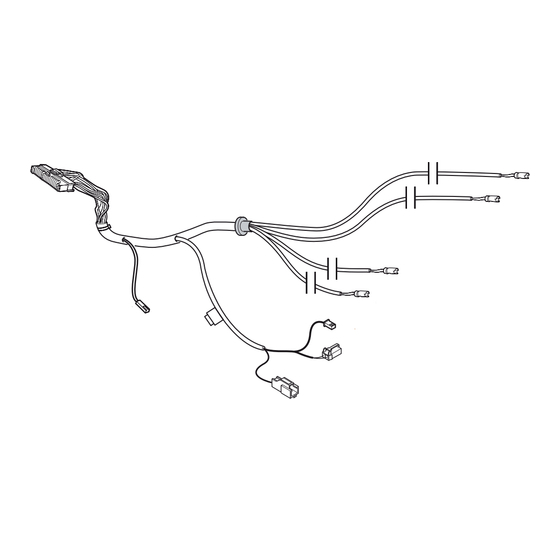

- Page 1 IQ (LHD) TPA Rear Installation instructions Model year: 2008 Vehicle code: **J1*L-BG***W Part number: PZ464-I0420-B0 PZ464-00422-** PZ464-T3420-55 Weight: Main kit 5 0.8 kg Sensor kit 0.15 kg Manual reference number: AIM 001 372 - 2...
-
Page 2: Revision Record
Revision Record Rev. No. Date Page Picture Update Deleted Steps 08/06/10 30/01/13 2 of 26 Manual Ref. no. AIM 001 372 - 2... - Page 3 Expert Fitment Required. Montage durch Fachwerkstatt erforderlich. Disconnect the battery earth cable. Massekabel von Batterie abklemmen. To avoid damage to the wiring harness, ensure Zur Vermeidung von Beschädigungen an der contact with sharp edges is prevented. Kabelisolation ist Berührung mit scharfen Kanten zu vermeiden.
- Page 4 Nødvendig med montering fra fagvegverksted. Verkstadsmontage erfordras. Klem jordkabelen av batteriet. Lossa stomkabeln från batteriet. For å unngå skader på kabelisoleringen må För att förhindra skador på ledningarnas isolation berøring av skarpe kanter unngås. skall beröring med vassa kanter undvikas. Montera detaljerna enligt figurerna Monter alle deler i henhold til illustrasjonene.
- Page 5 Blue Blau Azul Bleu Azul Blauw Blå Black Schwarz Negro Noir Nero Preto Zwart Sort Brown Braun Marrón Marron Marrone Castanho Bruin Brun Green Grün Verde Vert Verde Verde Groen Grøn Grey Grau Gris Gris Grigio Cinzento Grijs Grå Natural colour Naturfarben Color natural Nature Colori naturali...
- Page 6 T0119 T0178 T0122 T0265 T0068 T0169 T0128 T0180 T0266 PZ464-T3420-55 PZ464-00422-** T0179 T0133 6 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 7 T0004 T0001 CLEANER T0003 T0002 T0177 10 mm T0007 T0006 T0005 12 mm T0134 T0009 T0073 Only PZ464-00422-AB T0381 7 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 8 T0382 8 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 9 T0421 T0420 9 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 10 10 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 11 T0422 T0423 T0424 11 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 12 TORX 20 TORX 20 T0425 T0426 12 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 13 T0385 370mm 370mm 640mm 10,5 mm T0386 13 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 14 T0387 T0388 CLEANER T0389 14 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 15 CLEANER CLEANER T0390 CLEANER T0297 T0296 T0298 15 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 16 T0299 T0391 16 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 17 T0394 T0392 17 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 18 T0393 T0406 18 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 19 T0300 T0405 T0301 19 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 20 T0409 20 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 21 T0411 T0412 OPTIONAL 100mm 40mm T0413 21 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 22 T0414 7,8 Nm T0110 22 of 26 Manual Ref. no. AIM 001 372 - 2...
-
Page 23: Check Size
**J1*L-BG***W 2008 Ø 2 mm Ø 20 mm 10.5 mm Ø 2 mm 370 mm CHECK SIZE Print 100% Check with Rulers before use. 640mm 370mm 370mm 90 100 T0417 23 of 26 Manual Ref. no. AIM 001 372 - 2... - Page 24 **J1*L-BG***W 2008 640mm Ø 2 mm 370mm 370mm Ø 20 mm 10.5 mm Ø 2 mm CHECK SIZE 640 mm Print 100% Check with Rulers before use. 90 100 T0416 24 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 25 **J1*L-BG***W 2008 640mm 370mm 370mm Ø 2 mm Ø 20 mm 10.5 mm Ø 2 mm CHECK SIZE 640 mm Print 100% Check with Rulers before use. 90 100 T0418 25 of 26 Manual Ref. no. AIM 001 372 - 2...
- Page 26 **J1*L-BG***W 2008 Ø 2 mm Ø 20 mm 10.5 mm Ø 2 mm 370 mm CHECK SIZE Print 100% Check with Rulers before use. 640mm 370mm 370mm 90 100 T0419 26 of 26 Manual Ref. no. AIM 001 372 - 2...
