Toyota PW960-0R000 Installation Instructions Manual

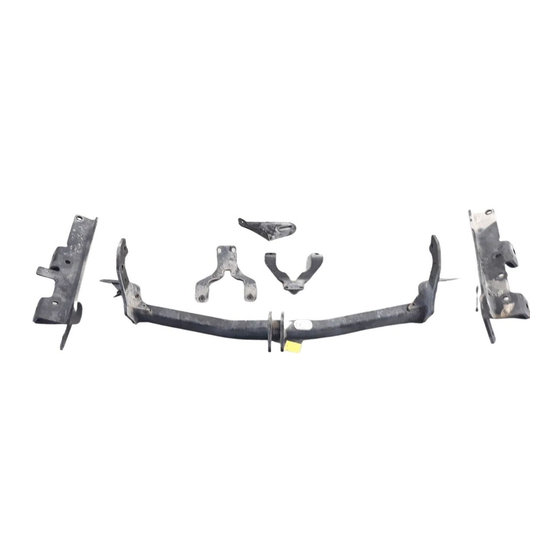

Rav4 towing hitch fixed
Hide thumbs

Advertisement

Quick Links

Download this manual
RAV4
Towing hitch fi xed
Installation Instructions
Model year:
Vehicle code:
Part number:
Weight:
Manual reference number: AIM 003 561-8
2015/10
**A4**-*N***W
PW960-0R000 Towing hitch fi xed
If Kick sensor: 90980-09871 Dummy plug inserts (x3)
90980-12719 Dummy plug connector (x1)
35 Kg

Advertisement

loading
Need help?

Need help?

Do you have a question about the PW960-0R000 and is the answer not in the manual?

Questions and answers

Related Manuals for Toyota PW960-0R000

Summary of Contents for Toyota PW960-0R000

  • Page 1 Towing hitch fi xed Installation Instructions Model year: 2015/10 Vehicle code: **A4**-*N***W Part number: PW960-0R000 Towing hitch fi xed If Kick sensor: 90980-09871 Dummy plug inserts (x3) 90980-12719 Dummy plug connector (x1) Weight: 35 Kg Manual reference number: AIM 003 561-8...
  • Page 2 Diese Montage- und Betriebsanleitung ist im en sind in der Bedienungsanleitung des (Wachs) und Antidröhnmaterial entfernt werden. (Wachs) und Antidröhnmaterial entfernt werden. the TOYOTA service guidlines, where necessary. the TOYOTA service guidlines, where necessary. Fahrzeug mitzuführen und ggf. berechtigten Fahrzeugs und in den Fahrzeug-Papieren ver- Fahrzeug mitzuführen und ggf.
  • Page 3 Korrosionsbeskyttelse foretages iht. retningslinier- foretas i henhold til TOYOTA service-retningslinjer. foretas i henhold til TOYOTA service-retningslinjer. ne fra TOYOTA-Service, hvor dette er påkrævet. ne fra TOYOTA-Service, hvor dette er påkrævet. Na 1000 km gebruik van de aanhanger alle Na 1000 km gebruik van de aanhanger alle Efter 1000 km körning med släpvagn skall alla...
  • Page 4 Где необходимо, нанести антикоррозионное покрытие в πρέπει να αφαιρεθεί η προστασία σασί, η Her model için geçerli olan çekme ağırlıkları araba соответствии с нормами сервиса для моделей TOYOTA. συντήρηση κενών χώρων (κηρός) και το αντι- ruhsat evrakında belirtilmiştir. δονητικό υλικό.
  • Page 5 Material za zaščito proti koroziji nanesite na predvidena mesta v skladu s TOYOTA smerni- cami za servisiranje. Po pribl. 1000 prevoženih km s prikolico znova trdno privijte vijake s predpisanim navorom.
  • Page 6 Revision record Rev. No. Date Page Picture Update Deleted steps 22.09.2016 29.09.2016 18, 41 Part list, 38, 39 Part list, 38, 39 03.05.2018 04.06.2018 PBD Option 20.07.2018 Part E 06.08.2018 7, 11, 15, 27 Kit, 5, 11, 36 „U“, „V“ >...
  • Page 7 (11x) M12x1,25x50 (6x) M8x40 (10.9) (1x) PZ408-90550-01 (11x) M12 (6x) M12x40(10.9) ((1x) PZ408-00550-01 (8x) M12 (10) (6x) M12 (2x) M12x90(10.9) (1x) 40x40x5 (2x) M12 s=18mm (4x) M8x25 (10.9) (1x) M12 s=19mm (14x) M8 (4x) M8x20(10.9) (8x) M8 PZ408-X0563-60 110 Nm 25 Nm 100 Nm (3x) 90980-09871...
  • Page 8 Click Manual reference number: AIM 003 561-8 8 of 42...
  • Page 9 Manual reference number: AIM 003 561-8 9 of 42...
  • Page 10 10 mm Manual reference number: AIM 003 561-8 10 of 42...
  • Page 11 Manual reference number: AIM 003 561-8 11 of 42...
  • Page 12 Manual reference number: AIM 003 561-8 12 of 42...
  • Page 13 Manual reference number: AIM 003 561-8 13 of 42...
  • Page 14 Manual reference number: AIM 003 561-8 14 of 42...
  • Page 15 10 mm 10 mm 8 mm 8 mm 10 mm Manual reference number: AIM 003 561-8 15 of 42...
  • Page 16 Prod ≥ 08/2016 (13-20) Manual reference number: AIM 003 561-8 16 of 42...
  • Page 17 Manual reference number: AIM 003 561-8 17 of 42...
  • Page 18 Manual reference number: AIM 003 561-8 18 of 42...
  • Page 19 Manual reference number: AIM 003 561-8 19 of 42...
  • Page 20 Prod ≥ 10/2014 Manual reference number: AIM 003 561-8 20 of 42...
  • Page 21 Manual reference number: AIM 003 561-8 21 of 42...
  • Page 22 Manual reference number: AIM 003 561-8 22 of 42...
  • Page 23 (1x) M12x1,25x50 (1x) M12 (1x) M12 Manual reference number: AIM 003 561-8 23 of 42...
  • Page 24 (1x) M12x1,25x50 (1x) M12 Manual reference number: AIM 003 561-8 24 of 42...
  • Page 25 (2x) M12x1,25x50 (2x) M12 (1x) 40x40x5 Manual reference number: AIM 003 561-8 25 of 42...
  • Page 26 (3x) M12x1,25x50 (3x) M12 (3x) M12 Manual reference number: AIM 003 561-8 26 of 42...
  • Page 27 (2x) M12x1,25x50 (2x) M12 Manual reference number: AIM 003 561-8 27 of 42...
  • Page 28 (2x) M8x20 (10.9) (2x) M8x25 (10.9) (4x) M8 (4x) M8 (2x) M8x20 (10.9) (2x) M8x25 (10.9) (4x) M8 (4x) M8 Manual reference number: AIM 003 561-8 28 of 42...
  • Page 29 (6x) M8x40 (10.9) (6x) M8 Manual reference number: AIM 003 561-8 29 of 42...
  • Page 30 (6x) M12x40(10.9) (6x) M12 (10) Manual reference number: AIM 003 561-8 30 of 42...
  • Page 31 1 2 3 ... 25Nm 25Nm 25Nm 25Nm 100Nm 100Nm 100Nm 100Nm 110Nm 18/19 110Nm 18/19 Manual reference number: AIM 003 561-8 31 of 42...
  • Page 32 Manual reference number: AIM 003 561-8 32 of 42...
  • Page 33 180˚ = 70 = Inside bumper Inside bumper Manual reference number: AIM 003 561-8 33 of 42...
  • Page 34 10 mm 10 mm 8 mm 8 mm 10 mm Manual reference number: AIM 003 561-8 34 of 42...
  • Page 35 Prod ≥ 10/2014 Prod ≥ 10/2014 Manual reference number: AIM 003 561-8 35 of 42...
  • Page 36 (2x) M12 (10) (2x) M12x90(10.9) (2x) M12 s=18mm 110Nm (1x) M12 s=19mm 90˚ Manual reference number: AIM 003 561-8 36 of 42...
  • Page 37 10 mm 5.4 Nm Manual reference number: AIM 003 561-8 37 of 42...
  • Page 38 Manual reference number: AIM 003 561-8 38 of 42...
  • Page 39 Manual reference number: AIM 003 561-8 39 of 42...
  • Page 40 Manual reference number: AIM 003 561-8 40 of 42...
  • Page 41 CHECK SHEET Model/Year RAV4 2015/10 Towing hitch fixed VIN n° P/N = OK CLICK Serial Number 100Nm 1 2 3 ... Serial Number 25Nm 100Nm 100Nm 25Nm 25Nm 110Nm 25Nm 110Nm 100Nm 110Nm Manual reference number: AIM 003 561-8 41 of 42...
  • Page 42 Click Serial Number 5,4 Nm Beep Only Only = OK = OK Installation Date: Technician Name & Signature: Stamp: . . / . . / ..Manual reference number: AIM 003 561-8 42 of 42...
