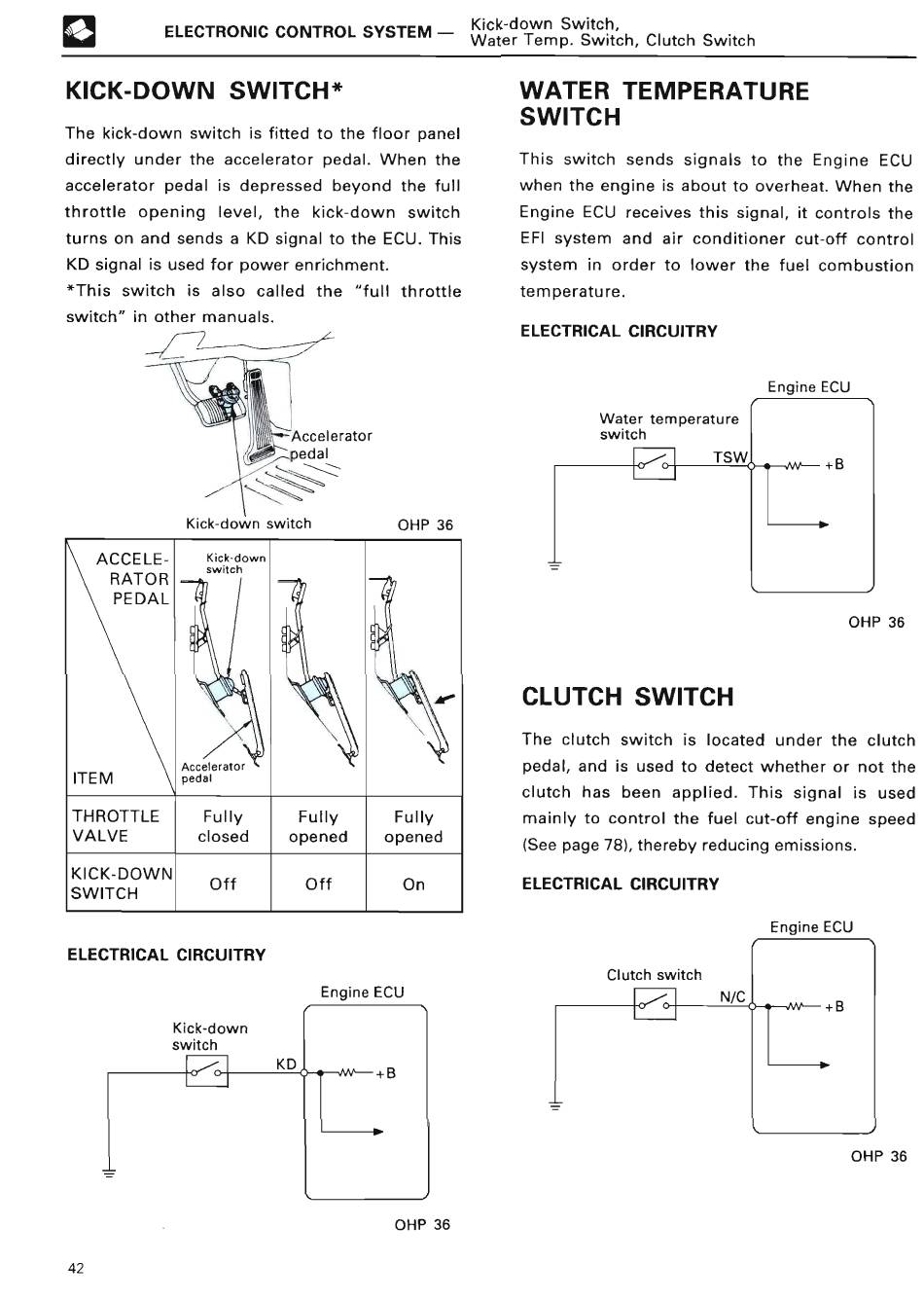

ELECTRONIC CONTROL SYSTEM - Kick-down Switch ,
Water Temp . Switch, Clutch Switc h
KICK-DOWN SWITCH* WATER TEMPERATUR E
The kick-down switch is fitted to the floor panel
SWITC H
directly under the accelerator pedal . When the This switch sends signals to the Engine ECU
accelerator pedal is depressed beyond the full when the engine is about to overheat . When the
throttle opening level, the kick-down switch Engine ECU receives this signal, it controls the
turns on and sends a KD signal to the ECU . This EFI system and air conditioner cut-off control
KD signal is used for power enrichment . system in order to lower the fuel combustio n
*This switch is also called the "full throttle
switch" in other manuals .
~- -~
temperature .
ELECTRICAL CIRCUITRY
Engine EC U
Accelerato r
e----peda l
Kick-down switch
OHP 3 6
ACCELE-
Kick-dow n
RATOR
switc h
PEDAL
~ .
r
Accelerato r
ITEM
peda l
THROTTLE Fully Fully Full y
VALVE
closed opened opene d
KICK-DOW N
SWITCH
Off Off On
OHP 3 6
CLUTCH SWITCH
The clutch switch is located under the clutch
pedal, and is used to detect whether or not the
clutch has been applied . This signal is used
mainly to control the fuel cut-off engine speed
(See page 78), thereby reducing emissions .
ELECTRICAL CIRCUITRY
Engine EC U
ELECTRICAL CIRCUITRY
Engine ECU
OHP 3 6
OHP 3 6
