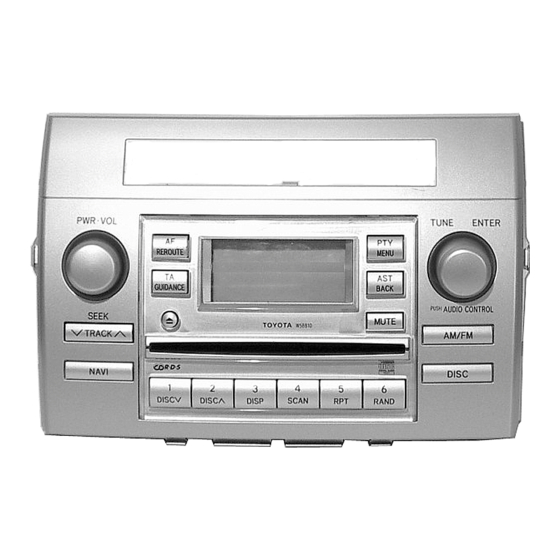

Toyota CQ-TS7420K Service Manual

Toyota CQ-TS7420K Service Manual

Am/fm/rds mpx electronic tuning radio with 6-disc cd changer
Hide thumbs Also See for CQ-TS7420K:

Advertisement

Quick Links

Specifications
General
Power Supply
Current Consumption
FM Stereo Radio
Frequency Range
Effective Sensitivity
Signal to Noise Ratio
LW Radio
Frequency Range
Effective Sensitivity
Signal to Noise Ratio
MW Radio
Frequency Range
Effective Sensitivity
Signal to Noise Ratio
All manuals and user guides at all-guides.com
DC 12V
Test Voltage 14.4V
Negative Ground
Less than 3.0A (at 0.5W)
87.50 - 108MHz
Less than 14dB/µV
More than 46dB
153 - 279Hz
43dB/µV
More than 42dB
522 - 1611Hz
34dB/µV
More than 42dB
CQ-TS7420K
AM/FM/RDS
MPX
TUNING
RADIO
Changer
TOYOTA PART No. 86120-0F020
ID CODE : W58811
VEHICLE : Corolla Verso
DESTINATION : Europe
PRODUCED AFTER : Feb. 2004
CD Changer(YGFD13196)
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
• • • • Above specifications comply with EIA standards.
ELECTRONIC
with
6-Disc
CD
More than 65dB
Less than 0.3%
More than 70dB
178×100×136mm(W×H×D)
2.7kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CQ-TS7420K and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota CQ-TS7420K

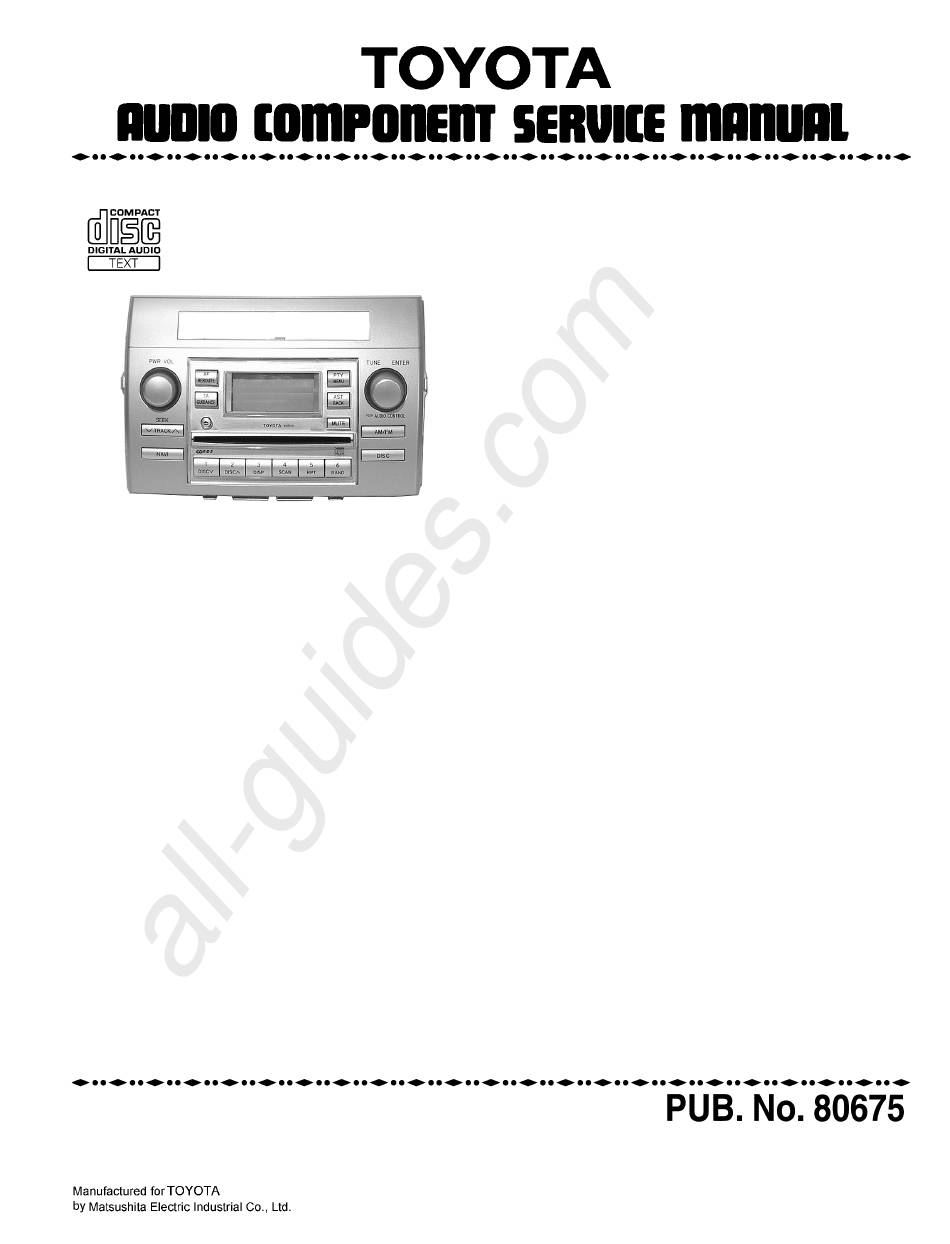

  • Page 1 All manuals and user guides at all-guides.com CQ-TS7420K AM/FM/RDS ELECTRONIC TUNING RADIO with 6-Disc Changer TOYOTA PART No. 86120-0F020 ID CODE : W58811 VEHICLE : Corolla Verso DESTINATION : Europe PRODUCED AFTER : Feb. 2004 Specifications General Power Supply DC 12V CD Changer(YGFD13196) Test Voltage 14.4V...
  • Page 2: Table Of Contents

    12 MEMO · Escutcheon Color : Silver 1 FEATUERS · The corner of the view is27° · TOYOTA AVC-LAN · 6-disc CD changer (in dash board) · 10-Pro Tuner Pack · Compatible with Audio CD, CD-R and CD-RW · 24-station preset (18-FM, 6-AM) ·...
  • Page 3: View And Connectors

    All manuals and user guides at all-guides.com CQ-TS7420K 3 VIEW AND CONNECTORS...
  • Page 4: Wiring Connection

    All manuals and user guides at all-guides.com CQ-TS7420K 4 WIRING CONNECTION...
  • Page 5: Block Diagram

    All manuals and user guides at all-guides.com CQ-TS7420K 5 BLOCK DIAGRAM...
  • Page 6: Terminals Description

    All manuals and user guides at all-guides.com CQ-TS7420K 6 TERMINALS DESCRIPTION 6.1. Main Block Port Descriptions 67 NC No connection IC601 : C2CBKH000090 68 RDS MUTE RDS Mute 5.0 5.0 Port Descriptions 69 NC No connection 70 NC No connection...
  • Page 7: Package And Ic Block Diagram

    All manuals and user guides at all-guides.com CQ-TS7420K 7 PACKAGE AND IC BLOCK DIAGRAM 7.1. Main Block IC141 : C1EB00000061 IC181 : YEAMHA12181F...
  • Page 8 All manuals and user guides at all-guides.com CQ-TS7420K IC201 : C2HBZF000007 IC651,652 : C1EB00000001 IC653 : C1EB00000017 IC231 : C1BA00000345...
  • Page 9 All manuals and user guides at all-guides.com CQ-TS7420K IC701 : C0DBZHZ00020 IC704 : AN31910A-NF IC703 : C0CBABC00138 IC706 : C0EBE0000174...
  • Page 10: Replacement Parts List

    All manuals and user guides at all-guides.com CQ-TS7420K 8 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks Q804 YEANC114YKX Transistor LIST Notes : DIODEs D101 B0ADDJ000007 Diode 1. Be sure to make your orders of replacement parts D110...
  • Page 11 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C156 F1J1H151A672 Ceramic, 150PF 50WV C301 F1J1E1050004 Ceramic, 1µF 25WV C157 F1J1H151A672 Ceramic, 150PF 50WV C302 F1J1C1050013 Ceramic, 1µF 16WV...
  • Page 12 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 10kΩ Ω Ω Ω 1/10W C773 ECEA1HKAR22I Electrolytic, 0.22µF 50WV R150 ERJ6GEYJ103 Chip, 2.2kΩ Ω Ω Ω 1/10W...
  • Page 13 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 0Ω Ω Ω Ω 1/16W Chip, 0Ω Ω Ω Ω 1/8W R318 ERJ3GEY0R00V R717 ERJ8GEY0R00V Chip, 1.5kΩ...
  • Page 14 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks CN704 K1FA108B0011 Connector, 8P R835 D1H410220001 Network Resistor CN801 K1MN20A00020 Connector, 20P R851 EXBV8V102JV Network Resistor...
  • Page 15 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 330Ω Ω Ω Ω 1/8W D994 MA8056LMHTX Diode R992 ERJ8GEYJ331V Chip, 330Ω Ω Ω Ω 1/8W...
  • Page 16 All manuals and user guides at all-guides.com CQ-TS7420K Ref. Part No. Part Name & Description Remarks Mechanical Parts MISCELLANEOUS K9ZZ00001062 Flat Cable, 20P K9ZZ00001061 Flat Cable, 14P K9ZZ00001063 Flat Cable, 6P ANT1 YEAA10091 Antenna Receptacle YEAT03346A Terminal YEAT03346A Terminal YEAT03346A...
  • Page 17: Exploded View (Unit)

    All manuals and user guides at all-guides.com CQ-TS7420K 9 EXPLODED VIEW (Unit)
  • Page 18: Wiring Diagram

    All manuals and user guides at all-guides.com CQ-TS7420K 10 WIRING DIAGRAM 10.1. Main Block (Top View)
  • Page 19 All manuals and user guides at all-guides.com CQ-TS7420K 10.2. Main Block (Bottom View)
  • Page 20 All manuals and user guides at all-guides.com CQ-TS7420K 10.3. Display/Volume/Tuner Block (Top View)
  • Page 21 All manuals and user guides at all-guides.com CQ-TS7420K 10.4. Display/Volume/Tuner Block (Bottom View)
  • Page 22 All manuals and user guides at all-guides.com THIS PAGE IS JUST FOR THE PAGE LAYOUT USE ONLY.
  • Page 23: Schematic Diagram

    All manuals and user guides at all-guides.com CQ-TS7420K 11 SCHEMATIC DIAGRAM 11.1. Main Block...
  • Page 24 CQ-TS7420K All manuals and user guides at all-guides.com 11.2. Display/Volume/Tuner Block...
  • Page 25: Memo

    All manuals and user guides at all-guides.com CQ-TS7420K 12 MEMO...
  • Page 26 All manuals and user guides at all-guides.com CQ-TS7420K...
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com CONTENTS Page Page 1 FEATUERS 7 CD CHANGER PARTS LIST 2 LASER PRODUCTS 8 EXPLODED VIEW (CD Deck-1) 3 WIRING CONNECTION (CD Deck) 9 EXPLODED VIEW (CD Deck-2) 4 BLOCK DIAGRAM (CD Deck) 10 EXPLODED VIEW (CD Deck-3) 5 TERMINALS DESCRIPTION (CD Deck) 11 WIRING DIAGRAM (CD Deck)
  • Page 29: Block Diagram (Cd Deck)

    All manuals and user guides at all-guides.com 4 BLOCK DIAGRAM (CD Deck)
  • Page 30: Terminals Description (Cd Deck)

    All manuals and user guides at all-guides.com 5 TERMINALS DESCRIPTION (CD Deck) IC201 : MN662785TBUC Port Descriptions Port Descriptions DVDD1 +5V power supply DVSS1 Ground DVDD3 +5V power supply D-RAM data IC301 : C2BBGF000479 D-RAM data Port Descriptions D-RAM data write NRAS D-RAM row address strobe Motor power save...
  • Page 31: Ic Block Diagram (Cd Deck)

    All manuals and user guides at all-guides.com 6 IC BLOCK DIAGRAM (CD Deck) IC202 : C3ABMB000037 IC501 : C0GBH0000006 IC601 : C0GBY0000014...
  • Page 32: Cd Changer Parts List

    All manuals and user guides at all-guides.com 7 CD CHANGER PARTS Ref. Part No. Part Name & Description Remarks Chip, 1kΩ Ω Ω Ω 1/16W ERJ3GEYJ102V LIST Chip, 1.0Ω Ω Ω Ω 1/10W R101 ERJ6GEYJ1R0V Chip, 0Ω Ω Ω Ω 1/16W R102 ERJ3GEY0R00V Chip, 0Ω...
  • Page 33 All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 56kΩ Ω Ω Ω 1/16W R615 ERJ3GEYJ563V CONNECTOR Chip, 15kΩ Ω Ω Ω 1/16W R616 ERJ3GEYJ153V CN311 K1MN09B00061 Connector, 9P...
  • Page 34 All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks YGFX0031125 Horizontal Gear 3 YGFW05389 Stocker Cam Ring YGFX0031139 Gear XQN2+A2FX Screw, M2x2mm YEFX003896 Horizontal Gear 1 XQN2+C2FX Screw, M2x2mm YEFX003884...
  • Page 35: Exploded View (Cd Deck-1)

    All manuals and user guides at all-guides.com 8 EXPLODED VIEW (CD Deck-1)
  • Page 36: Exploded View (Cd Deck-2)

    All manuals and user guides at all-guides.com 9 EXPLODED VIEW (CD Deck-2)
  • Page 37: Exploded View (Cd Deck-3)

    All manuals and user guides at all-guides.com 10 EXPLODED VIEW (CD Deck-3)
  • Page 38: Wiring Diagram (Cd Deck)

    All manuals and user guides at all-guides.com 11 WIRING DIAGRAM (CD Deck) 11.1. CD Servo Block (Top View) 21 19 [E-9060A] [Top View] YGFD13196 DECK P.C.B...
  • Page 39 All manuals and user guides at all-guides.com 11.2. CD Servo Block (Bottom View) [E-9060A] [Bottom View] YGFD13196 DECK P.C.B...
  • Page 40 All manuals and user guides at all-guides.com THIS PAGE IS JUST FOR THE PAGE LAYOUT USE ONLY.
  • Page 41: Schematic Diagram (Cd Deck)

    All manuals and user guides at all-guides.com 12 SCHEMATIC DIAGRAM (CD Deck) YGFD13196...
