EFI - Fuel Syste m

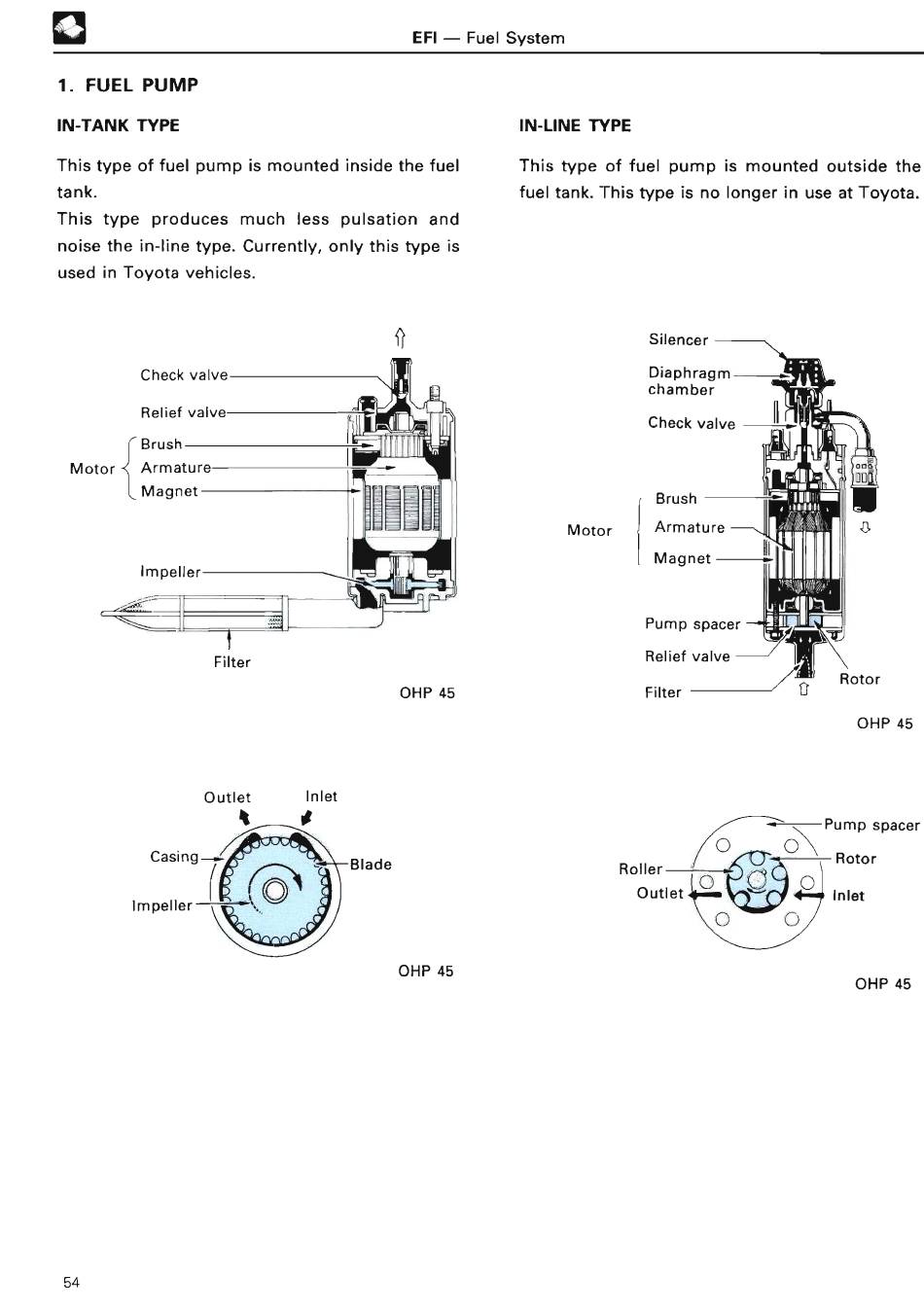

1 . FUEL PUM P
IN-TANK TYPE IN-LINE TYP E
This type of fuel pump is mounted inside the fuel This type of fuel pump is mounted outside the
tank . fuel tank . This type is no longer in use at Toyota .
This type produces much less pulsation an d
noise the in-line type . Currently, only this type is
used in Toyota vehicles .
OHP 45
Motor
Silence r
Diaphragm -
chambe r
Check valve -
Brus h
Armature
Magne t
Pump space r
Relief valv e
Filter
Mj5LX
]TER--A
0 0
Roto r
OHP 4 5
Outlet Inlet
t -
it
Casin g
Impeller
Blade
OHP 45
OHP 4 5
