2. Connect the Port D and Port U of One Sending Card to LED Screen
(1) First, make sure the device is in normal operation.
(2) Choose the input source, for example, DVI.
(3) Connect one cable to Port D1, the other one to U1.

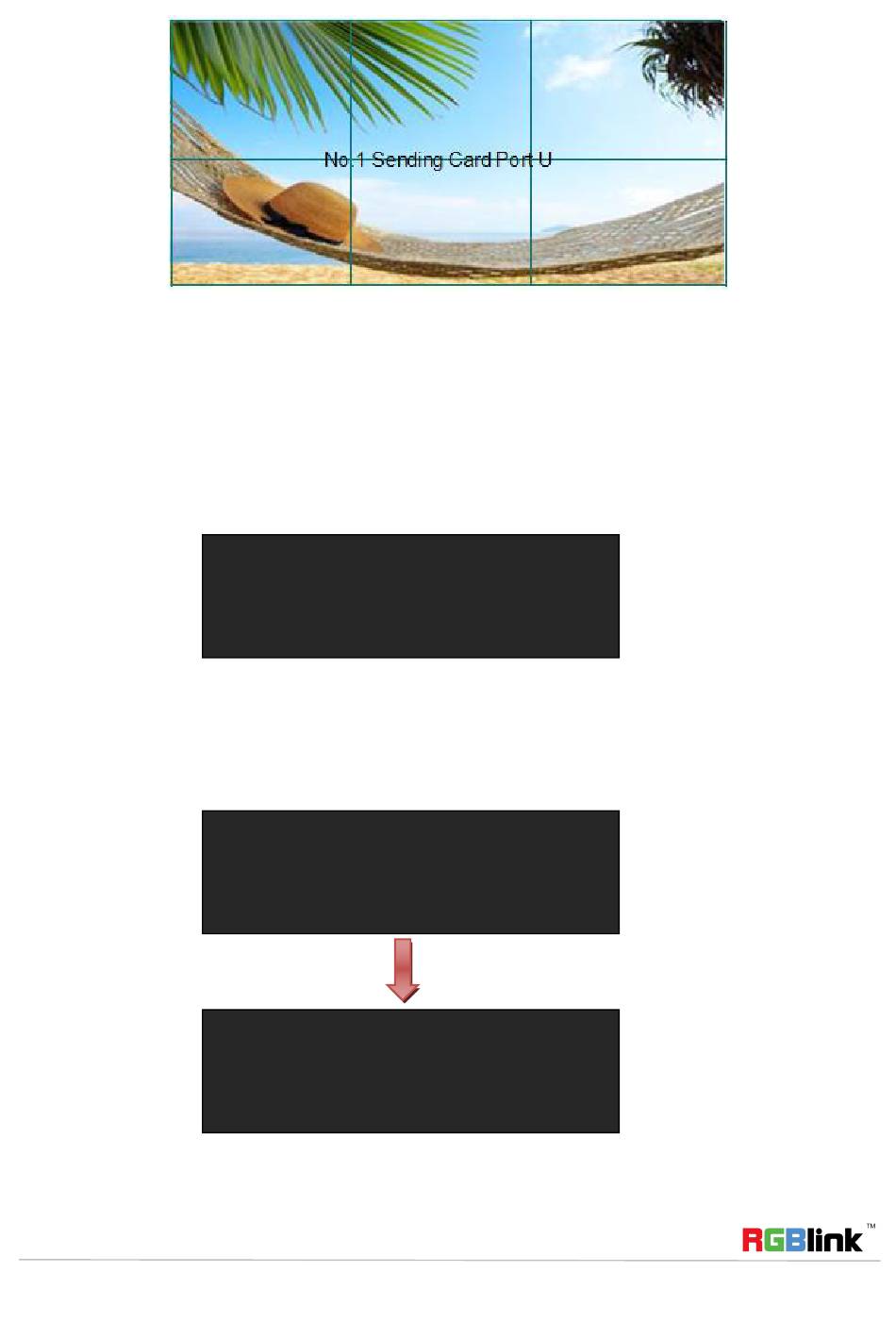

(4) Connect Port U1 of No.1 Sending Card to LED screen, the settings are same as Step 4 to Step 9 of "Connect
the Port D or Port U of One Sending Card to LED Screen".
(5) Connect Port D1 of No.1 Sending Card to LED screen, setting steps are as follows:
a. Turn the knob, and select <LED MANAGEMENT>:
b. Push the knob to confirm, turn the knob, select <SENDING CARD TYPE> in <QUICK CONNECTION> option,
push the knob to confirm, turn the knob, select the sending card type, for example, select Linsn (VENUS
X1 supports Linsn and Colorlight sender card, for Nova sender card, it only support brightness and
Gamma adjustment). Shown as follows:
c. Turn the rotary knob, select <SENDING CARD NO.>, push the knob to confirm. Turn the knob and choose
"No.1", push the knob to confirm. Shown as follows:
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
SYSTEM
->LED MANAGEMENT
LANGUAGE/语言
FACTORY RESET
->QUICK CONNECTION
ADVANCED
*SENDING CARD TYPE
SENDING CARD NO.
OUTPUT FORMAT
QUICK CONNECTION
>>
>>
ENG
>>
>>
>>
LINSN
No.2
>>
>>
11
