Topology example with Safety Integrated functions
Note
Additional notes on Safety Integrated functions are available under:
SINAMICS S120 Safety Integrated Function Manual.
Topology with SINAMICS S120 booksize and six plus two axes

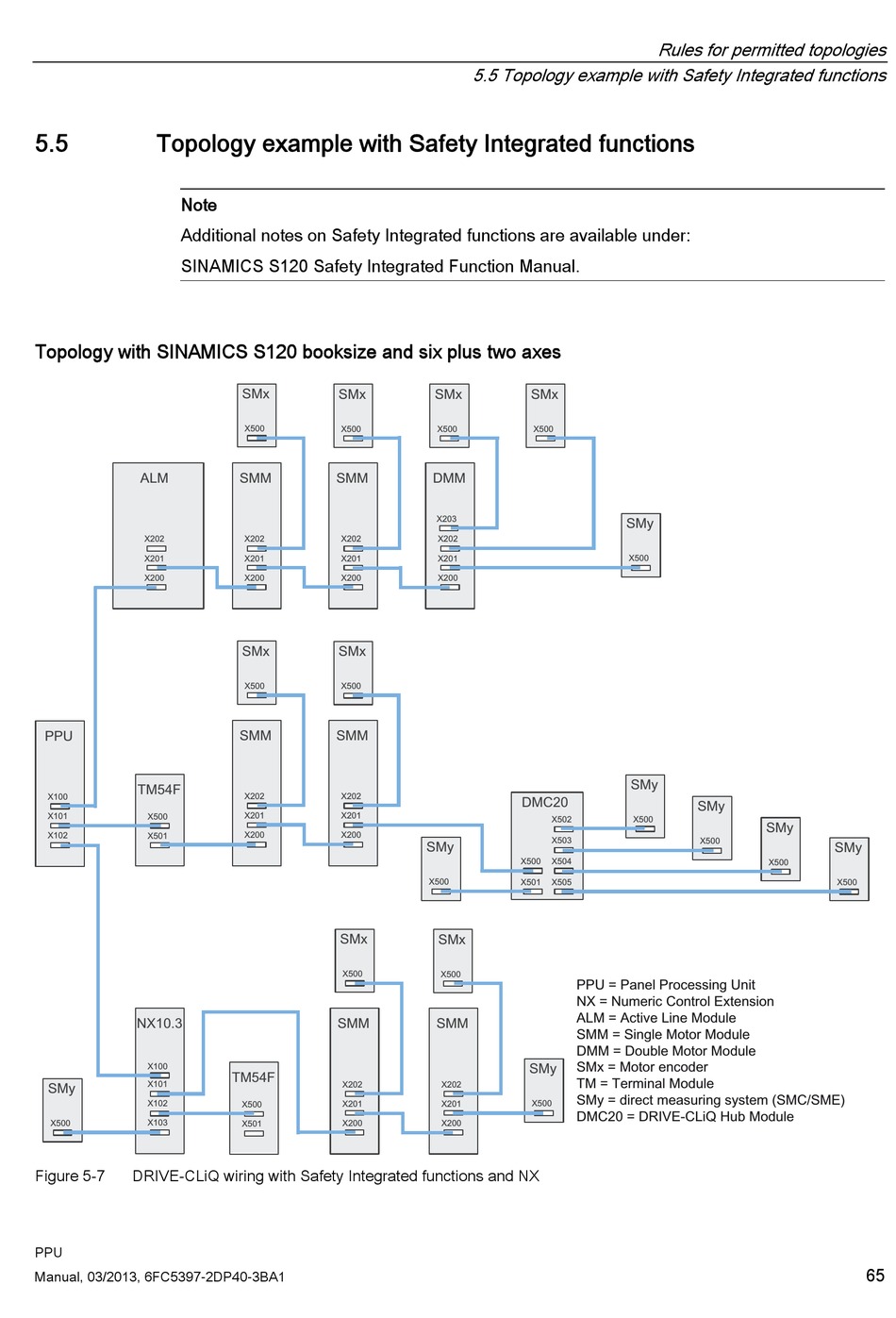

Figure 5-7
DRIVE-CLiQ wiring with Safety Integrated functions and NX
PPU
Manual, 03/2013, 6FC5397-2DP40-3BA1
5.5 Topology example with Safety Integrated functions
Rules for permitted topologies
