Greensource CDi Series SM Model

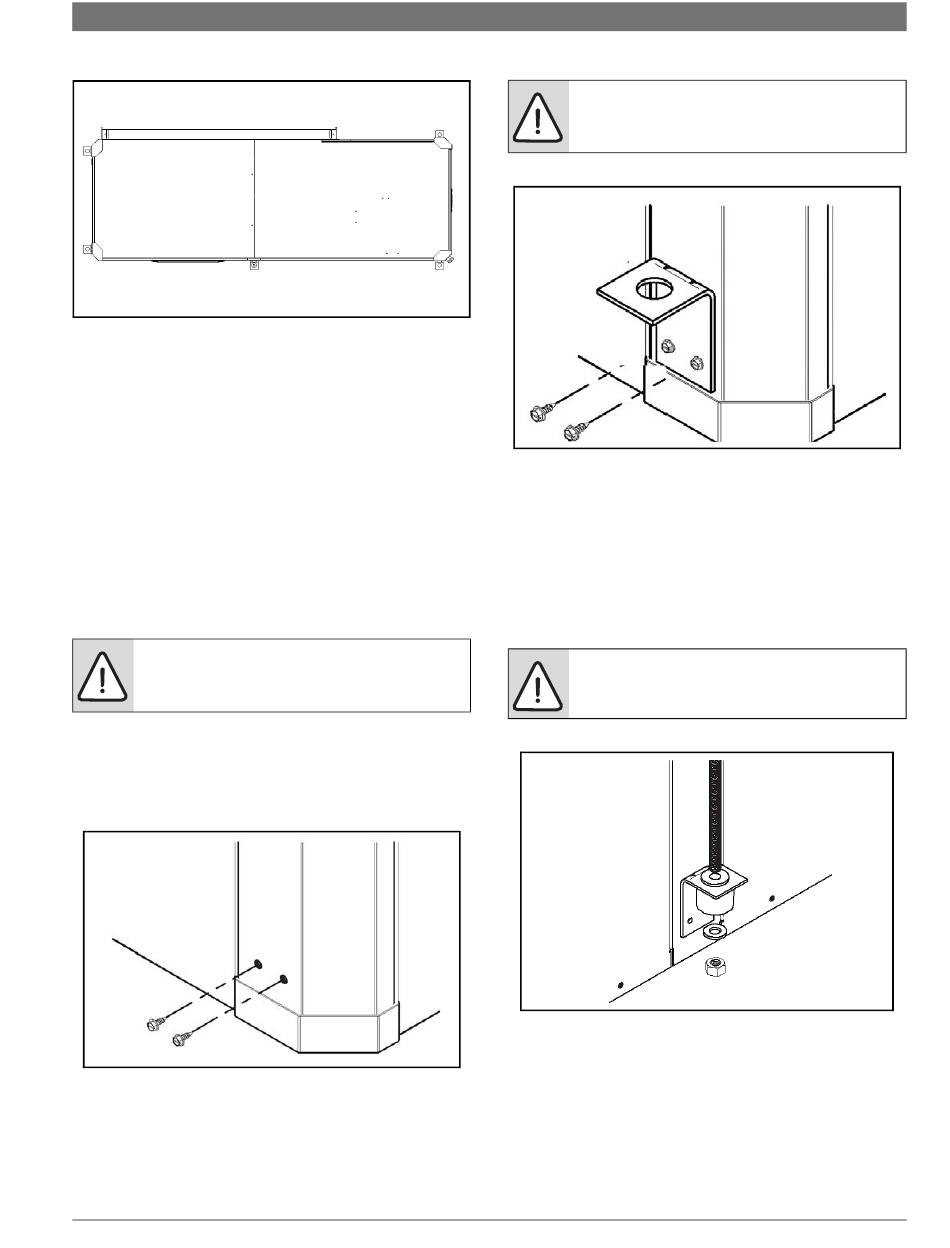

Fig. 45
This kit includes the following:
(5) Brackets
(5) Rubber Vibration Isolators
(8) Screws: #10 x 1/2 (not used for these models)
(10) Bolts: 1/4–28 x 12" Hex bolt
The following are needed and are to be field
provided:
Threaded rod (3/8" max. dia.)
Hex nuts
Washers (1-3/4" min. O.D.)
WARNING: Follow all applicable codes and
requirements when hanging this unit and
selecting the threaded rod material, etc.
1. Remove and discard factory provided screws
from locations where hanging brackets will be
installed as shown in Fig. 46.
Fig. 46
2. Mount the five brackets to unit corner post using
the bolts provided in the kit as shown in
Fig. 47.
Greensource CDi Series SM Model
WARNING: Do NOT reuse screws removed
from the unit in Step #1 to mount the
hanging brackets to the unit.
Fig. 47
3. Install rubber grommet onto the brackets as
shown in Fig. 48.
4. Hang the unit and assemble the field-provided
threaded rod, nuts, and washers on to the
brackets as shown in Fig. 48.
WARNING: The rods must be securely
anchored to the ceiling.
Fig. 48
Subject to change without prior notice
Hanging Bracket Kit | 17
8733819578 (2019/02)
