14 | Return and Discharge Air Duct Flanges Preparation

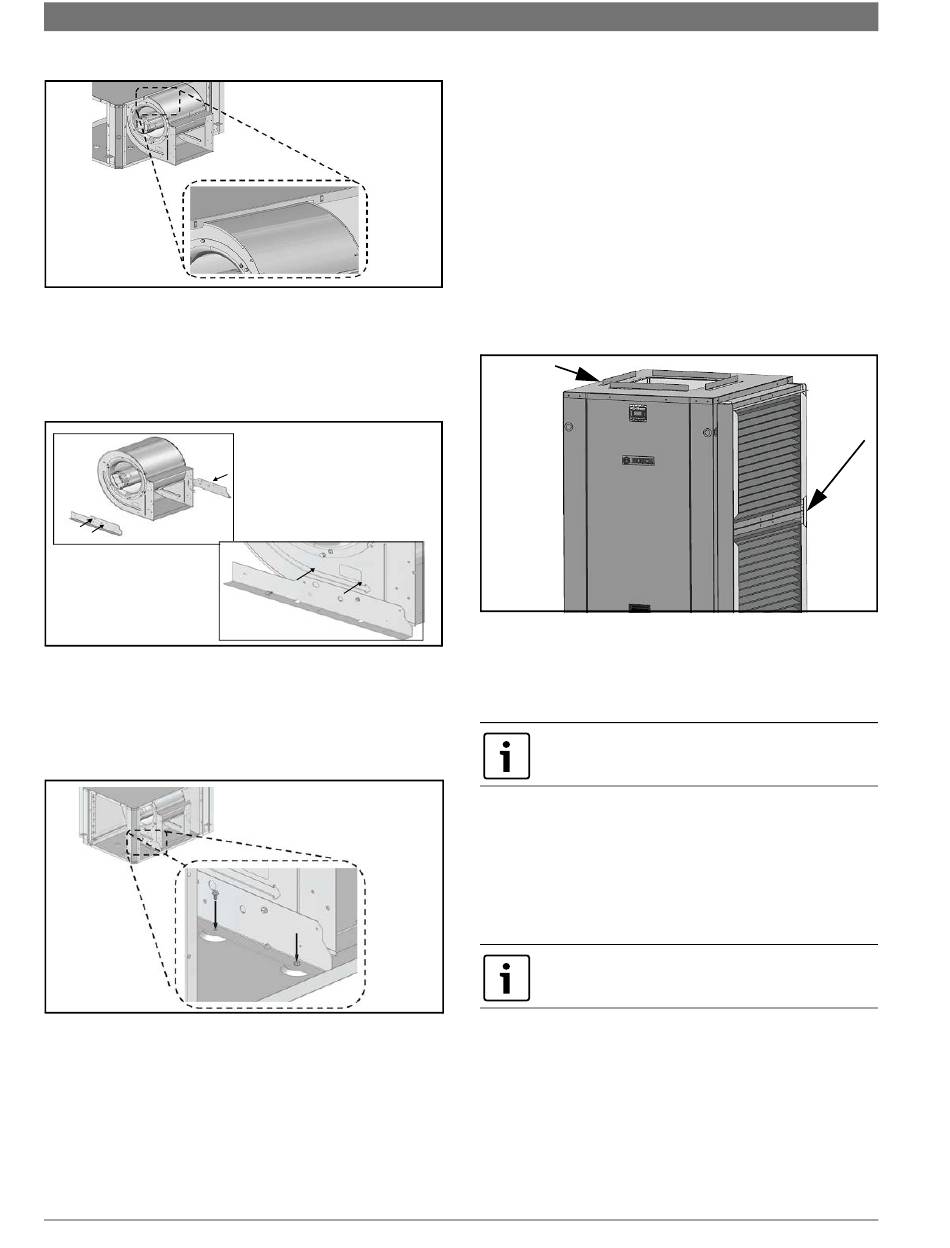

Fig. 35
13. Reinstall the two vertical blower brackets in
the new horizontal position using four screws.
(See Fig. 36.)
Fig. 36
14. Secure the two horizontal blower brackets to
the unit base using four screws. (See
Fig. 37.)
Fig. 37
15. Reconnect blower motor wiring and ground
wire.
16. Install the new blower panel from the
accessory kit.
8733819578 (2019/02)
Vertical (VT) Blower Configuration
The Vertical (VT) configuration water source heat
pump is a dedicated up-flow configuration.
Available from the factory in left-hand and right-
hand return air configurations.
RETURN AND DISCHARGE AIR DUCT
FLANGES PREPARATION
Return and Discharge Air Duct Flanges are shipped
unfolded. Flange bend lines are perforated
allowing easy bending using standard sheet metal
pliers or channel locks. (See Fig. 38.)
Fig. 38
Fold the duct flanges outwards along the
perforated lines.
Bend flanges one at a time.
CORNER CAP INSTALLATION
INSTRUCTIONS (FOR HZ UNITS ONLY)
Each corner cap is stamped with one the following
identifiers: T, T1,T2 B, B1, B2, A.
Corner cap installation only applies to HZ units.
VT units do not require corner caps.
1. Identify Letter code on each corner cap. (See
Fig. 39.)
Subject to change without prior notice
