Greensource CDi Series SM Model

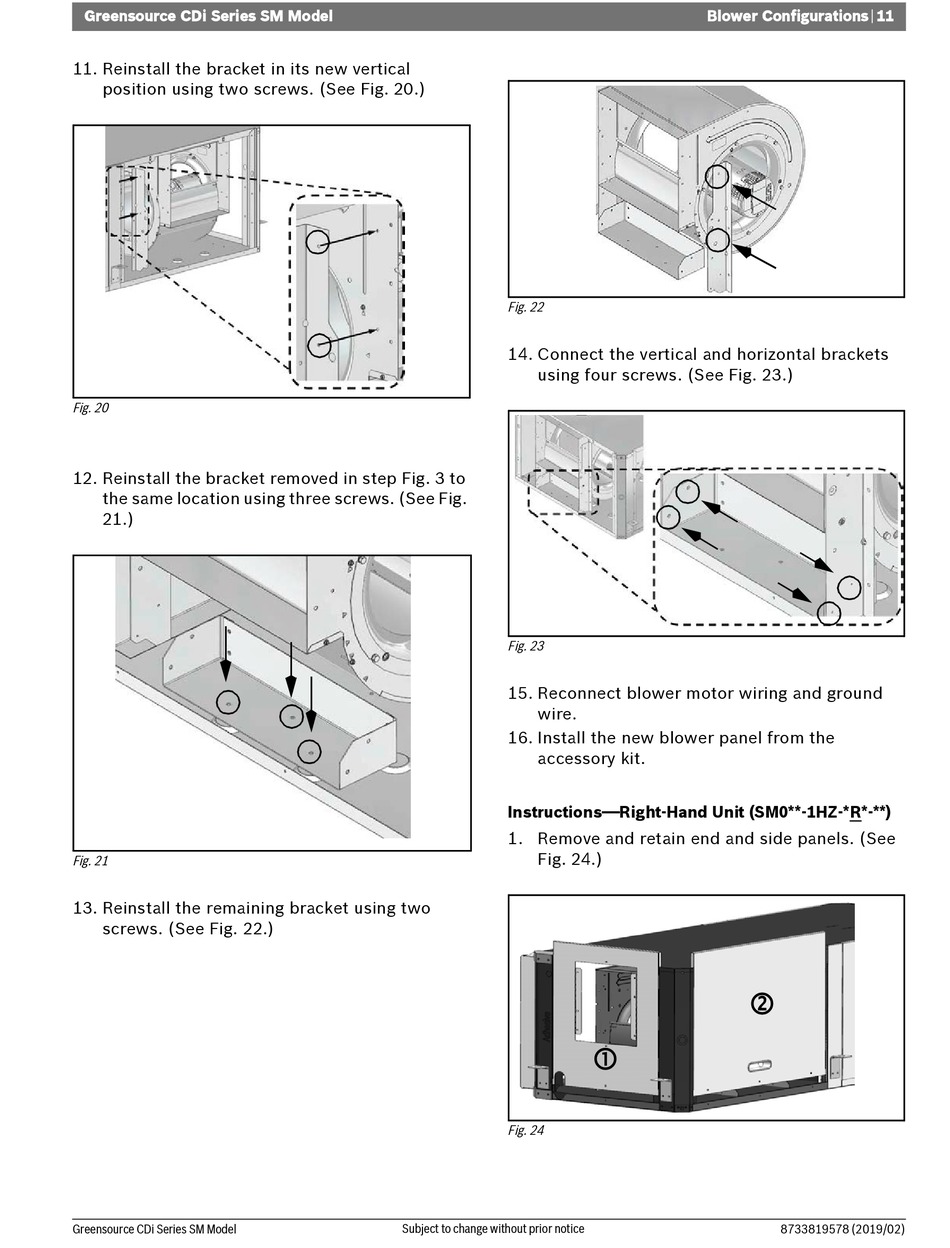

11. Reinstall the bracket in its new vertical
position using two screws. (See Fig. 20.)
Fig. 20
12. Reinstall the bracket removed in step Fig. 3 to
the same location using three screws. (See Fig.
21.)
Fig. 21
13. Reinstall the remaining bracket using two
screws. (See Fig. 22.)
Greensource CDi Series SM Model
Fig. 22
14. Connect the vertical and horizontal brackets
using four screws. (See Fig. 23.)
Fig. 23
15. Reconnect blower motor wiring and ground
wire.
16. Install the new blower panel from the
accessory kit.
Instructions—Right-Hand Unit (SM0**-1HZ-*R*-**)
1. Remove and retain end and side panels. (See
Fig. 24.)
Fig. 24
Subject to change without prior notice
Blower Configurations | 11
8733819578 (2019/02)
