WebRelay-10 Users Manual
2.4 WebRelay-10 Setup Pages
WebRelay-10 is configured using a web browser. To access the setup pages, enter the following URL in
the address bar of a web browser:
http://{ipaddress}/setup.html
For example, using the default IP address, enter:
http://192.168.1.2/setup.html
After the page is requested, a password prompt will appear. Enter the username and password. The
default username is admin and the default password is webrelay (password is case sensitive).
2.4.1 Main Tab
This is the initial page that is displayed when setup.html is entered into the address bar of the browser. It
displays model and serial number information, and allows the user to select the desired temperature
units.

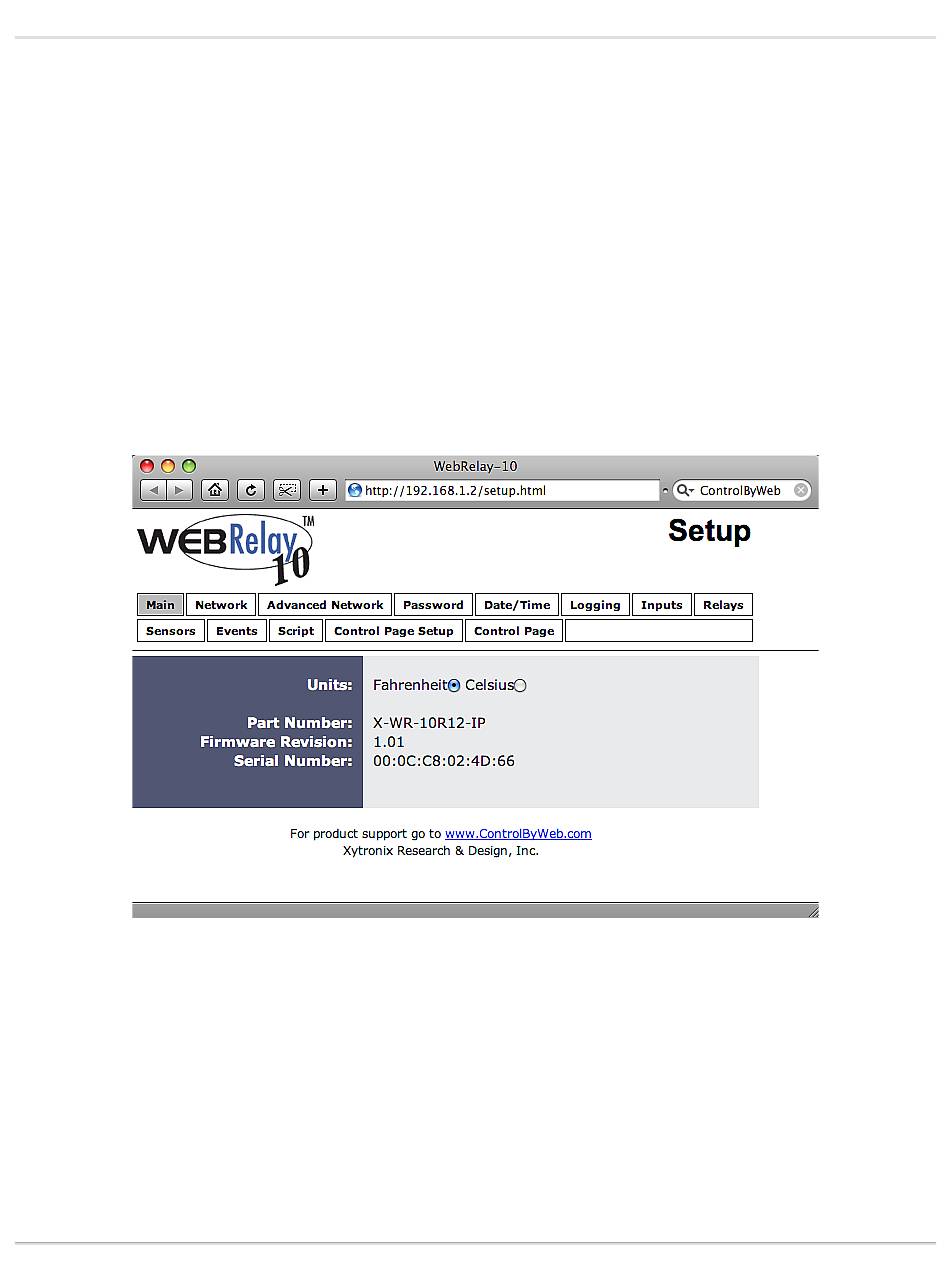

Figure 2.4a - Main Tab
Units (WebRelay-10 Plus™ only)
This allows the user to select between the temperature units of Fahrenheit and Celsius. All settings
entered and displayed on subsequent pages will be in the units selected.
Part Number
This is the full model number of WebRelay-10.
Firmware Revision
This is the current product revision of the unit's firmware.
Serial Number
This is the serial number of this unit. The serial number is also the MAC address of the unit.
