Installation and Setup
Temperature/Humidity Sensor Connection (WebRelay-10 Plus™ only)
Temperature and/or humidity sensors can be used for monitoring environmental conditions. The digital
sensors use a one-wire data bus, which allows up to eight sensors to share the same terminals (+5V,
Ground, Data). Every sensor on the one-wire bus is assigned a unique serial number when it is
manufactured. That number is used to address the device during communication.
The sensors have three wires; the wire color is show in the table below.

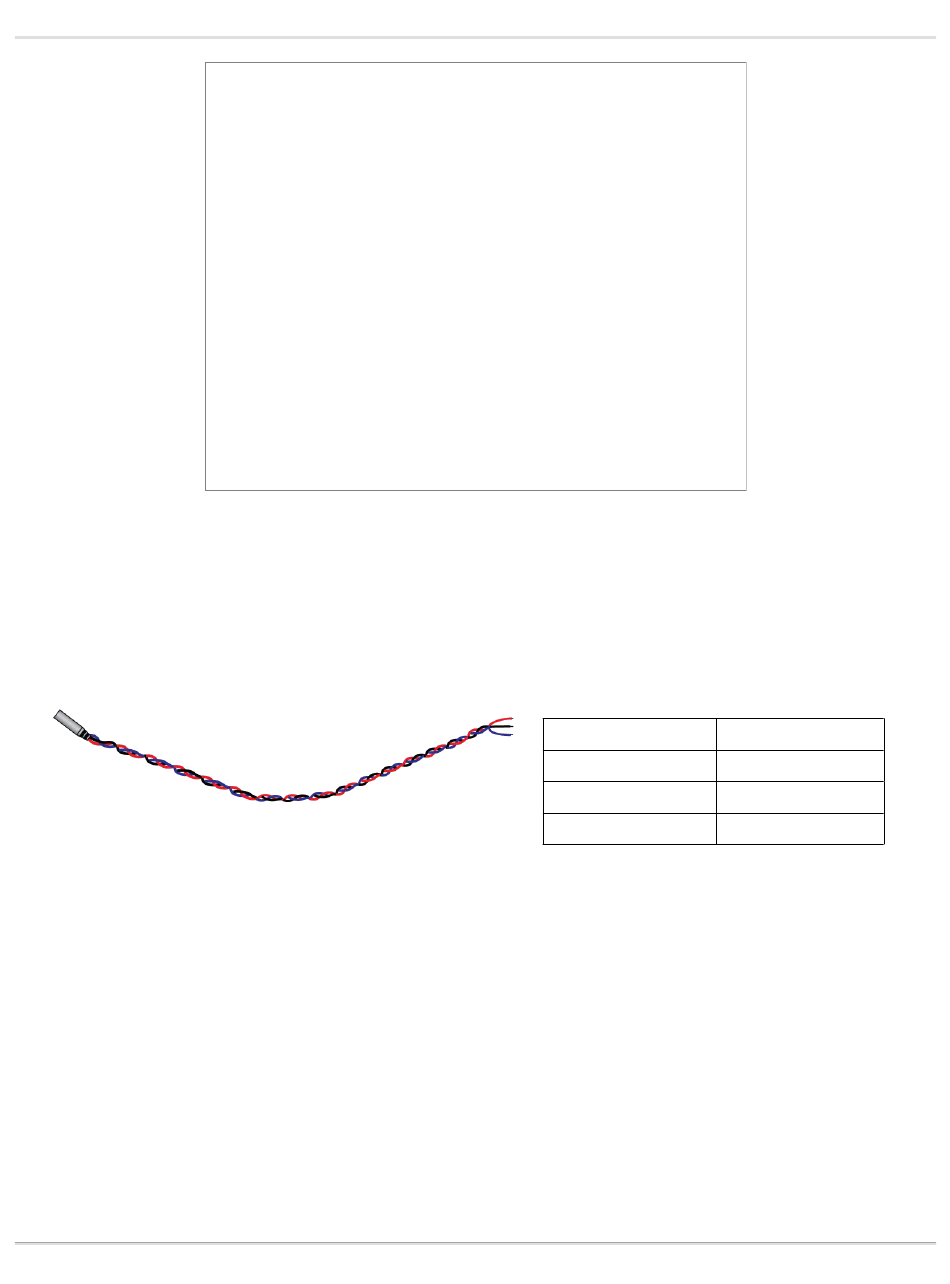

Figure 2.2f - Temperature Sensor
Multiple sensors can be connected in two ways, directly connected to the unit (star topology) or "daisy
chained" (linear topology) as shown in Figure 2.2g.
page 14
Figure 2.2e - Input Connector
WebRelay-10 Users Manual
Sensor Wire Color Connection
Red Vout
Black Gnd
Blue (or White) Data
