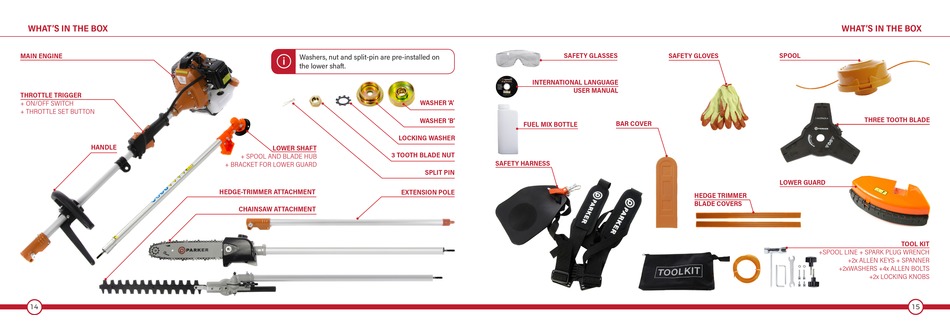

WHAT'S IN THE BOX
OPERATION
MAIN ENGINE
THROTTLE TRIGGER
+ ON/OFF SWITCH
+ THROTTLE SET BUTTON
HANDLE
14
Washers, nut and split-pin are pre-installed on
i
the lower shaft.
LOCKING WASHER
LOWER SHAFT
3 TOOTH BLADE NUT
+ SPOOL AND BLADE HUB
+ BRACKET FOR LOWER GUARD
HEDGE-TRIMMER ATTACHMENT
CHAINSAW ATTACHMENT
SAFETY GLASSES
INTERNATIONAL LANGUAGE
USER MANUAL
WASHER 'A'
WASHER 'B'
FUEL MIX BOTTLE
SAFETY HARNESS
SPLIT PIN
EXTENSION POLE
SPOOL
SAFETY GLOVES
BAR COVER
LOWER GUARD
HEDGE TRIMMER
BLADE COVERS
WHAT'S IN THE BOX
THREE TOOTH BLADE
TOOL KIT
+SPOOL LINE + SPARK PLUG WRENCH
+2x ALLEN KEYS + SPANNER
+2xWASHERS +4x ALLEN BOLTS
+2x LOCKING KNOBS
15
