ASSEMBLY
1

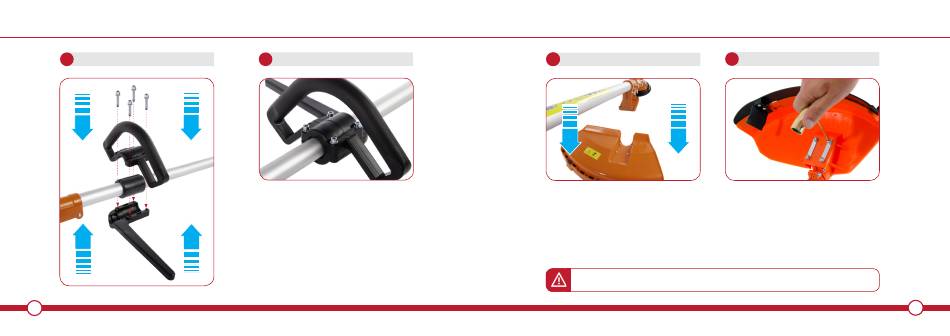

HANDLE ASSEMBLY
22
2
POSITIONING HANDLE ASSEMBLY
The handle assembly is made up of three parts,
the upper handle, the shaft damper, and the lower
handle.
The handle is held together with 4x allen bolts that
are provided within the multi-tool box. Position the
handle on the shaft connected to the engine in the
most comfortable position for the user.
3
1
ATTACH THE LOWER GUARD
Attach the guard to the lower shaft using the
Locate the guard on to the lower shaft using the 4x
screws and tools provided.
screws provided.
Be sure not to over-tighten the screws as this
could cause damage.
NOTE: Over-tightening the bolts/screws can cause damage to the bolt/screw and/or the machine.
ASSEMBLY
4
ATTACH THE LOWER GUARD
23
