ASSEMBLY
5

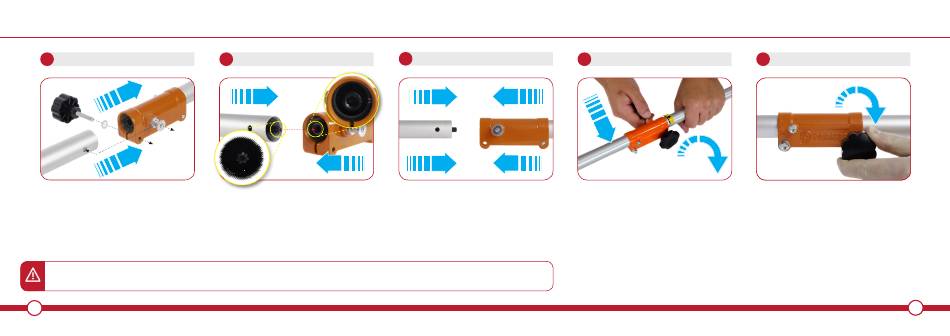

SHAFT TO JOINT ASSEMBLY
Insert the locking knob into the shaft connector.
Pull and hold the locating pin while securing the
lower shaft into the joint
WARNING! Always make sure that attachments are in place correctly and tightened sufficiently before use.
NOTE: This process can be repeated when attaching the hedge trimmer attachment, chainsaw attachment and also the extension pole.
NOTE: Take extra care aligning the splines within the shaft. If the splines are not connected correctly the machine will not function in the manner intended.
24
6
ALIGN THE SPLINES
When inserting the shaft into the joint pay Once you are satisfied that the splines and the
particular attention to the splines within the shaft. locating pin hole are aligned sufficiently, connect
the shaft to the joint.
It is essential that the splines are connected
correctly for the machine to operate.
7 8
JOIN THE SHAFTS
Release the pin and rotate the lower shaft until the
joint is locked into position.
9
RELEASE LOCATING PIN
Secure the joint by tightening the knob.
To tighten the knob turn in a clockwise direction.
ASSEMBLY
TIGHTEN KNOB
