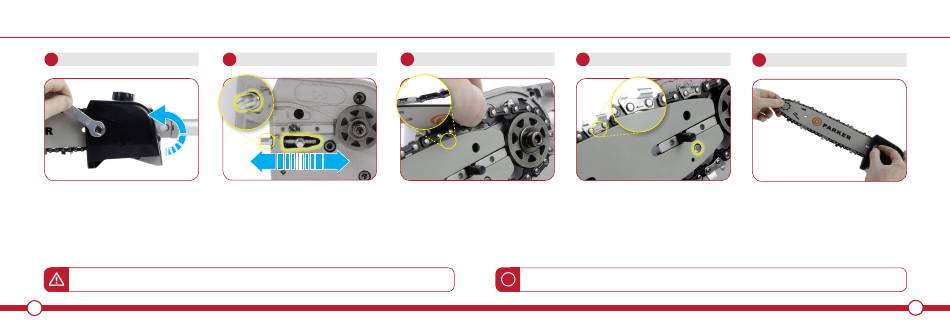

FITTING THE CHAIN, BAR & TENSIONING CHAIN
1
REMOVE SPROCKET COVER
With the engine stopped, remove the 10mm nut
by turning it anti-clockwise.
Remove the drive sprocket cover.
WARNING! Take care when handling the chain as it is sharp. Use appropriate safety gloves to prevent injury.
36
2
ADJUST TENSION SCREW
Adjust the chain tension adjustment screw until
Loosely lay the saw chain into the groove on the
the tensioning pin is approximately in the midway bar start at the nose of the bar.
position.
Make sure the sprocket teeth sit correctly
between the chain links
3 4
LOOSELY FIT CHAIN
Fit the bar with the chain on to the locating stud.
Adjustment of the tensioner may be required to
ensure the bar fits correctly over the stud.
The chain links on the top of the bar must have the
arrow pointing away from the housing.
i
NOTE: When the chain begins to wear, the cutting performance will reduce. Sharpen or replace it with an identical one.
FITTING THE CHAIN, BAR & TENSIONING CHAIN
5
FIT CHAIN & GUIDE BAR REPLACE SPROCKET COVER
Replace the drive sprocket cover.
Hold the tip of the bar up, the nut should be finger
tight at the most.
37
