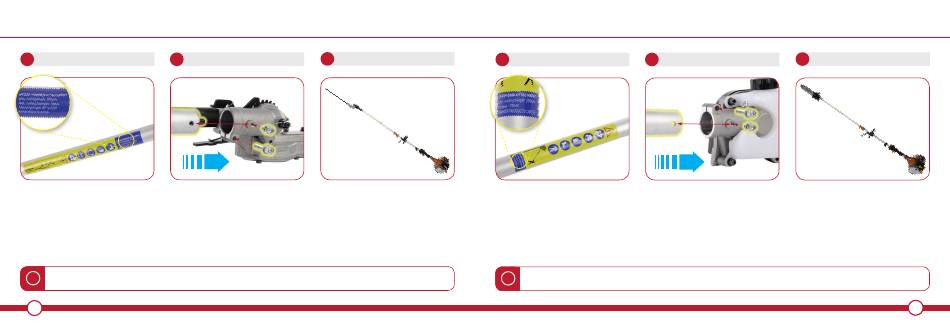

INSTALLING HEDGE TRIMMER ATTACHMENT

1 2
HEDGE TRIMMER POLE ATTACH CUTTING HEAD TO POLE
Locate the Hedge Trimmer attachment pole Insert the pole into the attachment.
which can be identified by the identification
sticker. The short allen bolt should locate through
the attachment housing and into the locator
hole on the side of the attachment pole.
The long allen bolt secures the attachment
to the pole
NOTE: When attaching the hedge trimmer cutting head be sure to use the corresponding shaft when connecting it to the machine.
i
CAUTION! It is vital to use the correct shaft for the cutting heads for the machine to function correctly.
32
3
ATTACH TO THE MACHINE
Attach the pole with cutting head to the
Locate the Chainsaw attachment pole which
machine. can be identified by the identification sticker.
(Follow steps 5, 6 & 7 within "Assembly" on
Remove the red shaft protector from the
how to attach to the machine.)
bottom of the Chainsaw Attachment pole.
1 2
CHAINSAW POLE ATTACH CUTTING HEAD TO POLE
Insert the pole into the attachment.
The short allen bolt should locate through
the attachment housing and into the locator
hole on the side of the attachment pole.
The long allen bolt secures the attachment
to the pole
NOTE: When attaching the hedge trimmer cutting head be sure to use the corresponding shaft when connecting it to the machine.
i
CAUTION! It is vital to use the correct shaft for the cutting heads for the machine to function correctly.
INSTALLING CHAINSAW ATTACHMENT
3
ATTACH TO THE MACHINE
Attach the pole with cutting head to the
machine.
(Follow steps 5, 6 & 7 within "Assembly" on
how to attach to the machine.)
33
