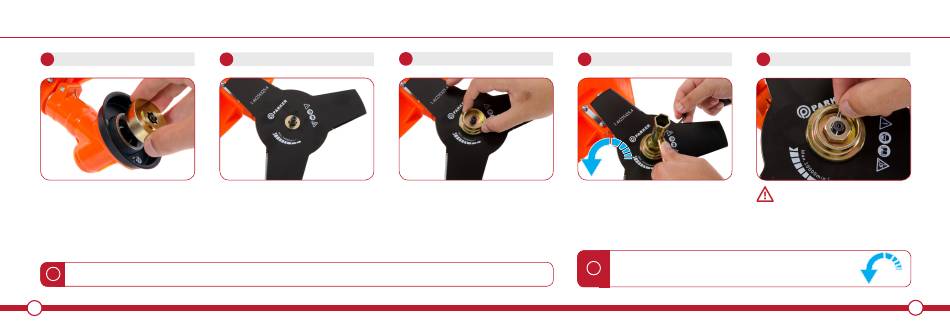

INSTALLING THE 3 TOOTH BLADE
1
INSTALL LOWER WASHER
Install washer "A" as illustrated above. Align the
hole in the washer with the hole in the spool collar.
i
NOTE: Please be aware that Washer "A", Washer "B" and 3 Tooth Blade Nut (Locking Washers) may come pre-installed on the hub of the machine.
28
2
ATTACH THE BLADE
Place the three tooth blade so the centre hole sits
within washer "A".
It is important that the blade sits correctly
within washer "A" and not in an off-centered
position which can cause excessive vibration
and premature damage to the lower shaft.
3
SECURE UPPER WASHER
Install washer "B" as illustrated above to secure Lock the axle by placing the allen key inside the
the blade to the shaft. locating hole of the collar and tighten the locking
nut using the wrench provided, turning
anti-clockwise until secured tightly.
(Follow steps 8 & 9 within "Assembly" on how to
lock the axle.)
4 5
TIGHTEN LOCKING NUT
Place the split pin (where applicable) inside the
thread to prevent the nut coming loose.
NOTE: The hub is reverse threaded so to tighten the nut you will have to turn
it in an anti-clockwise direction to ensure that it is secured in place along with
i
the chosen cutting attachment. To loosen the nut use the wrench provided to
turn it in a clockwise direction.
INSTALLING THE 3 TOOTH BLADE
SECURE THE NUT
IMPORTANT!
