Parker PGMT-5200 Owner's Manual

Multi tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

CLICK TO CHANGE TEXT
MULTI TOOL
EN
PGMT-5200
OWNERS MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGMT-5200 and is the answer not in the manual?

Questions and answers

Sian Maplesden
April 21, 2025

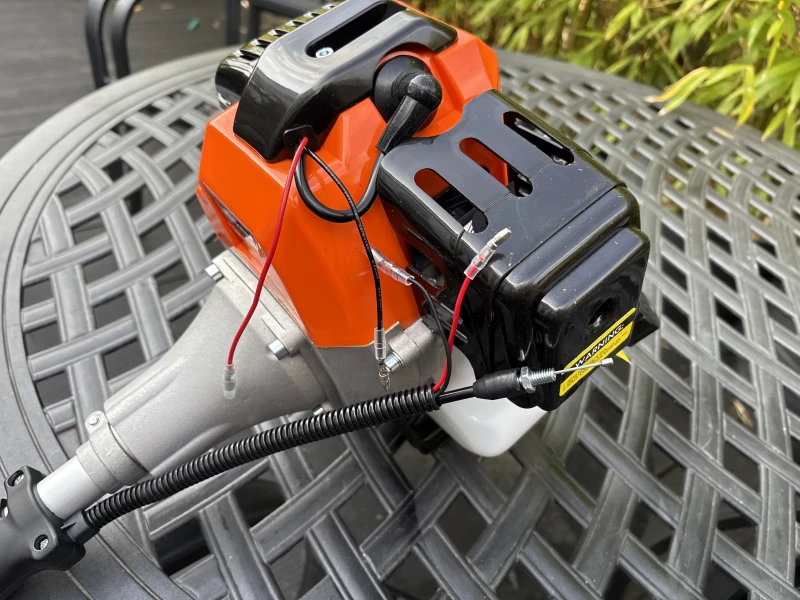

Hi just putting the PGMT-5200-The throttle connection is not attached to anything and there are no illustration showing where it should attached too ? Please advice

User image 68066f72c72fa
0

Summary of Contents for Parker PGMT-5200

  • Page 1 CLICK TO CHANGE TEXT MULTI TOOL PGMT-5200 OWNERS MANUAL...

  • Page 2: Table Of Contents

    INSTALLING THE SPOOL ................30-31 OPERATION ........................ 60-66 INSTALLING HEDGE TRIMMER ATTACHMENT ......32 TROUBLE SHOOTING ..................68-73 All photographs and drawings in this manual are supplied by Parker Products Ltd. to help you INSTALLING CHAINSAW ATTACHMENT ..........MAINTENANCE & CARE .................. 74-76 with the operation and maintenance of the product.

  • Page 3: General Safety

    GENERAL SAFETY GENERAL SAFETY For safe operation and maintenance symbols are moulded in relief on the machine or shown on a label. • WARNING! Never allow children or anyone who does not fully understand the directions given in the manual to use the machine. WARNING •...

  • Page 4: Safety Symbols

    SAFETY SYMBOLS SAFETY SYMBOLS This symbol, before a safety comment, indicates a PRECAUTION, a WARNING or a DANGER. Ignoring Keep all children, bystanders WARNING! Never operate this power tool WARNING! To reduce the risk of injury, this warning can lead to an accident for yourself or for &...
  • Page 5 SAFETY SYMBOLS SAFETY SYMBOLS WARNING! Use of this product can pose a danger to wildlife. Check areas, particularly WASTE ELECTRICAL PRODUCTS SHOULD NOT BE long grass and under bushes for signs of life REMOVE SPARK PLUG LEAD BEFORE DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE WARNING! Spinning cutting line.

  • Page 6: For Safe Operation

    When work is performed cutting attachment begins to rotate as soon as the engine is started answered herein, contact Parker Brand. impairs or that you might not be able to operate the product properly simultaneously by two or more persons, care should be taken to by putting the throttle trigger into the start position.
  • Page 7 3m or more away from where it was engine while the engine is in operation or immediately after contact Parker Brand. refuelled before turning on the engine. •...

  • Page 8: Whats In The Box

    WHAT’S IN THE BOX WHAT’S IN THE BOX OPERATION SAFETY GLASSES SPOOL MAIN ENGINE SAFETY GLOVES Washers, nut and split-pin are pre-installed on the lower shaft. INTERNATIONAL LANGUAGE USER MANUAL THROTTLE TRIGGER + ON/OFF SWITCH WASHER ‘A’ + THROTTLE SET BUTTON THREE TOOTH BLADE WASHER ‘B’...

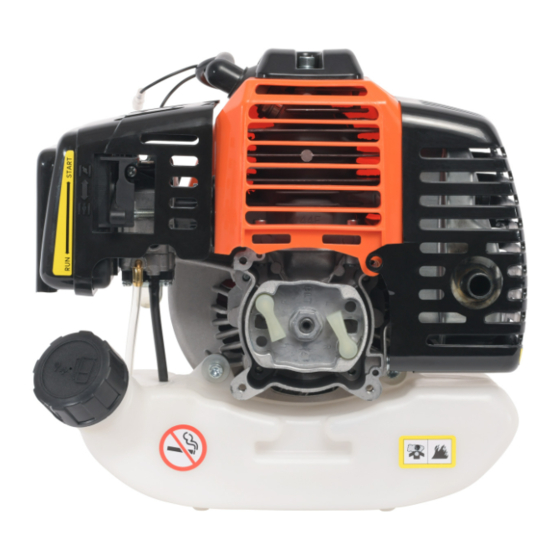

  • Page 9: Product Features

    PRODUCT FEATURES PRODUCT FEATURES ENGINE COIL PLUG THROTTLE TRIGGER + ON/OFF SWITCH LOOP CHOKE EXHAUST HANDLE SPLIT SHAFT HARNESS POINT FUEL CAP RECOIL CONNECTOR JOINT...
  • Page 10 PRODUCT FEATURES PRODUCT FEATURES CHAIN OIL SPROCKET CHAIN GREASE ADJUSTMENT ADJUSTMENT COVER NIPPLES MECHANISM LEVER GREASE OIL FLOW TENSION BLADES ADJUSTMENT HANDLE NIPPLES SCREW SCREW LOCKING LEVER...

  • Page 11: Before Using The Multi-Tool

    BEFORE USING THE MULTI TOOL BEFORE USING THE MULTI TOOL INSPECT THE MULTI TOOL LOCKING WASHERS NOTICE NOTICE THIS FUEL MUST BE MIXED WITH 2 STROKE OIL AT A 40:1 RATIO (GASOLINE:OIL) Check the Multi Tool is not damaged and all The locking washers may come pre-installed on the 40:1 components are in good working order before use.

  • Page 12: Assembly

    ASSEMBLY ASSEMBLY HANDLE ASSEMBLY POSITIONING HANDLE ASSEMBLY ATTACH THE LOWER GUARD ATTACH THE LOWER GUARD The handle assembly is made up of three parts, Attach the guard to the lower shaft using the Locate the guard on to the lower shaft using the 4x the upper handle, the shaft damper, and the lower screws and tools provided.
  • Page 13 ASSEMBLY ASSEMBLY SHAFT TO JOINT ASSEMBLY ALIGN THE SPLINES JOIN THE SHAFTS RELEASE LOCATING PIN TIGHTEN KNOB Secure the joint by tightening the knob. Insert the locking knob into the shaft connector. When inserting the shaft into the joint pay Once you are satisfied that the splines and the Release the pin and rotate the lower shaft until the particular attention to the splines within the shaft.

  • Page 14: Installing The 3 Tooth Blade

    ASSEMBLY INSTALLING THE 3 TOOTH BLADE The Hub is reverse threaded ALIGN HUB LOCK HUB turn in an anti-clockwise direction to tighten. Align the holes on the collar, washer "A" and the Lock the axle by placing the allen key inside the axle.
  • Page 15 INSTALLING THE 3 TOOTH BLADE INSTALLING THE 3 TOOTH BLADE INSTALL LOWER WASHER ATTACH THE BLADE SECURE UPPER WASHER TIGHTEN LOCKING NUT SECURE THE NUT Install washer “B” as illustrated above to secure Lock the axle by placing the allen key inside the IMPORTANT! Install washer “A”...

  • Page 16: Installing The Spool

    INSTALLING THE SPOOL INSTALLING THE SPOOL INSTALL LOWER WASHER ATTACH SPOOL HOUSING Install washer “A” as illustrated above. Align the Lock the axle by placing the allen key inside the washer with the hole on the spool collar. locating hole of the collar and wind the spool onto the thread by turning anti-clockwise.

  • Page 17: Installing Hedge Trimmer Attachment

    INSTALLING HEDGE TRIMMER ATTACHMENT INSTALLING CHAINSAW ATTACHMENT HEDGE TRIMMER POLE ATTACH CUTTING HEAD TO POLE ATTACH TO THE MACHINE ATTACH TO THE MACHINE CHAINSAW POLE ATTACH CUTTING HEAD TO POLE Attach the pole with cutting head to the Attach the pole with cutting head to the Locate the Hedge Trimmer attachment pole Insert the pole into the attachment.

  • Page 18: Adjusting Hedge Trimmer Angle

    ADJUSTING HEDGE TRIMMER ANGLE HEDGE TRIMMER GEARBOX LUBRICATION ANGLE ADJUSTMENT LEVER ADJUSTMENT & LOCK HEDGE TRIMMER GREASE NIPPLES ADD GREASE TO HEDGE TRIMMER LOCKING LEVER Once the cutting head is adjusted to the Connect a compatible grease gun to the gearbox With the engine stopped, grip the Whilst still holding the angle adjustment The components within the Hedge Trimmer...

  • Page 19: Fitting The Chain, Bar & Tensioning Chain

    FITTING THE CHAIN, BAR & TENSIONING CHAIN FITTING THE CHAIN, BAR & TENSIONING CHAIN LOOSELY FIT CHAIN REMOVE SPROCKET COVER ADJUST TENSION SCREW FIT CHAIN & GUIDE BAR REPLACE SPROCKET COVER Adjust the chain tension adjustment screw until With the engine stopped, remove the 10mm nut Loosely lay the saw chain into the groove on the Fit the bar with the chain on to the locating stud.

  • Page 20: Chainsaw Gearbox Lubrication

    FITTING THE CHAIN, BAR & TENSIONING CHAIN CHAINSAW GEARBOX LUBRICATION CHECK CHAIN TENSION SECURE SPROCKET COVER CHAINSAW GREASE NIPPLES ADD GREASE TO CHAINSAW ADJUST CHAIN TENSION When correctly adjusted it should be Turn the chain tension adjustment screw Once satisfied with the chain tension The components within the gearbox have to work Connect a compatible grease gun to the chainsaw clockwise until the chain pulls tight on the...

  • Page 21: Chain Oil

    CHAIN OIL CHAIN OIL FILL WITH OIL CHAIN OIL REMOVE OIL CAP REPLACE OIL CAP ADJUST OIL FLOW Turn the oil reservoir cap anti-clockwise to remove With the engine stopped, adjust the oil flow A continuous flow of oil on to the bar and Fill the reservoir with chain oil.

  • Page 22: Installing The Pole Extension

    Insert the locking knob into the shaft connector. The extension pole is only designed to be used The Pole Extension is located in your PGMT-5200 Release the pin and rotate the lower shaft until the Secure the joint by tightening the knob.

  • Page 23: The Harness

    The harness is easily adjusted by utilizing CAUTION: For your own safety, comfort and for best results always use the PGMT-5200 with the harness provided the strap adjusters.
  • Page 24 THE HARNESS REPLACE LOWER HOOK INSERT RELEASE PIN QUICK RELEASE HOOK THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK Easily attach and release the machine from After use of the quick release hook it will Place the release pin through the slot in the the harness using the quick release hook.

  • Page 25: Starting The Engine

    STARTING THE ENGINE STARTING THE ENGINE FILL THE TANK PRIME THE CARBURETTOR OPEN CHOKE (WARM START) CLOSE CHOKE (COLD START) Remove the fuel cap and fill the tank to no more Prime the carburettor by repeatedly pressing the For cold engine starts close the choke by sliding For warm engine starts open the choke by sliding the lever upwards.
  • Page 26 STARTING THE ENGINE STARTING THE ENGINE SWITCH ON TENSION THE RECOIL START THE ENGINE (WARM START) START THE ENGINE (COLD START) Enable power to the spark plug by placing the on/ Place the unit on the ground and using your left Make sure that the choke is CLOSED 1.

  • Page 27: Stopping The Engine

    STOPPING THE ENGINE PREPARE TO STOP SWITCH OFF THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK Release the throttle trigger and let the engine idle Turn the engine off by placing the on/off switch to for 30 seconds. position “O” or "STOP" as illustrated above. This allows the engine to cool down and return to When restarting the engine after immediately optimum operating temperature.

  • Page 28: Open & Replace Spool Line

    OPEN & REPLACE SPOOL LINE OPEN & REPLACE SPOOL LINE TURN ANTI-CLOCKWISE TO ATTACH TO HUB SPOOL COVER SPOOL LINE SPOOL CARTRIDGE WEAR EYE PUSH TO UNCLIP PROTECTION SPOOL SPRING LINE FEED DIRECTION LINE FEED DIRECTION SPOOL BODY BUMP TO FEED LINE...
  • Page 29 OPEN & REPLACE SPOOL LINE OPEN & REPLACE SPOOL LINE OPEN THE SPOOL PREPARE WINDINGS REPEAT STEP 2 & 3 SECURE WINDING Open the spool by pressing one of the two clips The cartridge consists of two windings which Secure the winding inside one of the two lugs to Repeat steps 2 &...

  • Page 30: Adjusting Throttle Cable & Idling Speed

    ADJUSTING THROTTLE CABLE & IDLING SPEED ADJUSTING THROTTLE CABLE ADJUSTING IDLING SPEED THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK Your throttle cable may become slack after When the engine tends to stop frequently prolonged use and adjustment may be required. at idling mode, turn the idle speed adjuster clockwise.

  • Page 31: Operation

    When tilted slightly to your left. When replacing blade always be sure to use Parker the line becomes short, lightly tap the head on the 2. Sweep from left to right to avoid thrown debris.
  • Page 32 OPERATION OPERATION CONTROLLING BLADE THRUST How you can maintain control: TRANSPORTING THE UNIT Do not attempt to cut wind fallen trees or timber. • • When you finish cutting in one location and wish • Work systematically starting from the lowest Blade thrust can cause serious personal injury.
  • Page 33 OPERATION OPERATION • With the saw chain running at full speed, begin The chain is driven out, away from the head, along HEDGE TRIMMER WORKING TECHNIQUES WARNING! Use of this product can pose a danger cutting the underside of the branch using the the top of the guide bar.
  • Page 34 OPERATION Hedge Topping (above head height) Hedge Trimmer Blade Maintenance Although it is possible to cut the top of a tall hedge • Brush clean the cutting head thoroughly after in this method, using a safe platform to raise use. The blades must be cleaned of debris, sap yourself level with the hedge top is preferred and and moisture.

  • Page 35: Trouble Shooting

    To check for spark: Disconnect the spark plug wire. Reattach the spark only run at high speed Carburettor requires adjustment Contact Parker Brand plug wire and lay spark plug on metal cylinder. Pull the starter rope and No spark at half choke watch for spark at spark plug tip.
  • Page 36 TROUBLESHOOTING SPOOL/3 TOOTH BLADE TROUBLESHOOTING SPOOL/3 TOOTH BLADE PROBLEM POSSIBLE CAUSE SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION String welded to itself Lubricate with silicone spray Spool retainer hard to Clean threads and lubricate with grease - if no improvement, Screw threads dirty or damaged. turn replace spool retainer Spool will not unwind...
  • Page 37 TROUBLESHOOTING CHAINSAW ATTACHMENT TROUBLESHOOTING HEDGE TRIMMER ATTACHMENT PROBLEM POSSIBLE CAUSE SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION Chain does not move Check oil level in reservoir. Poor cutting Clogged blades. Stop engine. Clean and lubricate blade assembly. Insufficient chain lubrication. or is too tight. Check oil lines are not blocked.

  • Page 38: Maintenance & Care

    MAINTENANCE & CARE MAINTENANCE & CARE Check idle adjustment – the cutting attachment must not rotate Clean Carburettor Air Filter Adjust idle speed Replace Readjust electrode gap Check Spark Plug Manual fuel pump (if fitted) Replace after every 100 operating hours Have repaired by servicing dealer Visual inspection Check...

  • Page 39: Specifications

    MAINTENANCE & CARE SPECIFICATIONS Engine: 10mm Model 1E44F-5 Displacement 52,0cm3 Fuel Mixture (Gasoline 40: Oil 1) Carburettor Diaphragm type Ignition System Transistor Controlled Flywheel Magneto Spark Plug LD BM6A Fuel Tank Capacity (cm) 1.2 Litres Visual inspection (condition, leaks) Starter Recoil Complete machine Clutch...

  • Page 40: Guarantee

    A proof of purchase must be provided with the product. 2017 EC type-approved No: In case of any fault please return the product to Parker Products Ltd or an authorised repair agent. e11*97/68SA*2010/26*2712*00 (EUII Emission) Conforms to the following Directives: If any fault is caused by defective materials or quality of build, repair will be carried out free of charge.
  • Page 41 PGMT-5200 WWW.PARKERBRAND.CO.UK April 2019 Rev 1.1...
