ASSEMBLY
10

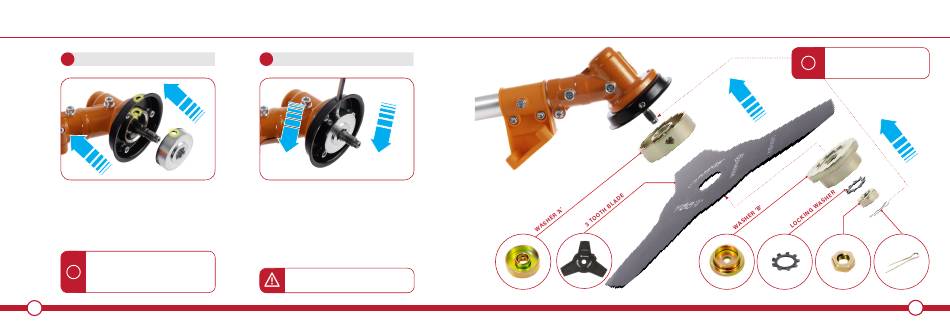

ALIGN HUB
Align the holes on the collar, washer "A" and the
axle. The areas highlighted above.
The purpose of this process is to enable tighten-
ing of the spool or 3 tooth blade nut by locking the
shaft, this is done by inserting the allen key through
the holes highlighted above.
Please be aware that Washer "A",
Washer "B" and 3 Tooth Blade Nut
i
(Locking Washers) may come
pre-installed on the hub of the machine.
26
11
LOCK HUB
Lock the axle by placing the allen key inside the
locating hole of the collar, through washer "A" and
into the axle. You can now wind the spool or 3
tooth blade nut onto the thread by turning it
anti-clockwise.
Please ensure that the spool is secure and closed
correctly and the 3 tooth blade is located centrally
on the hub prior to use.
WARNING! Ensure spool or blade is
attached correctly prior to use.

INSTALLING THE 3 TOOTH BLADE

The Hub is reverse threaded
i
turn in an anti-clockwise
direction to tighten.
3 TOOTH BLADE NUT SPLIT PIN
