Operator control (hardware)
3.1 Operator control and display elements

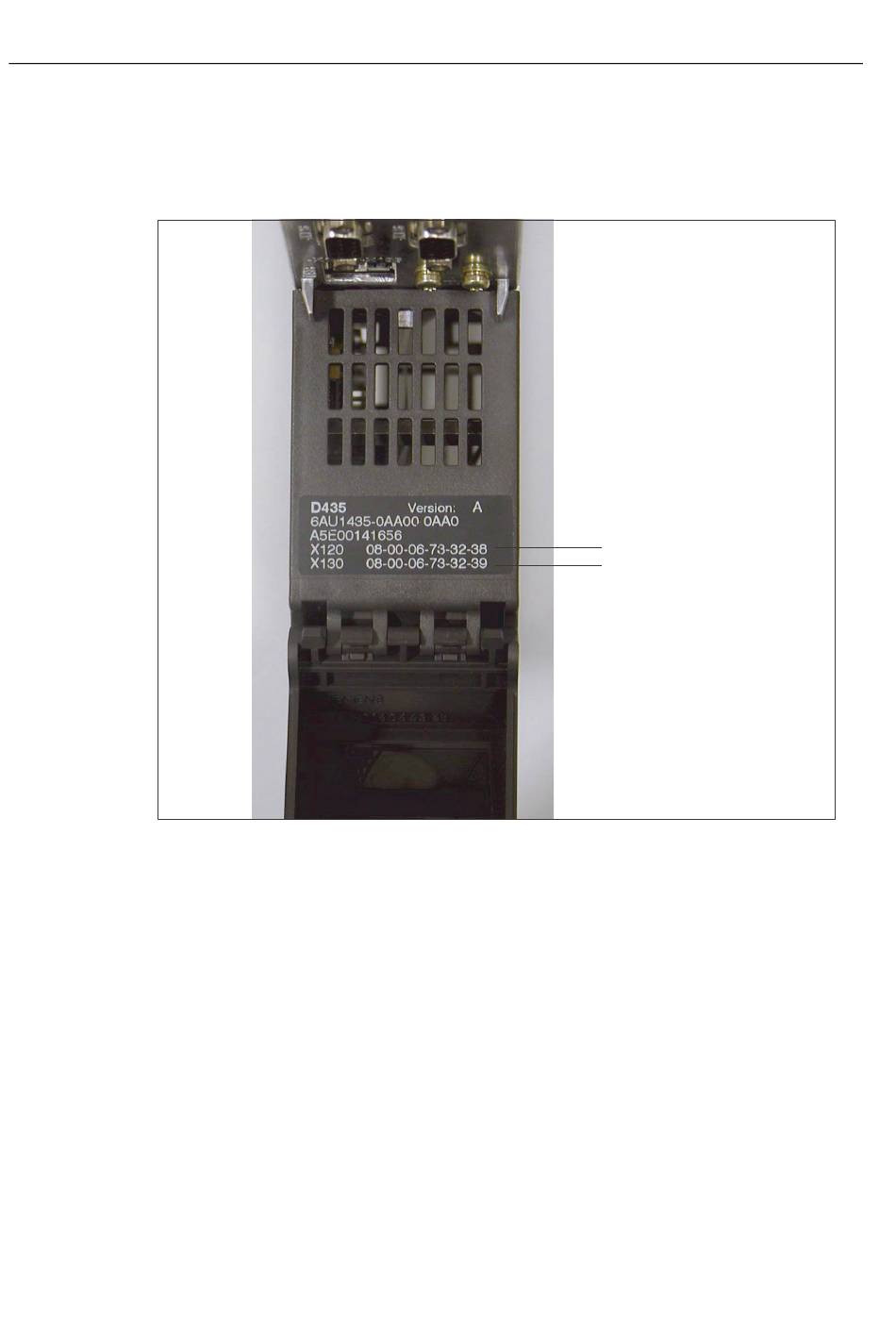

MAC addresses
A second nameplate for the MAC addresses of the two Ethernet interfaces is attached to the
front panel:
Figure 3-3
You can see this nameplate when you open the front cover of the control unit.
3-6
MAC addresses
MAC address of X120
MAC address of X130
Manual, 12.2004, 6AU1900-1AJ32-0BA0
D4xx
