Operator control (hardware)

3.1

Operator control and display elements

3.1.1

LED displays

Arrangement of LED displays
The front panel of the control unit has eight LED displays arranged in two rows of four. The
following table indicates the possible LED states and their meaning.

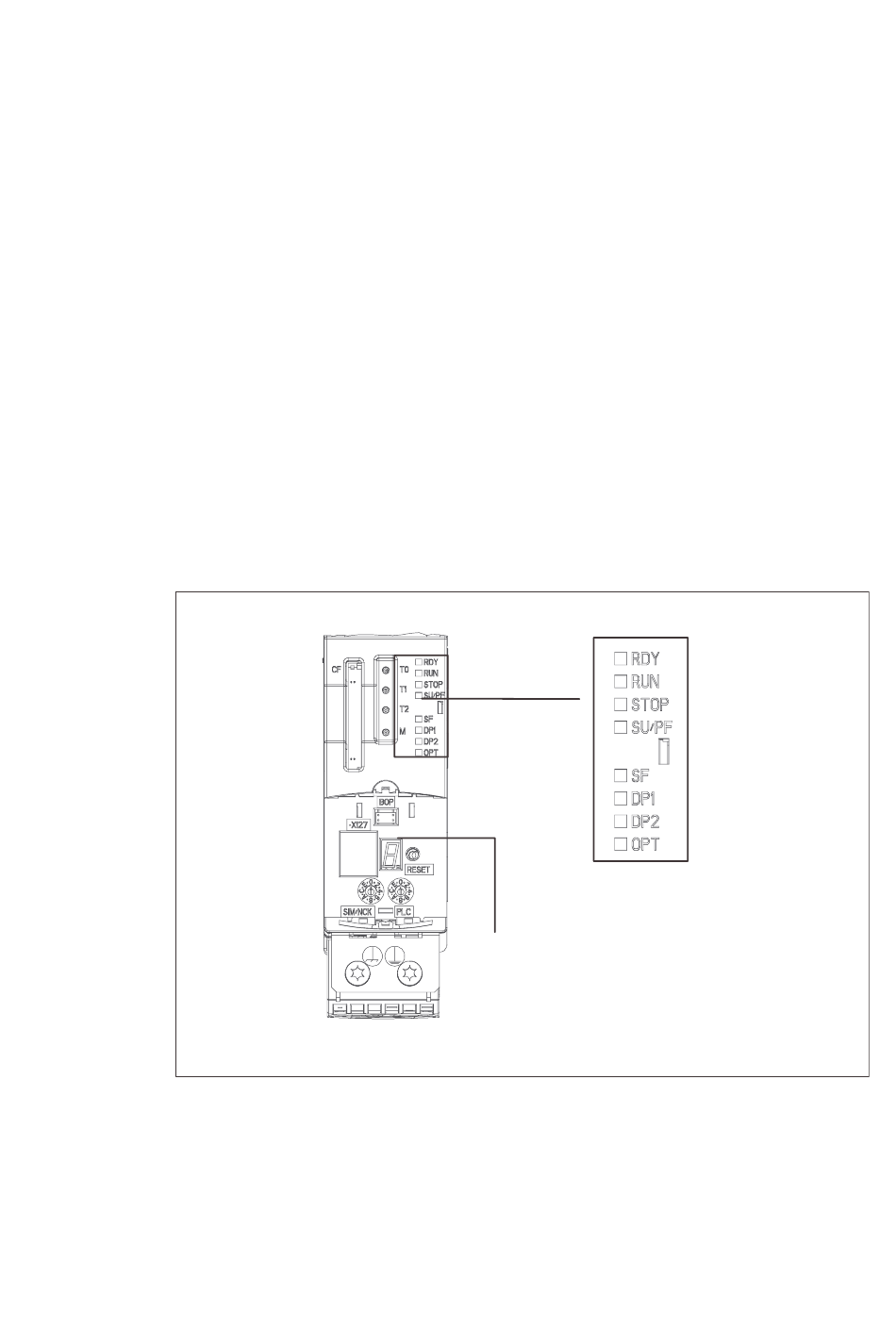

Figure 3-1
D4xx
Manual, 12.2004, 6AU1900-1AJ32-0BA0
LED display on control unit
7-segment display
3
3-1
