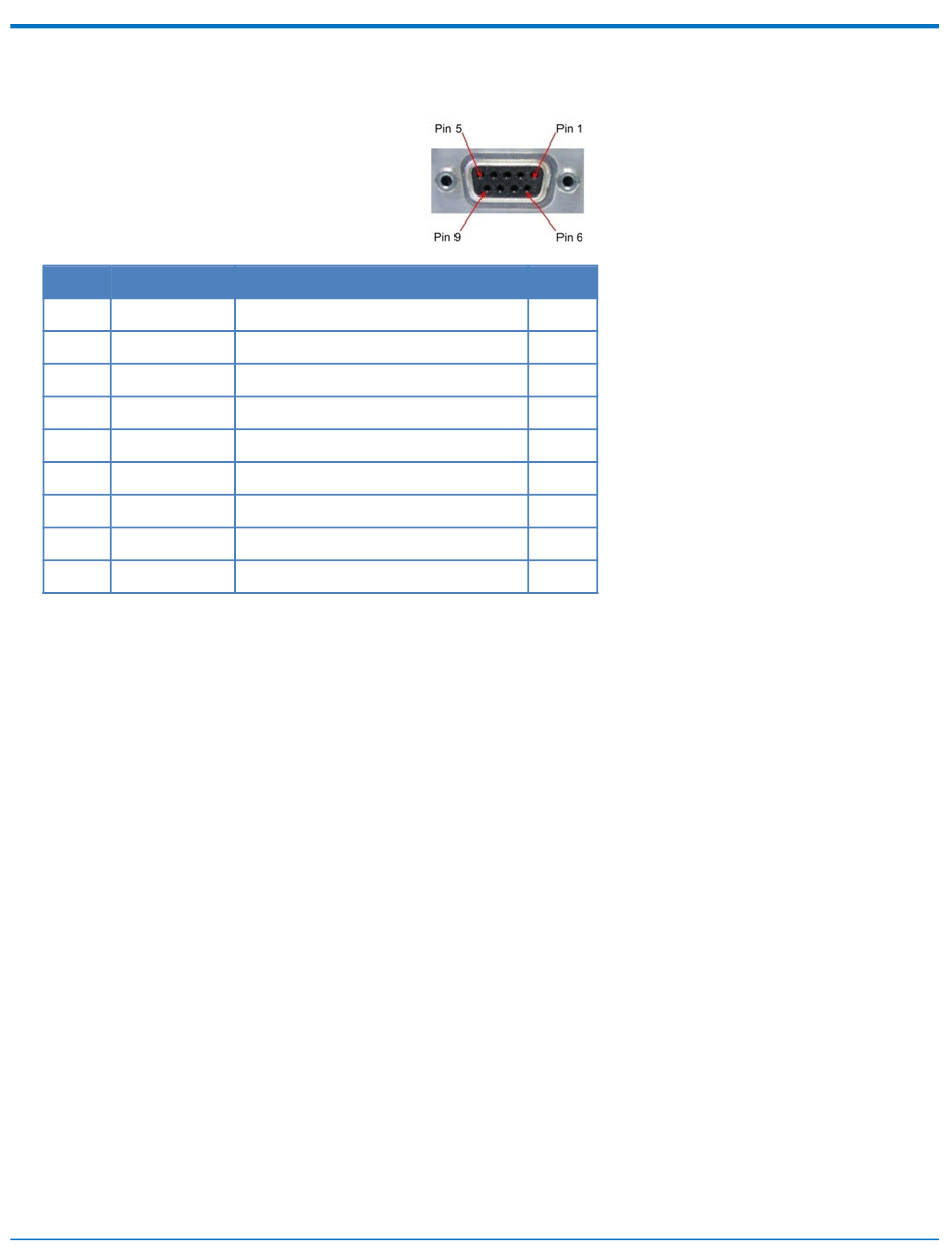

RS-232 9-Pin Female Connector

Pin Abbreviation
1 CD
2 RX
3 TX
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
®
MultiConnect Cell MTC-MNA1 User Guide
Description
Carrier Detect
Receive
Transmit
Data Terminal Ready
Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
In/Out
O
O
I
I
--
O
I
O
O
