HARDWARE INFORMATION

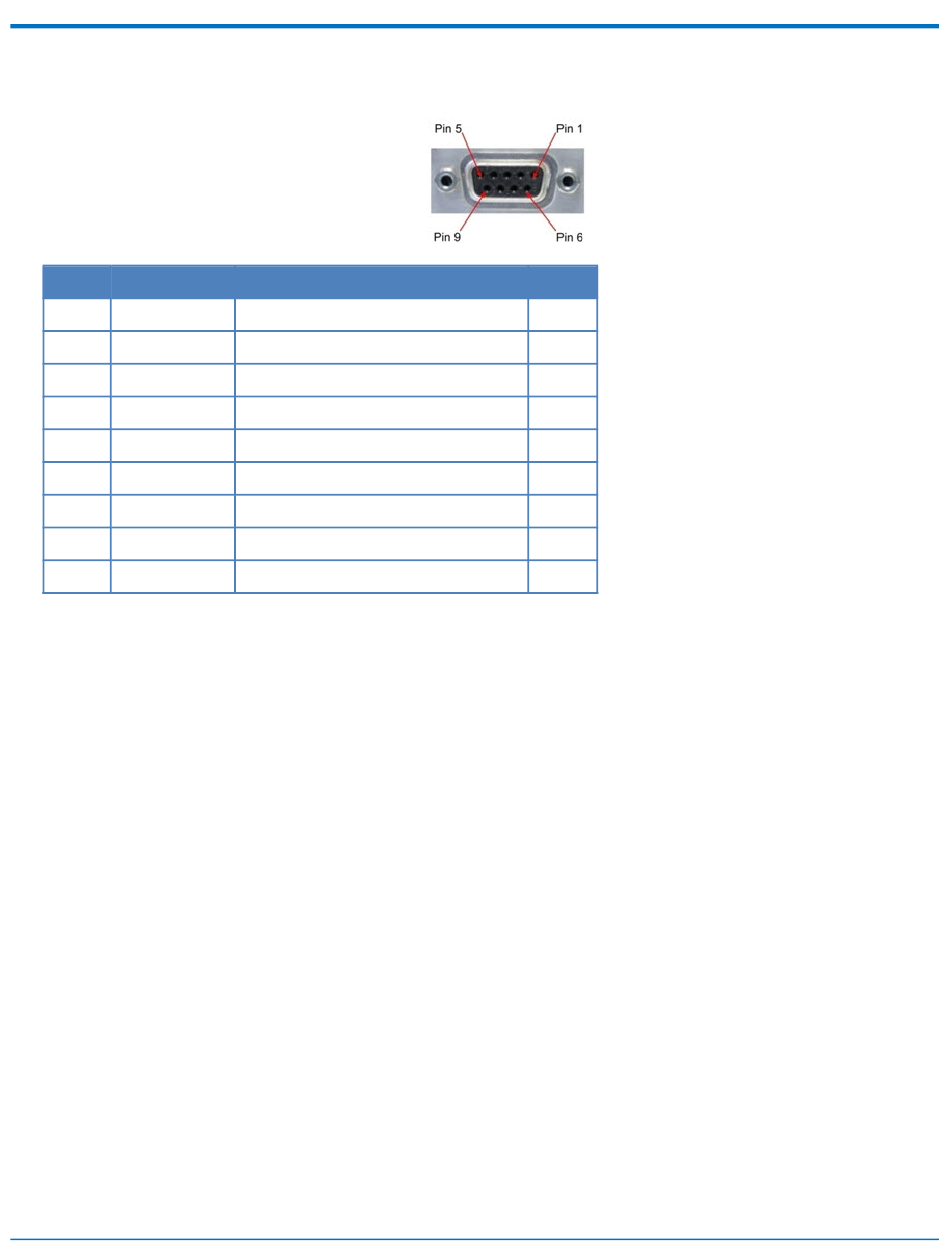

RS-232 9-Pin Female Connector
Pin
Abbreviation
1
CD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
12
Description
Carrier Detect
Receive
Transmit
Data Terminal Ready
Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
In/Out
O
O
I
I
--
O
I
O
O
®
MultiConnect
Cell MTC-MNG6 User Guide
