2.5 Rotate the display on the transmitter
(optional)
The display on the transmitter electronics module can be rotated 90° or 180° from the
original position.
18

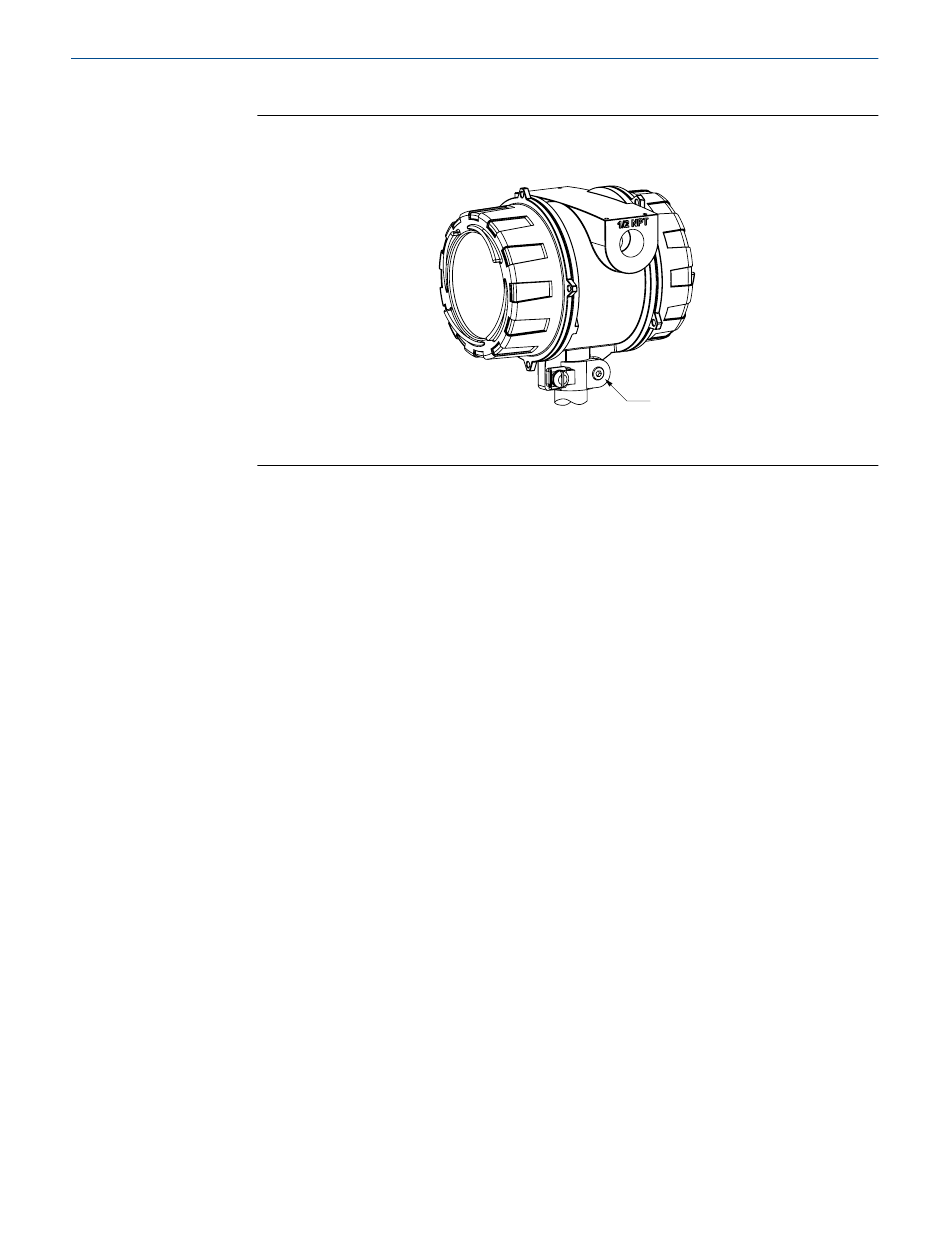

Figure 2-4: Component to secure transmitter in place
A. M5 socket-head cap screw
Rotate the transmitter clockwise to the desired orientation up to 90°.
Secure the cap screw in place and tighten to 60 lb·in (6.8 N·m).
A
