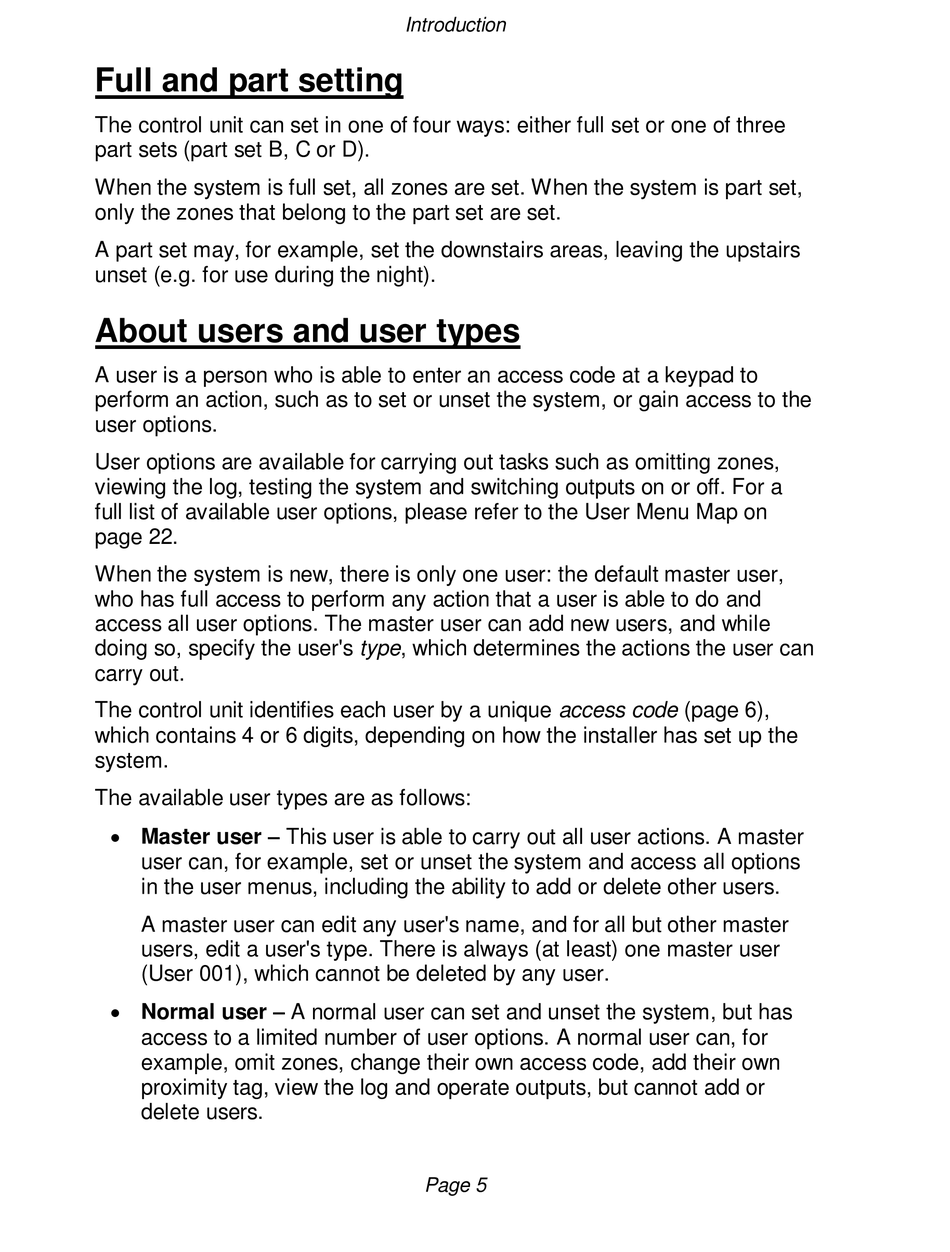

Full and part setting

The control unit can set in one of four ways: either full set or one of three
part sets (part set B, C or D).
When the system is full set, all zones are set. When the system is part set,
only the zones that belong to the part set are set.
A part set may, for example, set the downstairs areas, leaving the upstairs
unset (e.g. for use during the night).

About users and user types

A user is a person who is able to enter an access code at a keypad to
perform an action, such as to set or unset the system, or gain access to the
user options.
User options are available for carrying out tasks such as omitting zones,
viewing the log, testing the system and switching outputs on or off. For a
full list of available user options, please refer to the User Menu Map on
page 22.
When the system is new, there is only one user: the default master user,
who has full access to perform any action that a user is able to do and
access all user options. The master user can add new users, and while
doing so, specify the user's type, which determines the actions the user can
carry out.
The control unit identifies each user by a unique access code (page 6),
which contains 4 or 6 digits, depending on how the installer has set up the
system.
The available user types are as follows:
 Master user – This user is able to carry out all user actions. A master
user can, for example, set or unset the system and access all options
in the user menus, including the ability to add or delete other users.
A master user can edit any user's name, and for all but other master
users, edit a user's type. There is always (at least) one master user
(User 001), which cannot be deleted by any user.
 Normal user – A normal user can set and unset the system, but has
access to a limited number of user options. A normal user can, for
example, omit zones, change their own access code, add their own
proximity tag, view the log and operate outputs, but cannot add or
delete users.
