i-on16
Security System
Installation Guide
Issue 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-on16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eaton i-on16

  • Page 1 Security System Installation Guide Issue 9...
  • Page 2 © Eaton’s Security Business 2014 IN NO EVENT WILL EATON’S SECURITY BUSINESS BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL , OR INDIRECT LOSS OR DAMAGE, INCIDENTAL DAMAGES, STATUTORY DAMAGES, EXEMPLARY DAMAGES, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF ANTICIPATED SAVINGS, LOSS OF BUSINESS OR OPPORTUNTIY, LOSS OF GOODWILL OR INJURY TO REPUTATION, LIQUIDATED DAMAGES OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 3: Table Of Contents

    Communications .......... 22 Contents Power Supply ..........22 Electromagnetic Compatibility ...... 23 1. Introduction ............1 Outputs ............23 Overview ............. 1 Fuses ............23 Installer Programming Interface ..... 1 Electrical Safety ........... 23 About this Guide ..........1 Compliance Statements .......
  • Page 4 This page is intentionally blank. Page iv...
  • Page 5: Introduction

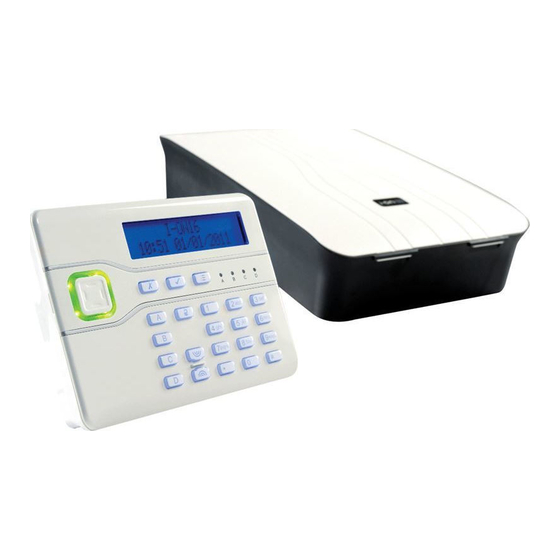

    Overview Installer Programming Interface Once fitted and powered up, you can program the The i-on16 is the control unit for a wirefree alarm control unit through any wired keypad connected to system intended for domestic and light commercial the control unit. The Installer Menu allows you to use.
  • Page 6: Before You Begin

    Inside metal enclosures. Next to electronic equipment, particularly You should conduct signal strength tests before installation. Eaton’s Security Business produce the computers, photocopiers or other radio equipment, CAT 5 data lines or industrial mains Scantronic 790r hand held signal strength meter equipment.
  • Page 7: End Station Pcb

    Before You Begin handle the PCB, take the standard precautions End Station PCB against damage by static electricity. Figure 3 shows the controls and connectors To gain access to the interior of the end station available on the end station PCB.
  • Page 8 Before You Begin i-on16 Opening the i-kp01 Keypad Note: For EN50131-3:2009, 8.7 the keypad is a type B ACE, fixed. To open the keypad first gently prise off the trim on the front and remove the two screws. Next, carefully lever the front of the keypad (containing the PCB and display) away from the keypad rear housing.
  • Page 9 Before You Begin KEY-K01/KP01/KPZ01 Controls and Displays 1. Central keyhole. 2. Fixing holes. 3. Cable entry. 4. Tamper block 1. LCD display Figure 10. Keypad Rear Housing 2. Programming keys. 3. Navigation keys. This key has built-in alert LEDs.
  • Page 10: Power Availability

    The current taken by the control unit PCB, communicator and keypads is given in Technical Specifications on page 22. For example: in an alarm system with an i-on16 1. Tamper switch. control unit and two i-kp01 keypads the system 2.
  • Page 11: Keypad Cabling Requirements

    Before You Begin Keypad Cabling Requirements Cable Type In general, the control unit requires standard 7/0.2 un-screened alarm cable for wiring to keypads. Screened cable may prove necessary if the installation site has equipment that produces high levels of R.F. (Radio Frequencies), for example welding equipment.
  • Page 12: Installation

    Step 2. Fit and Connect the Keypad(s) Note: If you are installing a keypad that was previously used on an i-onEX system, then make sure you default the keypad address BEFORE attaching it to the i-on16. See page 10 for detailed instructions. Page 8...
  • Page 13: Siting The Keypad(S)

    Installation Siting the Keypad(s) Do site the keypad(s): Within the area protected by the alarm system. At a convenient height and location for the user. Out of sight of potential intruders. Do NOT site the keypad(s): Next to electronic equipment, particularly...
  • Page 14: Keypad Addressing

    BRIGHT To add a new wired keypad to the bus of an existing BRIGHT normal intensity. i-on16 installation, first remove all power from the The keypad backlights BRIGHT control unit, both mains and battery. Make sure the BACKLIGHT...
  • Page 15 Installation MENU b) Enter a local keypad programming mode (this Backlight timed (). replaces the use of jumpers on the keypad PCB in The backlight will glow for the i-kp01). 12 seconds after the last keypress. The action of...
  • Page 16 Installation i-on16 To Leave Local Programming Mode and Opening the External Prox Reader Save Changes To open the external prox reader (see Figure 21): EITHER: 1. Undo the single retaining screw. Press  2. Tilt the edge of the fixing plate and then slide it a short distance parallel to the body of the prox reader.
  • Page 17: Tone Volume - All Keypads

    Installation 100 Ohms Keep the prox reader cable clear of cables supplying sounders or extension loudspeakers. Figure 23 shows the wiring connections at the KEY-KPZ01 Alarm contacts keypad. 2K2 EOL Zone 1 Tamper contacts Zone 0 Alarm contacts 2K2 EOL Tamper contacts Figure 25.
  • Page 18: Mains Connection

    Peripherals Fit and connect the I-RC01 (Optional) The end station PCB provides four connectors for Eaton’s Security Business provides the I-RC01 wired outputs. Each of these outputs is driven by a relay card for use when connecting the outputs to...
  • Page 19: Output On Key-Kpz01

    The output on any KEY-KPZ01 is not available for Fit the I-SD01 to the plug on module sockets (see use with an i-on16. 11 on Figure 3). Step 5. Fit and Connect I- SD01 (Optional)
  • Page 20: Removing An I-Sd01

    The keypads and internal sounder may give an alarm tone. The heartbeat LED (see Fig 3) starts flashing. Note: If you are fitting an UK version of the i-on16 please go to step 6. The display initially shows: Page 16...
  • Page 21: Step 8. Commission The System

    Step 8. Commission the 11. Instruct the user on how to operate the system. See the i-on16 Administrator’s Guide. If System necessary, show them how to set the time and After installing the control unit you should date on the system.
  • Page 22: Programming

    This section is a summary of the Installer Menu on Leaving the Installer Menu the i-on16. Please see the i-on Range Engineering If you wish to leave the Installer Menu at any time. Guide for a more detailed description.
  • Page 23: Restoring The Access Codes

    Programming  The control unit loads the factory default access codes: 6. Press  or  keys to show the zone you want User 1: 1234, Installer: 7890. and press .  After a short pause the keypad display shows ...
  • Page 24: Installer Menu

    Programming i-on16 Installer Menu Important: If the control unit does not comply with EN50131 you must remove any labelling that indicates compliance. Strobe on Unset Siren on Call Acknowledge 1 DETECTORS/ DEVICES Part Set B Language Detectors Profiles Name Call Mode...
  • Page 25: Maintenance

    5. Maintenance The control unit should be inspected once per year. At each inspection: Check the control unit for obvious signs of damage to the case or its lid. Check the action of the back tamper. Check the condition of the control unit standby battery.
  • Page 26: Technical Specification

    Technical Specification i-on16 Transmitter range The range of the 6. Technical Specification transmitters compatible with this control unit depends on the Specification environment in which they General are installed. As a Product name i-on16. guideline, most Product Description 16 radio zone...
  • Page 27: Electromagnetic Compatibility

    Technical Specification 720rEUR-00 Smoke Detector Transmitter Monitoring includes Mains fail, battery low voltage, battery failure. 734rEUR-00/01 CC/FSL Door Contact Transmitter (white) Electromagnetic Compatibility 734rEUR-05/06 CC/FSL Door Contact Immunity Conforms to EN50130-4. Transmitter (brown) Emissions Conforms to EN61000-6- 738rEUR-00/04 Spyder shock sensor...
  • Page 28: Appendix I. Recording Speech Messages

    Use Lid Tamper This puts the control unit into a Appendix I. Recording special mode where the tamper switch controls the recording and playback of the current message. Speech Messages Use this mode if the end station is an inconvenient distance from the keypad.
