Reference design

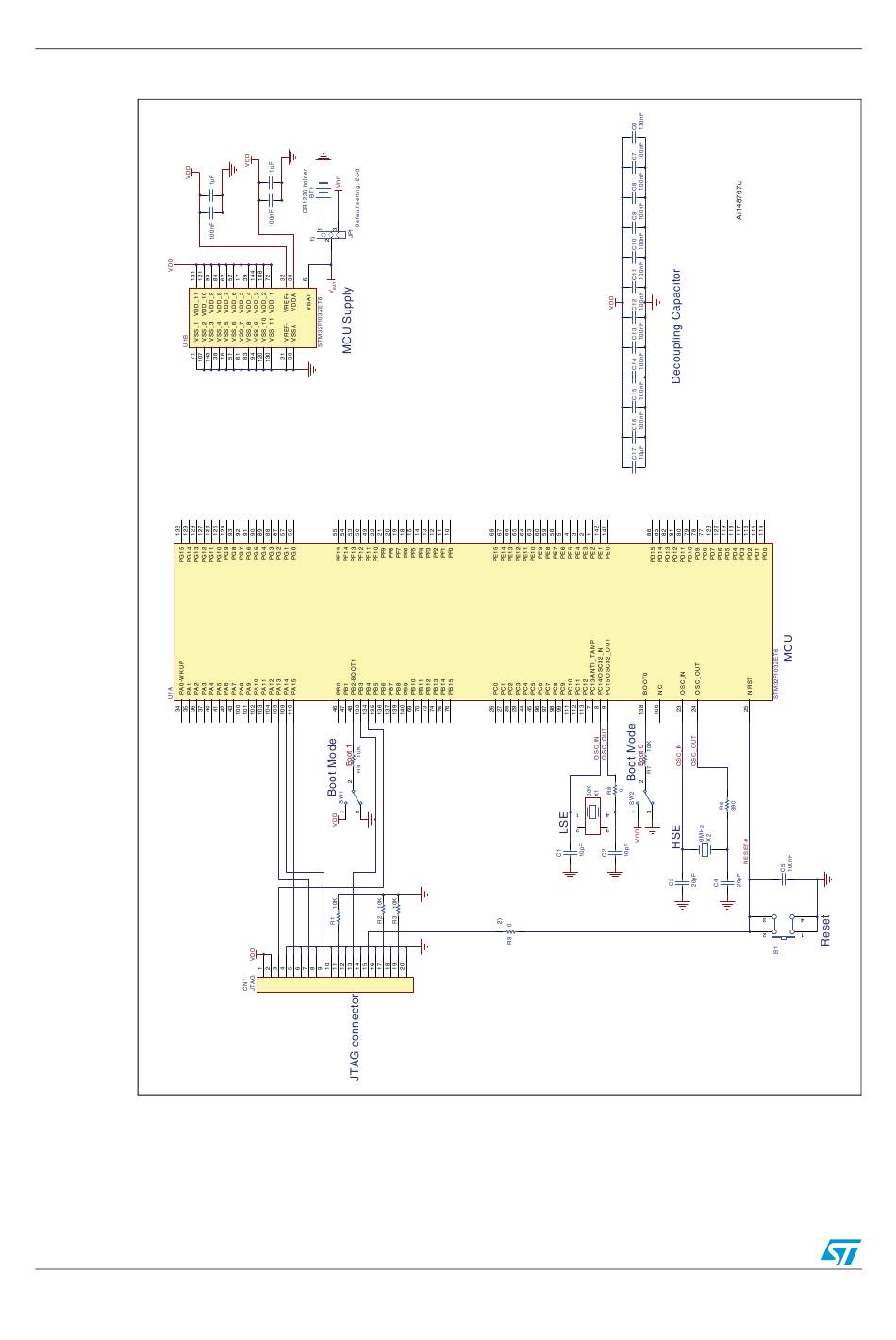

Figure 14. STM32F103ZE(T6) microcontroller reference schematic
1. If no external battery is used in the application, it is recommended to connect V
2. To be able to reset the device from the tools this resistor has to be kept.
24/28
Doc ID 13675 Rev 7
AN2586
externally to V
.
BAT
DD
