REPAIR (CONTINUED)

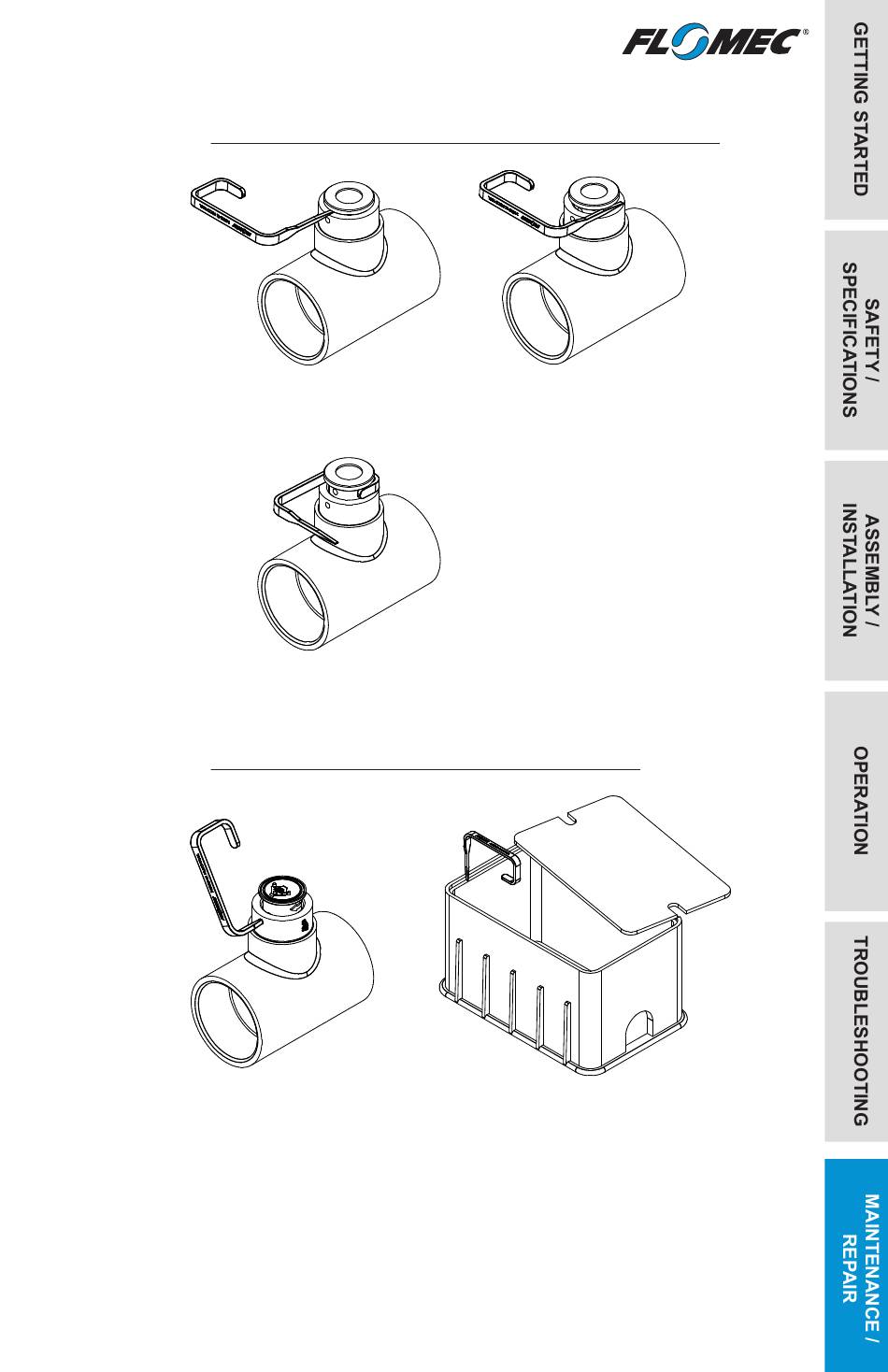

Remove Old Insert From Tee with FLOMEC Multi-Tool
PRY UP - To break a stuck insert loose
LEVERAGE - To Lift insert up and out
Figure 17
Install New QS200 Insert FLOMEC Multi-Tool
PIN HOLE ALIGNMENT -
For easy pin install
Figure 18
DRIVING WEDGE - To lift insert more
CLEAN LID GROOVE -
Remove dirt, roots, debris
21
