INSTALLATION (CONTINUED)
a. Strip insulation ¾ in. (19 mm).
b. With wire ends even, insert wires into the connector and tighten until
secure.
c. Insert the connector all the way into the tube until the connector rests
on the bottom of the tube.
NOTE: If having difficulty getting the twist-on connector down into the tube
when using small gauge wires, use a thin, non-conductive object to push
the connector to the bottom of the tube. Upon removal of the object, ensure
that no voids or water paths remain in the grease.
d. Fold the wires into the channels.
e. Close the cap.

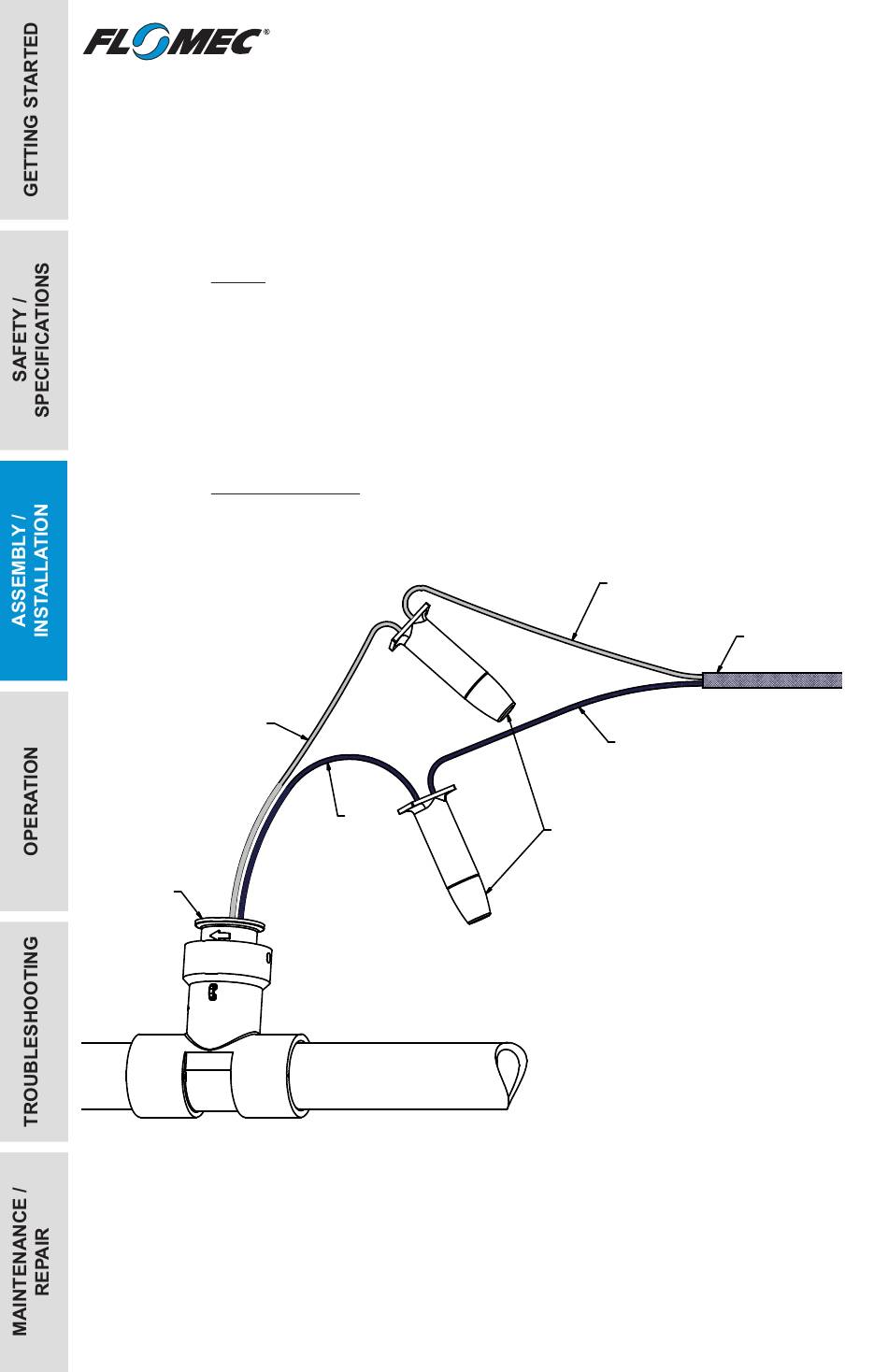

Wiring Diagram

This diagram shows connection to a RAINBIRD
Connections to other flow controllers may vary.
RED
FLOW INSERT
Figure 9
12 12 12
BLACK
®
Flow Smart Module.
TO FLOW " + "
ON FLOW SMART
MODULE
TO FLOW " - "
ON FLOW SMART
MODULE
DBR/Y-6
SPLICE KIT
18 AWG CABLE
to CONTROLLER
