INSTALLATION (CONTINUED)
1.
2.
3.
4.

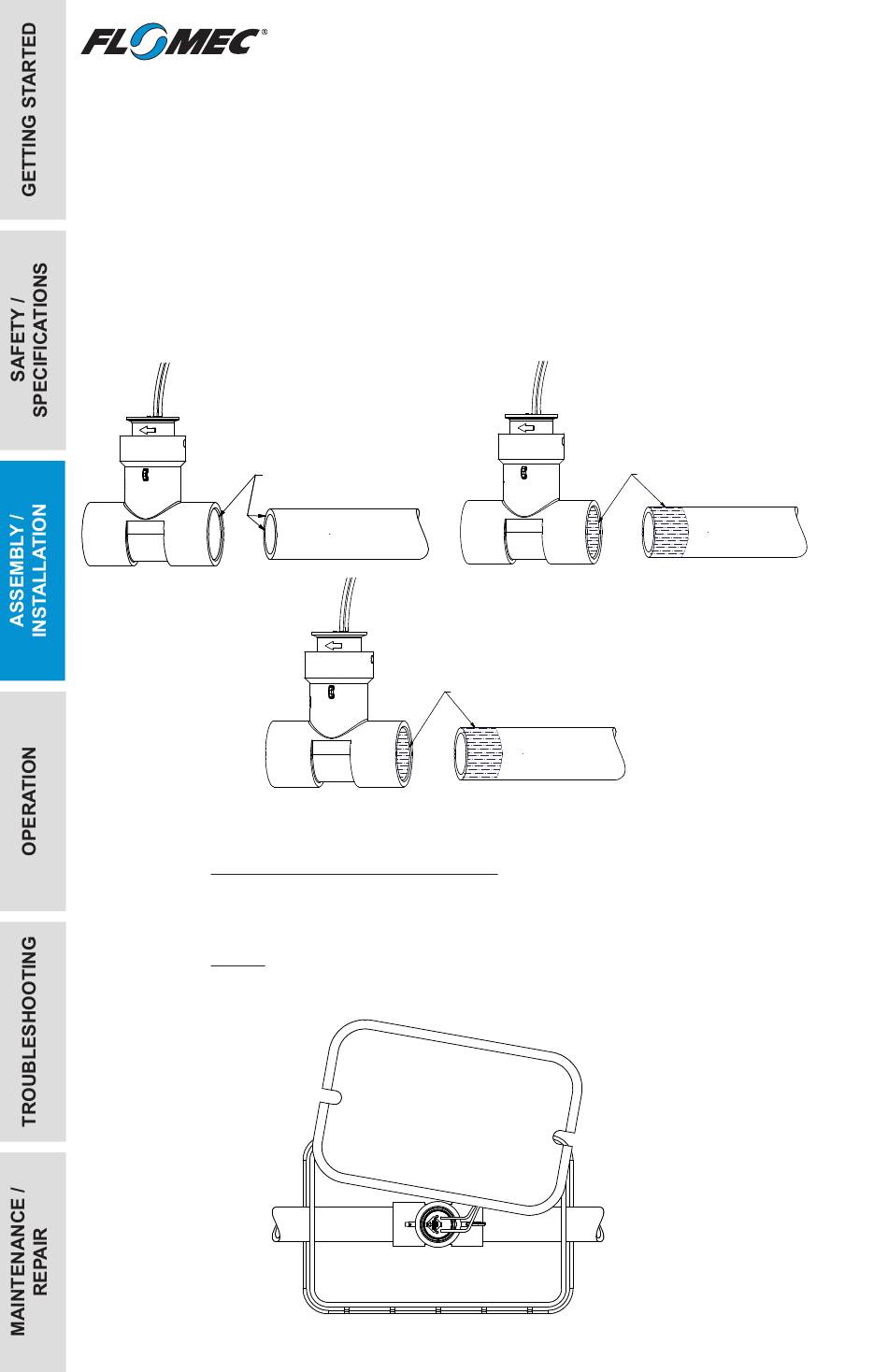

Figure 4
For Below Ground Installation
1. Install a valve box around the insert. Valve box extensions may be
needed depending on depth (see Figure 7).
NOTE: A minimum of 10 in. thick layer of gravel should be installed
immediately below the meter and valve box.
10
Figure 7
Remove all burrs from the pipe ends I.D. and O.D. edges and the Tee
sockets I.D. edges (see Figure 4).
Clean and apply primer to the pipe ends and Tee sockets
(see Figure 5).
Apply PVC cement to pipe ends and Tee sockets and quickly
assemble the parts while the cement is fluid. Follow the cement
manufacturer's instructions (see Figure 6).
Hold the cemented parts together for at least 30 seconds.
REMOVE BURRS
Figure 6
Figure 5
APPLY CEMENT
APPLY PRIMER
