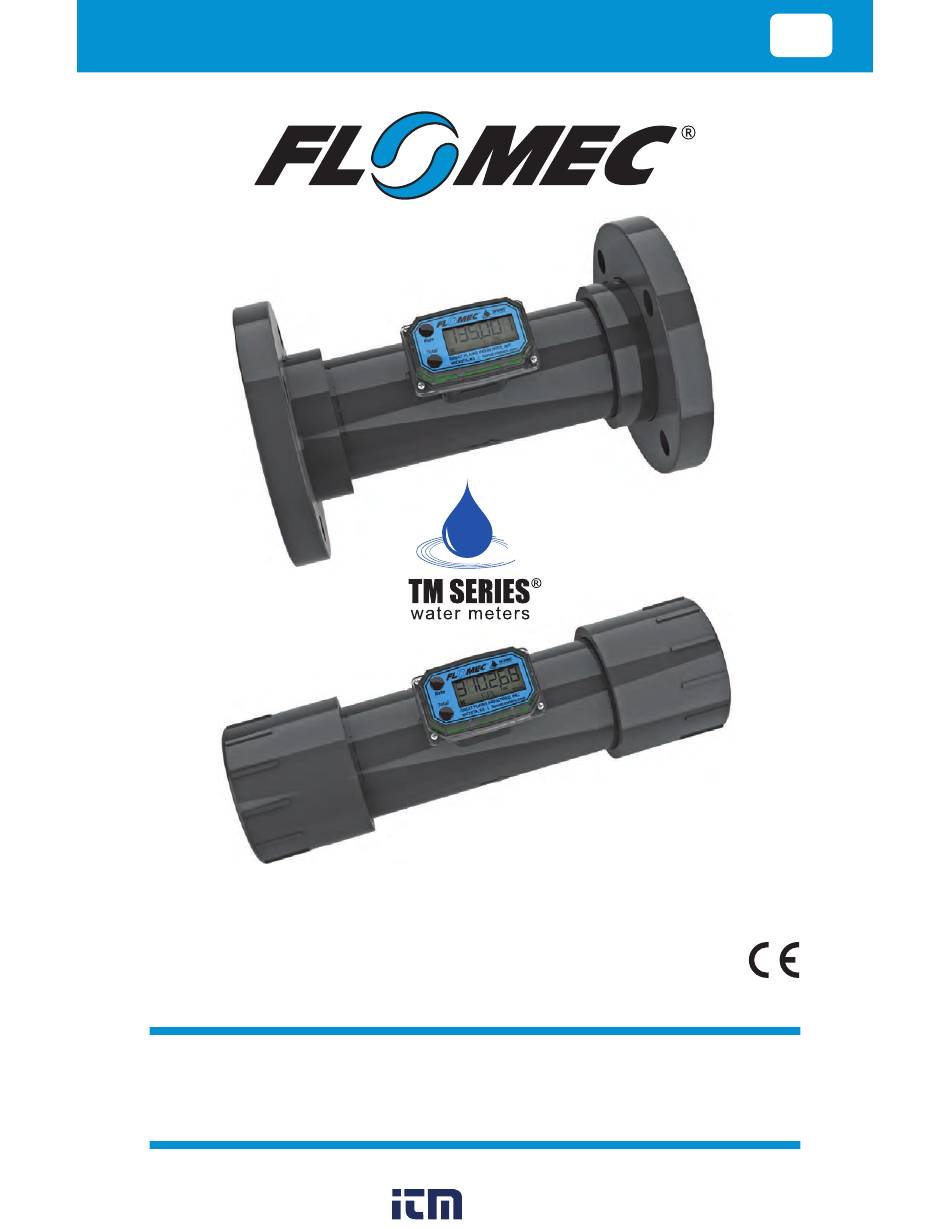

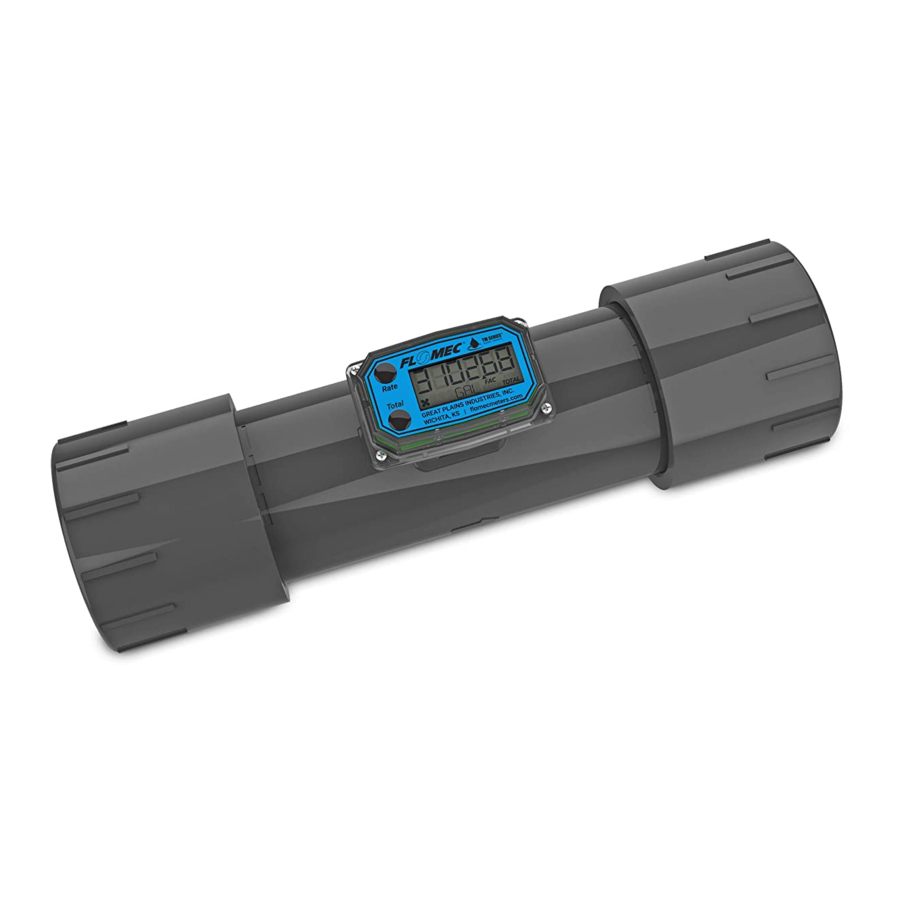

- Page 1 Product Owner’s Manual TM Series Electronic ® Water Flowmeters 3 INCH & 4 INCH METER SIZES [TM30XXXXXX - TM40XXXXXX MODELS] 07/16/2020 920861-01 Rev D 1.800.561.8187 information@itm.com www. .com...
- Page 2 Please save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Please refer to back cover for information regarding this product’s warranty and other important information.
-
Page 3: Before You Begin
• DO NOT use to meter fuel or incompatible chemicals. • TM Series meters are very sensitive to electric noise if operated within 1 to 2 inches of some electric motors or other sources of electronic noise. •... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS IMPORTANT: It is your responsibility to: • Ensure that all equipment operators have access to adequate instructions concerning safe operating and maintenance procedures. Compatibility of this product’s material and the process fluid and/or environment should be considered prior to putting into service. -
Page 5: Specifications
SPECIFICATIONS TM30 - TM40 - 3 INCH 4 INCH Type Turbine Flowmeter Unit of Measure Gallon or Litre 40-400 GPM 60-600 GPM 151-1514 L/min 227-2271 L/min Accuracy: ± 3.0% of Reading Accuracy: ± 3.0% of Reading Flow Range 30-600 GPM 40-800 GPM 113-2271 L/min 151-3028 L/min... - Page 6 SPECIFICATIONS ( CONTINUED ) TM Meter Length (A) Height (B) Width (C) Size & Fitting Dimensions 11.5 in. 5.34 in. 3.5 in. TM30S - Spigot (292 mm) (136 mm) (89 mm) 14.7 in. 5.78 in. 4.37 in. TM30N - NPT (373 mm) (147 mm) (111 mm)
-
Page 7: Installation
INSTALLATION IMPORTANT: TM Series meters are available with either a computer for local electronic display, or three versions of output modules (see PARTS section of this manual) to provide a digital signal to customer interfacing equipment. TM Series meters with computer display ship pre-configured from the factory in either gallons or liters. - Page 8 INSTALLATION ( CONTINUED ) Connections (continued) 5. For ANSI or DIN Flange Fittings - Customer to provide: • Ring Gaskets or Full-Face Gaskets approved for use with type flange installed (ANSI or DIN) and the fluid being monitored (2 required). •...
-
Page 9: Operation / Calibration
Q9 Owner’s Manual (Non-Agency) Field Calibration Section for further instructions (see below). NOTE: Make sure you meet the meter’s minimum flowrate requirements: TM Series Meter Minimum Flowrate TM30 - 3 inch 30 GPM (113.6 L/min) TM40 - 4 inch 40 GPM (151.4 L/min) -
Page 10: Maintenance
MAINTENANCE NOTE: Proper handling and care will extend the life and service of the meter Turbine Rotor The meter is virtually maintenance-free. However, it is important the rotor moves freely. Keep the meter clean and free of contaminants. The rotor can be removed for cleaning and inspection. Begin by unscrewing the nose cone from the outlet end of the meter. -
Page 11: Parts And Service
PARTS / ACCESSORIES LIST FOR TM SERIES METERS Part Number Description 12517601 Gasket 125175-11 Computer mount assembly 901002-52 Seal 113435-10 Conditioned Signal Module (GEN 2) 125060-10 Pulse Access/External Power/Scaled Module (GEN 2) 125100-10 4-20mA Module PARTS & SERVICE For warranty consideration, parts, or other service information, please contact your local distributor. - Page 12 FLOMEC® TWO-YEAR LIMITED WARRANTY Great Plains Industries, Inc. 5252 E. 36 Street North, Wichita, KS USA 67220-3205, hereby provides a limited warranty against defects in material and workmanship on all products manufactured by Great Plains Industries, Inc. This product includes a 2 year warranty.
