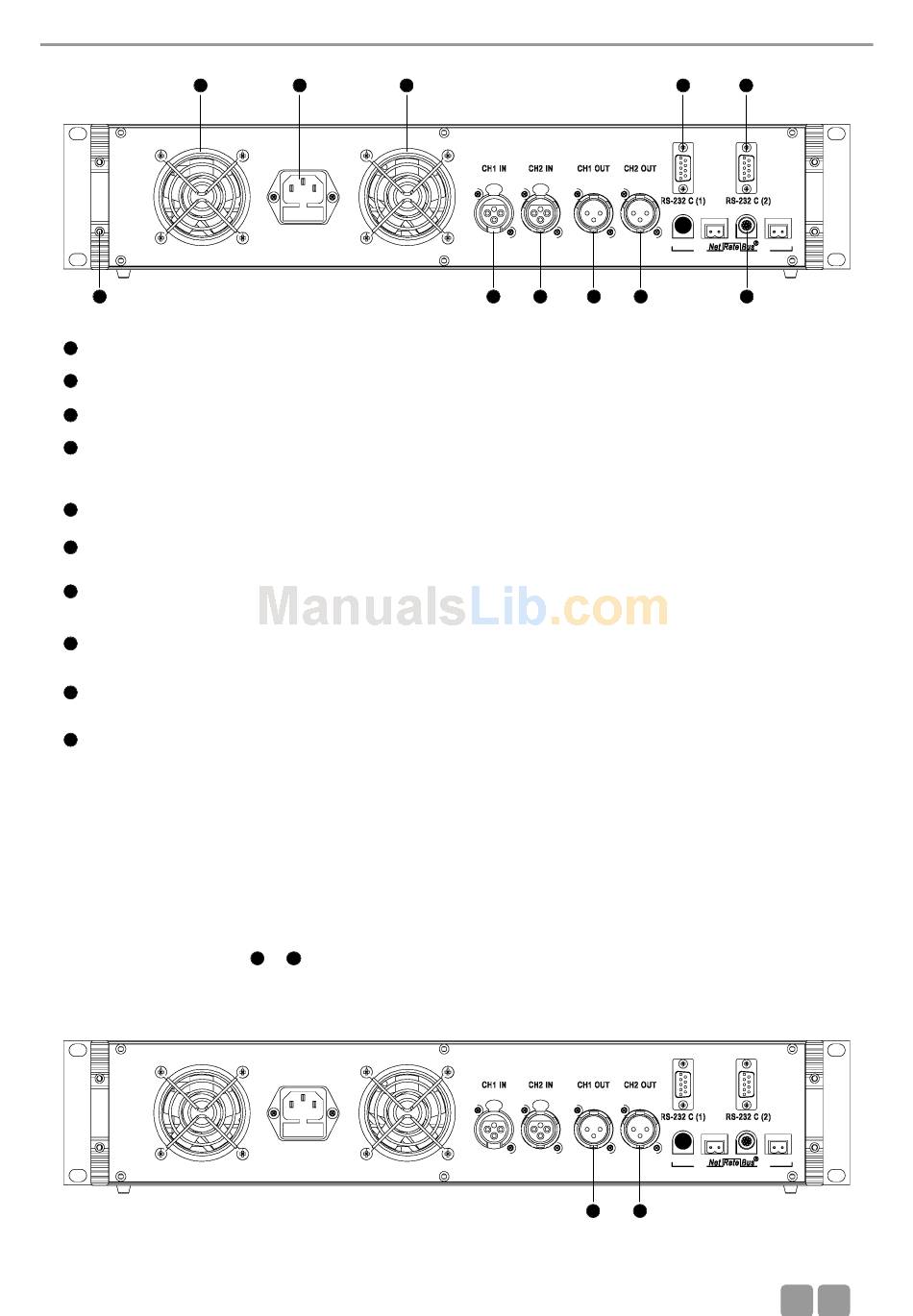

Rear view
13
20
Mains connection with fuse (6.3 A short-circuit protection)
11
NetRateBus conference sockets, MCS-D 200 with 1 Push-Pull socket to connect other power supply units for example.
12
Fan outlet (number of fan outlets depends on the number of power supply units integrated into the control unit)
13
RS 232 C (1). 9-pin Sub-D connection for PC or media control system.
14
Note: A PC is connected via a connecting cable (1:1) , no null modem cable.
If you use other devices, please observe the pin wiring. The configuration is done via the control unit.
15
RS 232 C (2). The connection corresponds to RS 232 C (1).
CH1 IN: XLR LINE IN input (female), 0 dBm, balanced. The input signal is routed to the loudspeakers of the microphone
16
stations or to any output. Settings are done via the control unit.
17
CH2 IN: XLR LINE IN input (female), 0 dBm, balanced. The input signal is routed to the loudspeakers of the microphone
units or to any output. Settings are done via the control unit.
CH1 OUT: XLR LINE OUT output (male), 0 dBm, balanced. Master output of all microphones or any channel; programmable
18
for recording or broadcasting applications.
CH2 OUT: XLR LINE OUT output (male), 0 dBm, balanced. Master output of all microphones or any channel; programmable
19
for recording or broadcasting applications..
End profile
20
Note:
For more inputs and outputs connect a CA 45xx D/A Interface.
3.2 Putting into operation
3.2.1
Audio connection
• Connect the master output
• Always route cables running to the unit where they will not be damaged by heavy or sharp objects
11
13
or
of the MCS-D 200 control unit to the input of a mixing console or mixing amplifier.
18
19
MCS-D 200 Control Units
