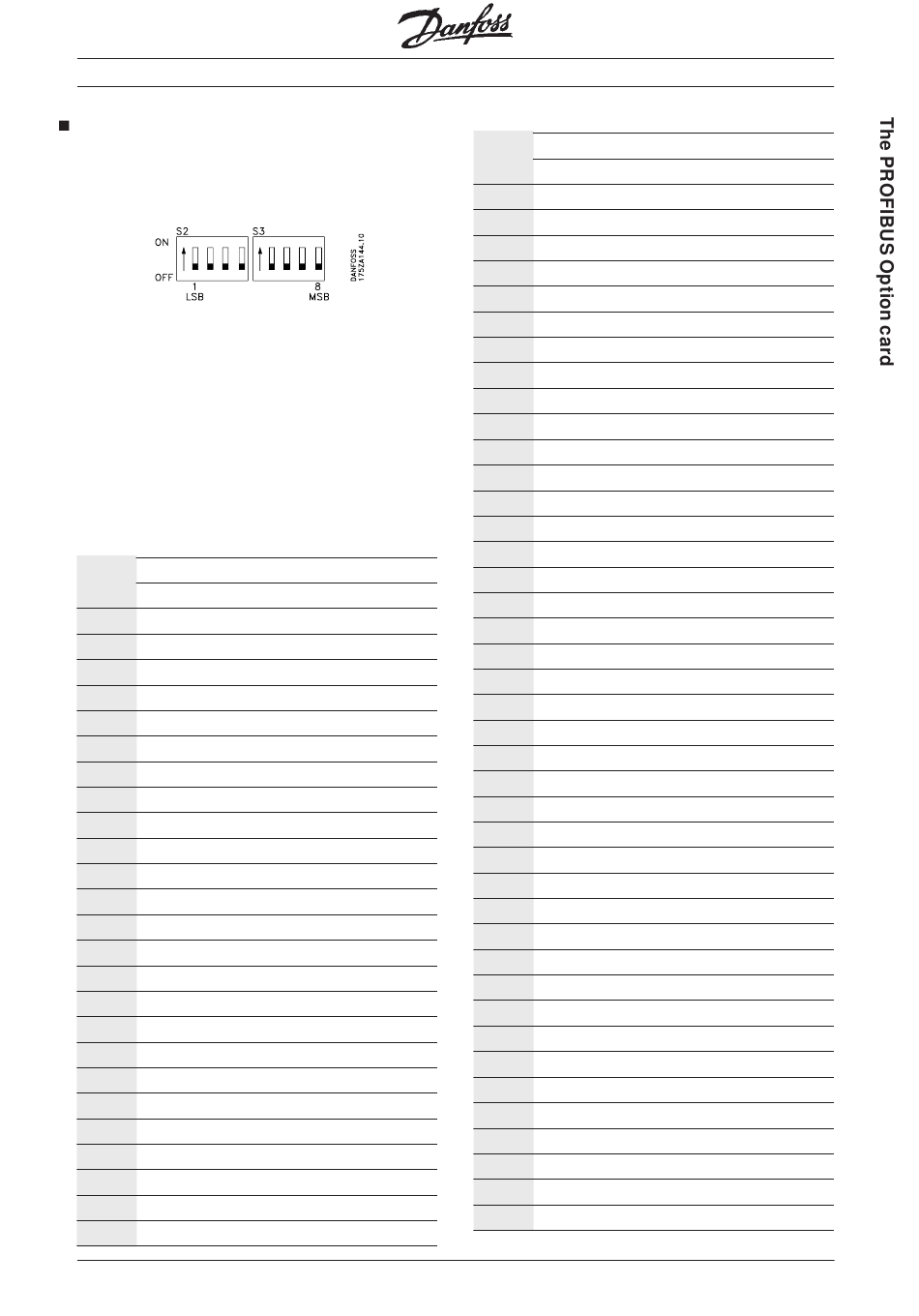

Address switches

The station address can be set in parameter 918 or
through a hardware switch (S2, 1-4 and S3, 5-7 on
the PROFIBUS option card).
The setting of an address through parameter 918 is
only possible when the address switches are set to
0 or > 126.
Each slave must have an unambiguous address.
The address is the binary value set for the
switches, cf. the table below. The modification of
the address switches occurs during the next turn-
on procedure.
Switches 1-7 (switch 8 is not used)
1 2
Address switch position (1 = ON, 0 = OFF)
0 0 0
1 1 0
2 0 1
3 1 1
4 0 0
5 1 0
6 0 1
7 1 1
8 0 0
9 1 0
10 0 1
11 1 1
12 0 0
13 1 0
14 0 1
15 1 1
16 0 0
17 1 0
18 0 1
19 1 1
20 0 0
21 1 0
22 0 1
23 1 1
24 0 0
