There is a system bus set up with one microphone line. Up to 32 microphone units can be connected.
The system connecting cable can be manufactured in special lengths and versions. Delivery period, price and more
information available upon request.

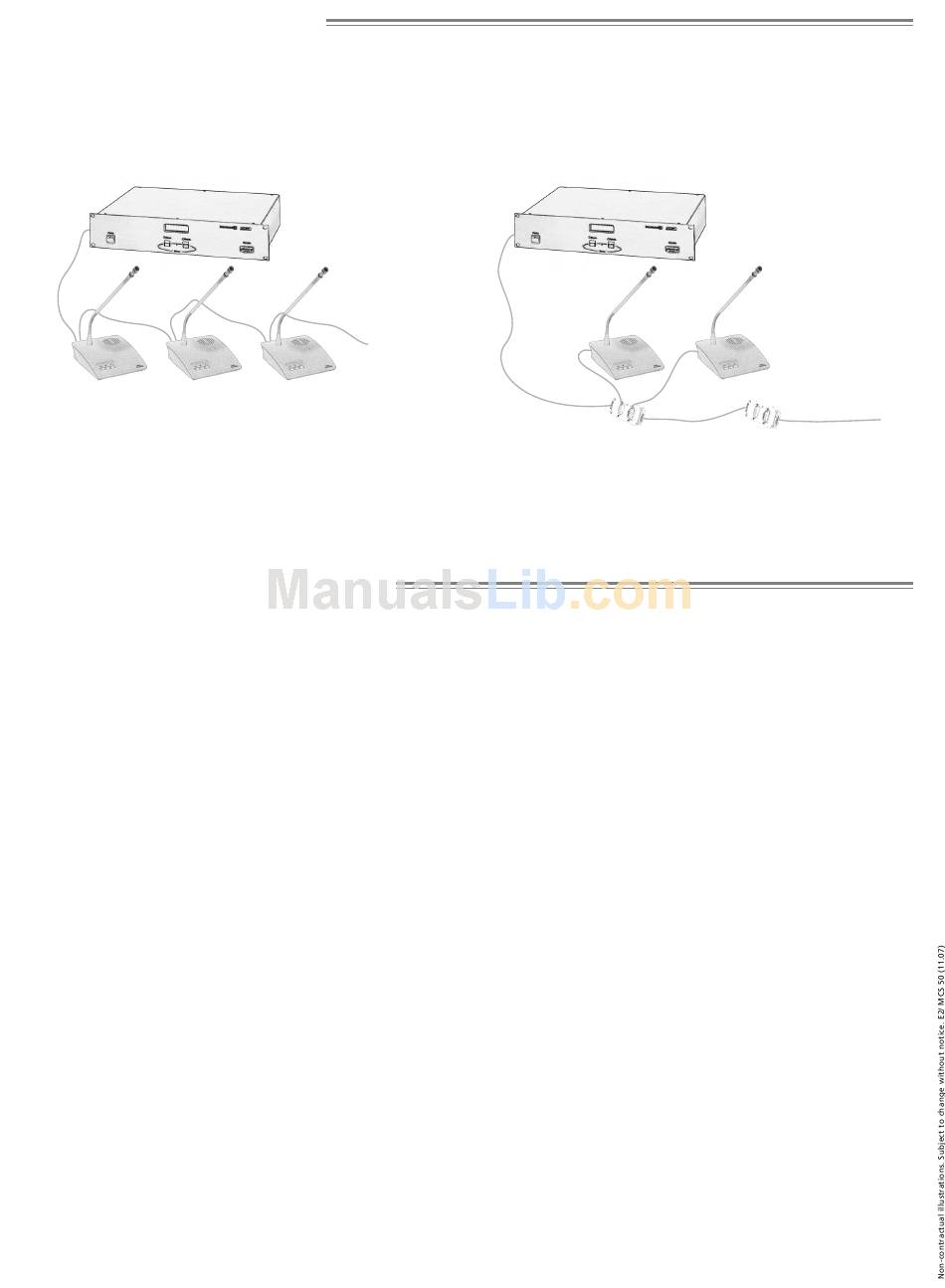

Single cable connection
A ' S
RCHITECT S PECIFICATIONS
3-way adapters in a compact, impact-resistant metal housing with a 15-pin Sub-D plug and three 15-pin Sub-D sockets.
Two connections for delegate units and one connection for loop-through wiring.
Manufacturer: beyerdynamic GmbH, Germany
Type: CA 1513
Connecting cable with PVC outer jacket to connect the MCS components and adapters. 2.5 m long, flexible cable, in
black with 15-pin Sub-D-coupling and connector. 3 x 2 x 0.08 sqmm coiled in the screen, 0.50 and 1 x 0.25 sqmm in the
overall screen.
Manufacturer: beyerdynamic GmbH, Germany
Type: CA 1502
Connecting cable with PVC outer jacket to connect the MCS components and adapters. 10 m long, flexible cable, in
black with 15-pin Sub-D-coupling and connector. 3 x 2 x 0.08 sqmm coiled in the screen, 0.50 and 1 x 0.25 sqmm in the
overall screen.
Manufacturer: beyerdynamic GmbH, Germany
Type: CA 1510
Connecting cable with PVC outer jacket to connect the MCS components and adapters. Flexible cable, length upon
request, in black with bare ends. 3 x 2 x 0.08 sqmm coiled in the screen, 0.50 and 1 x 0.25 sqmm in the overall screen.
Manufacturer: beyerdynamic GmbH, Germany
Type: CA 1500
Branch cabling
