Endless Pools FASTLANE Owner's Manual page 9

Fastlane Swim Unit Installation
®
Once the bracket is tied back to the rebar and positioned, unroll the flexible PVC from the wall mount
W
bracket back to the hydraulic power unit. Any bends in the flexible PVC should be gradual sweeps and not
sharp to allow the hydraulic hoses to easily be fed through each conduit. Each length of PVC must be no
longer than 21ft (6,4m) and should exit the ground near the hydraulic power unit. Glue the PVC flex pipe

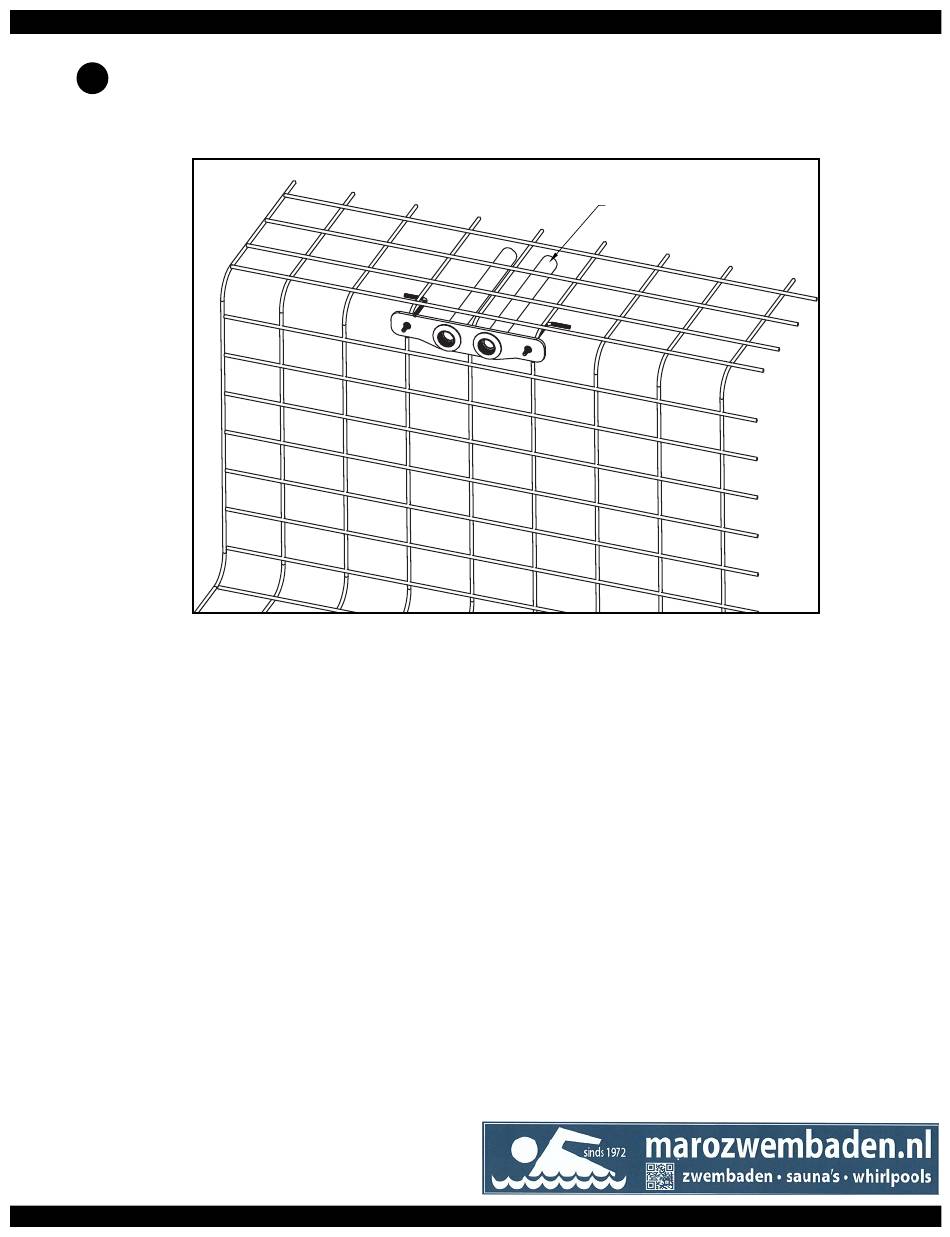

into the thru-wall fittings at the wall mount bracket (Fig 4.3).
1-1/2" (38mm)
PVC Flex Pipe
Fig. 4.3
If the distance between the wall mount bracket and the hydraulic power unit is greater than 25ft (7,6m)
then a junction box and additional flex pipe must be employed. In this case, the flex pipe between the wall
mount bracket and the junction box must be 24ft 6in (7,5m). This will allow the hydraulic hoses attached to
the Fastlane to terminate just inside the junction box. See section 5 for additional information.
The threaded rods must be tied into the pools bonding grid. Secure a bonding clamp to each threaded
rod. Attach a #8 solid copper wire to each bonding clamp. These wires MUST be attached to a bonding
connection that's incorporated into the pools bonding grid. In most cases this will be a connection at the
rebar. Verify ALL bonding connections are tight before shooting gunite (Fig 4.4).
