Fastlane Swim Unit Installation
®
The threaded rods must be tied into the pools bonding grid. If using rebar in the pools concrete collar,
W
tie the threaded rods to the rebar using rebar wire. Secure a bonding clamp to each threaded rod. Attach
a #8 solid copper wire to each bonding clamp. These wires MUST be attached to a bonding connection
that's incorporated into the pools bonding grid. In most cases this connection will be at the pools existing
equipment (heater, pump, etc.) that's presumably already tied into the bonding grid of the pool. Verify these

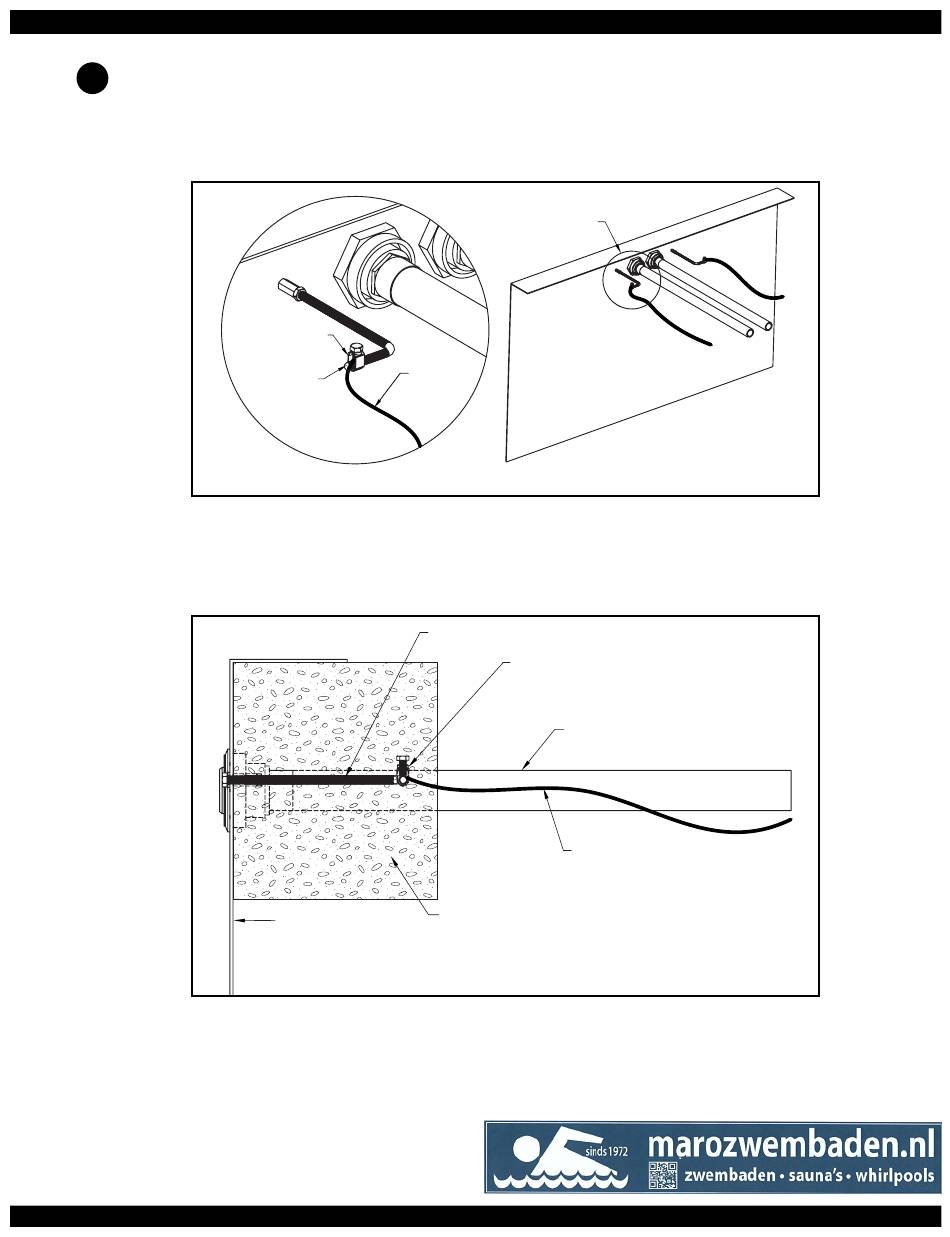

connections are tight before pouring concrete (Fig 4.11)
Prior to pouring concrete, it is critical that the opening of each thru-wall and the sacrificial bolt be covered.
No concrete can be embedded in these areas. Pour the concrete collar around the top flange of the pool
encasing the threaded rods and conduit in place. This encasement will help secure the Fastlane (Fig 4.12).
13
Bonding Clamp
Threaded
Rod
DETAIL A
Fig. 4.11
Pool Wall
Fig. 4.12
Bonding Clamp
(See Detail A)
#8 Solid
Copper
Wire
Threaded Rod
Bonding Clamp
PVC Flex Pipe
#8 Solid Copper Wire
MUST BE ATTACHED TO
POOL BONDING GRID
Concrete Collar
