Endless Pools FASTLANE Owner's Manual page 38

Fastlane Swim Unit Installation
®
Section 11B ELECTRICAL REQUIREMENTS FOR THE UK (50HZ)
The unique design of the Fastlane facilitates sales to UK and international customers. The Fastlane is
D
W
shipped in kit form for easy assembly and installation into any new conventional pool following the de-
tailed instructions provided.
The Fastlane is ETL marked and CE listed.
A Residual Current Device (RCD) is required for this product. An RCD is a device that shuts off an electri-
cal circuit when it detects that electricity is flowing along an unintended path. The path could be through a
person or water. The purpose of this device is to reduce the chance of electrical shock. The RCD must have
a rated residual operating current not exceeding 30mA. The MCB (breaker) that operates the Hydraulic
Power Unit must be C-type, D-type, or motor rated. The Hydraulic Power Unit requires one single phase
220v 32amp RCD protected service. All connections should be made by a licensed electrician.

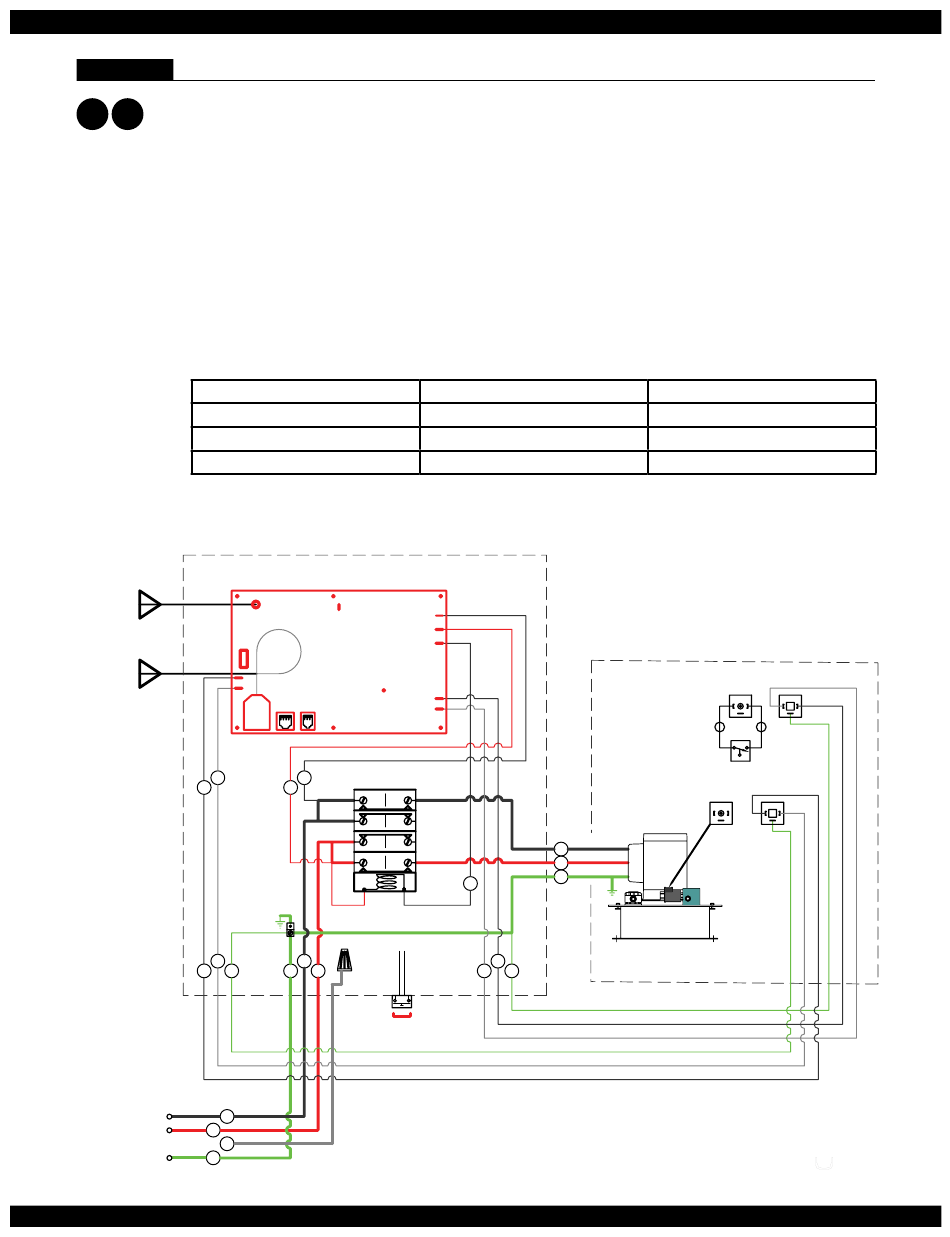

United States wire color-coding is different than international color-coding. The following chart identifies
the color-coding used in the United States as it relates to the wire type. In addition, the wires of the control-
ler have a short, colored sleeve wrapped around them to conform to the international color codes.
Should you have any questions, please call the Customer Service Department at 800-910-2714 (US), 0800-
520-0196 (UK) or 610-497-4538 (Direct), or email us at poolhelp@endlesspools.com.
