Fastlane Swim Unit Installation
®
W
17

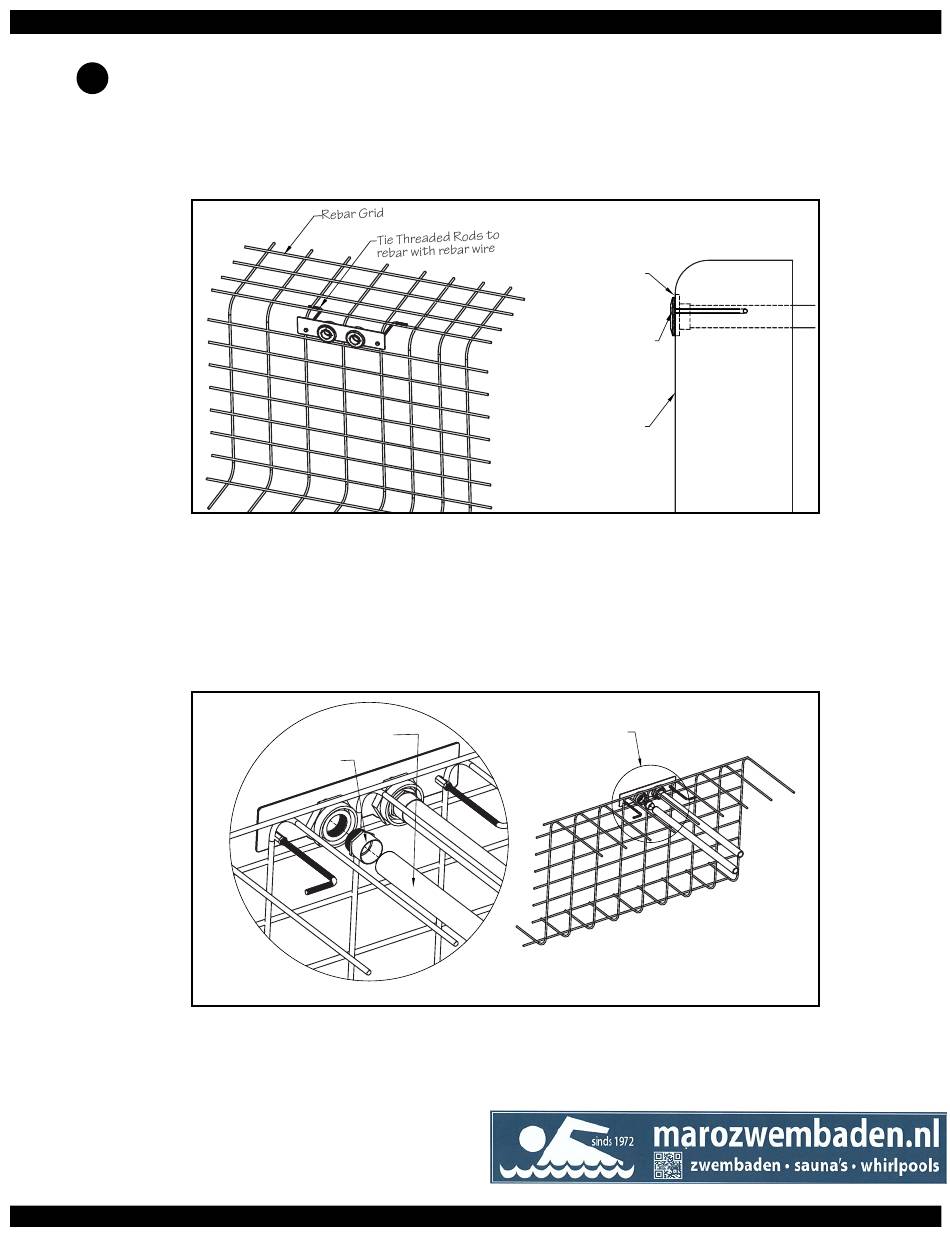

The bracket is to be installed into the pool wall so that the two threaded rods are 1-1/2" (38mm) above the
intended waterline, which is typically halfway up the skimmer. The bottom straight edge of the bracket
should be aligned with the expected waterline. Level and position the bracket so that the PVC surface of the
bracket will be flush with the finished surface of the pool wall. The threaded rods attached to the bracket
must be tied back to the rebar of the pool with rebar wire. Once encased in concrete, these rods will serve
as a suitable hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the finished
pool and will be used to hang the Fastlane (Fig 4.18).
Fig. 4.18
Apply Teflon thread sealant to the threads of the 1/1/2" (38mm) MPT x FSlip adapters and thread them
into the backside of the star thru-wall fittings. Unroll the flexible PVC from the wall mount bracket back to
the hydraulic power unit. Any bends in the flexible PVC should be gradual sweeps and not sharp to allow
the hydraulic hoses to be easily fed through the conduit. Each length of PVC must be no longer than 21ft
(6,4m) and should exit the ground near the hydraulic power unit. Glue the PVC flex pipe into the adapter
and run the pipe back to the power unit (Fig 4.19).
1-1/2" (38mm)
PVC Flex Pipe
1-1/2" (38mm)
MPT x FSlip
Adapter
DETAIL A
Fig. 4.19
Wall Bracket
flush with
finished pool wall
Threaded Rods
1-1/2" (38mm)
above pools waterline
Finished Pool Wall
Adapter and Flex Pipe
(See Detail A)
