Endless Pools FASTLANE Owner's Manual page 39

Section 12 EQUIPMENT START UP
12.1 Turn the circuit breaker for the Power Unit off. Connect the hydraulic hoses from the Fastlane to the
D
W
Power Unit. The low-pressure hose (connected to the Fastlane) will have red tape wrapped around the
hydraulic fitting. This hose will connect to the port on the fill cap. The high-pressure hose will connect
to the port on the high-pressure manifold (blue box) (See Fig 12.2).

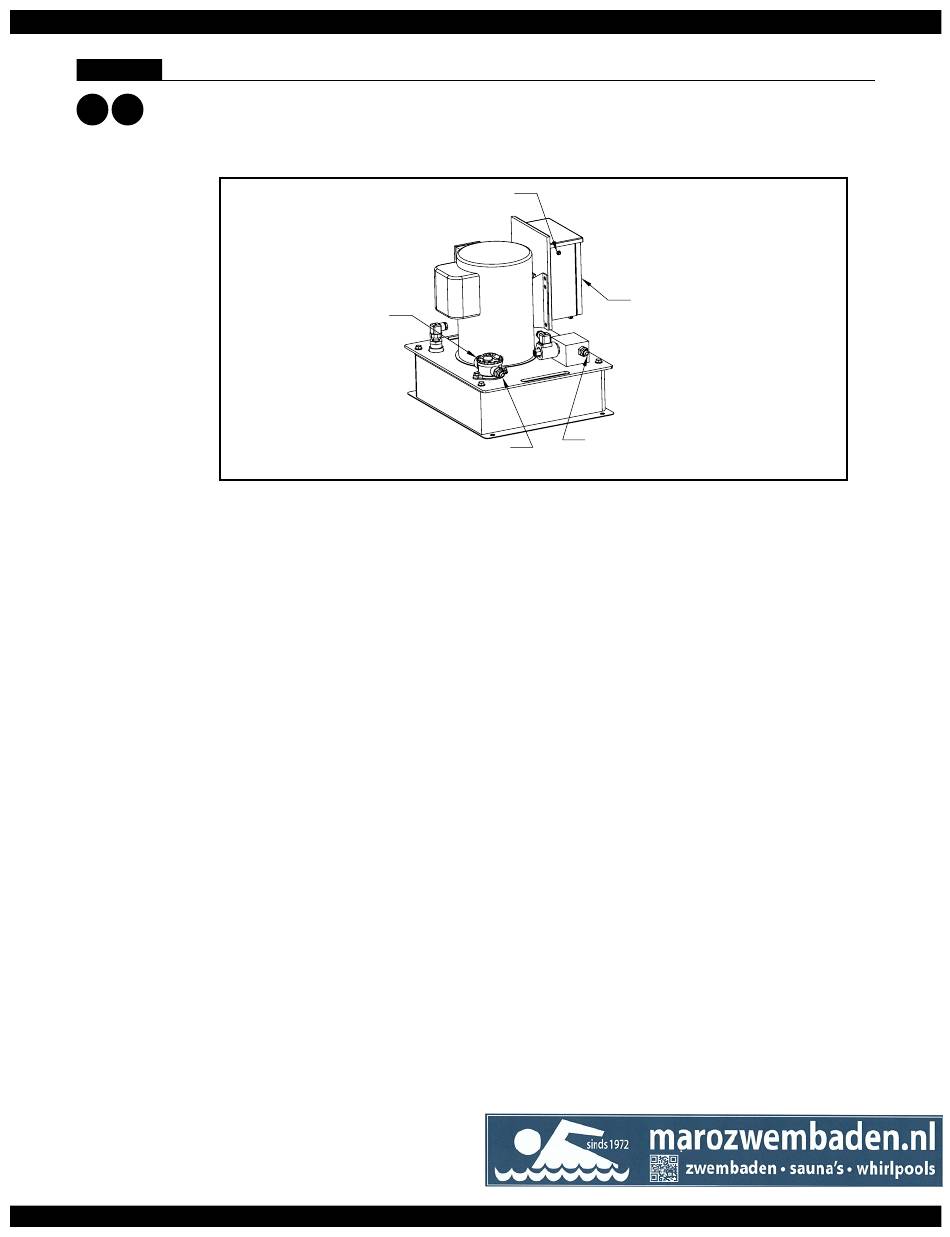

Fig. 12.2
If the hoses attached to the Fastlane are to be directly connected to the Power Unit, then use the
adapters (-8 female JIC x –6 male JIC) that were provided in the Accessories Kit.
If the 1/2" (12,7mm) run hoses are to be attached to the Power Unit, then these hoses will connect
directly to the appropriate connections on the power unit.
12.2 Unthread the fill cap and remove the oil filter by pulling up on the clear tabs at the top and lifting it out
of the opening of the fill cap assembly. Fill the Power Unit with approximately (4) gallons (14L) of
hydraulic fluid (provided with the Fastlane shipment). Once filled with hydraulic fluid, replace the oil
filter making sure its fully seated in the fill cap assembly. Reinstall the fill cap and tighten. Install the
antenna provided by threading it onto the coaxial connection on the left side of the Power Unit Con-
troller's enclosure. Turn on the unit by pressing and holding the ON/OFF button (button in the center
of the wireless transmitter). If there is no swim current created in the pool after the unit has been
running for one minute, increase the speed by pressing and holding the faster button (up arrow)
until a current is produced.
12.3 Once the Fastlane is fully installed and operational, turn the system off and disconnect the hydraulic
return hose (hose with red tape) which connects to the fill cap. Place the hose end into the 5-gallon
(19L) bucket used to fill the power unit.
12.4 Turn on the Fastlane, making sure to hold the hose firmly in your hand over the bucket. The returning
hydraulic fluid will flow into the bucket. The system will automatically shut off when the float level
switch inside the fluid reservoir is tripped.
12.5 TURN OFF POWER TO THE UNIT AT THE CIRCUIT BREAKER.
12.6 Reconnect the hydraulic hose to the power unit and tighten. Open the fill cap and add 2 cups of
hydraulic fluid. Reinstall the fill cap and tighten.
12.7 Restore power to the equipment and test the unit. The system should stay on continuously. If the sys-
tem shuts off, even intermittently, shut the power off at the circuit breaker and add an additional cup of
hydraulic fluid. Restore power to the equipment and turn the unit on to test.
Antenna Connection
Fill Cap
Low-Pressure
Connection
Fastlane
®
Wireless
Controller
High-Pressure
Connection
Swim Unit Installation
38
