Fastlane
Swim Unit Installation
®
W
19
After the liner is installed, add water to the pool to weigh the liner down pulling it tight. When the liner is
tight, cut the holes for each thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes
as small as possible for the threaded rods (Fig 4.22).

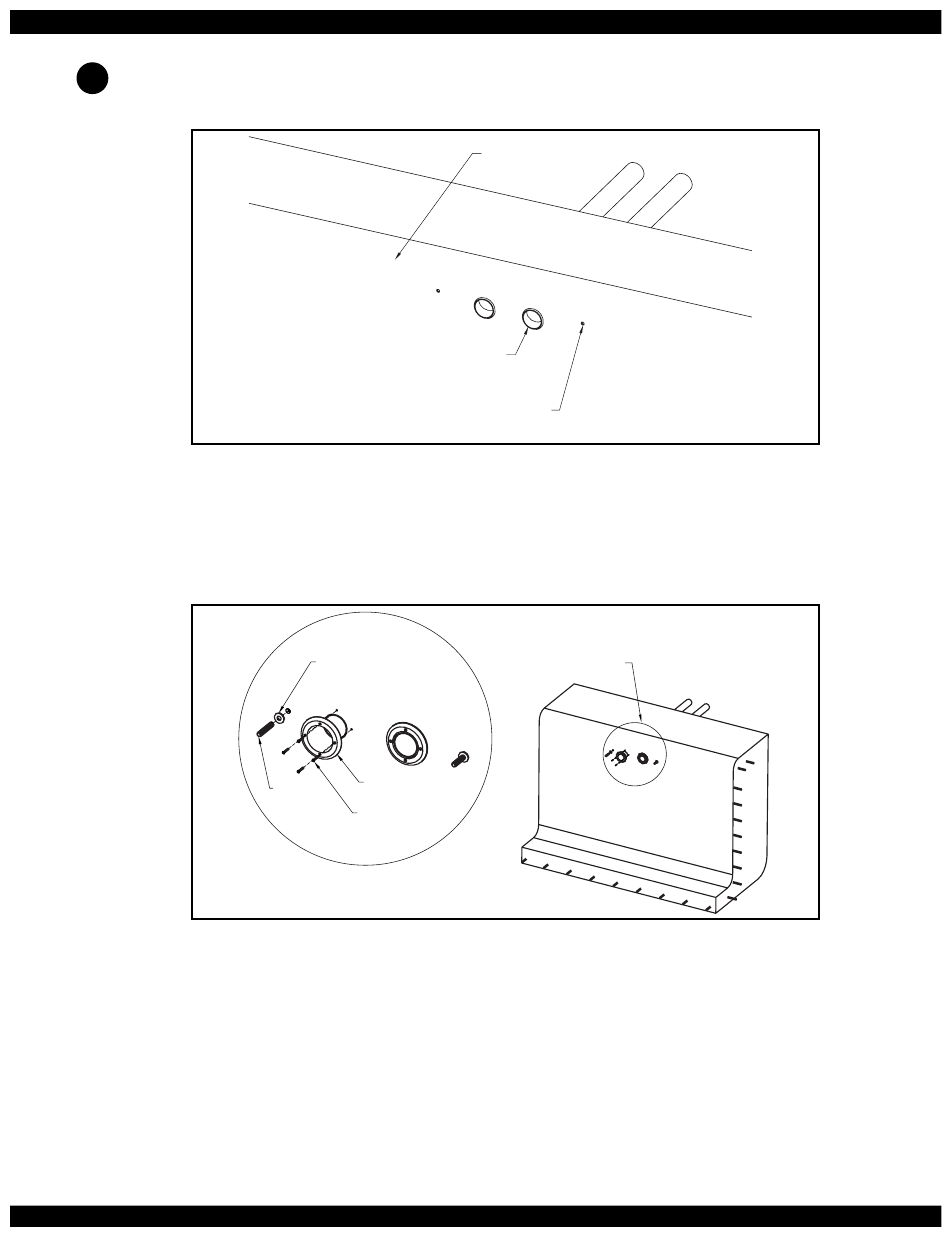

Fig. 4.22
Using a scratch awl, poke the holes out in each star thru-wall fitting (holes located in 12, 3, 6, 9 clock
positions) and install the thru-wall faceplates using the screws provided. Tighten the screws with a hand
screwdriver to avoid cracking the faceplates. Apply RTV or a similar caulk to the threaded stud and rubber
washer and thread each stud into the 3/8" (9,5mm) holes in the liner/pool wall making sure the rubber
washer is flush against pool liner (Fig 4.23).
Rubber Washer
Thru-Wall
Threaded
Faceplate
Stud
Faceplate
Screw
DETAIL A
Fig. 4.23
Pool Liner
Cut holes in liner for the
thru-wall fittings using
the fitting as a template
Cut holes for the 3/8" (9,5mm)
threaded rods
Threaded Studs &
Thru-Wall Faceplates
(See Detail A)
