Endless Pools FASTLANE Owner's Manual page 22

Fastlane Swim Unit Installation
®

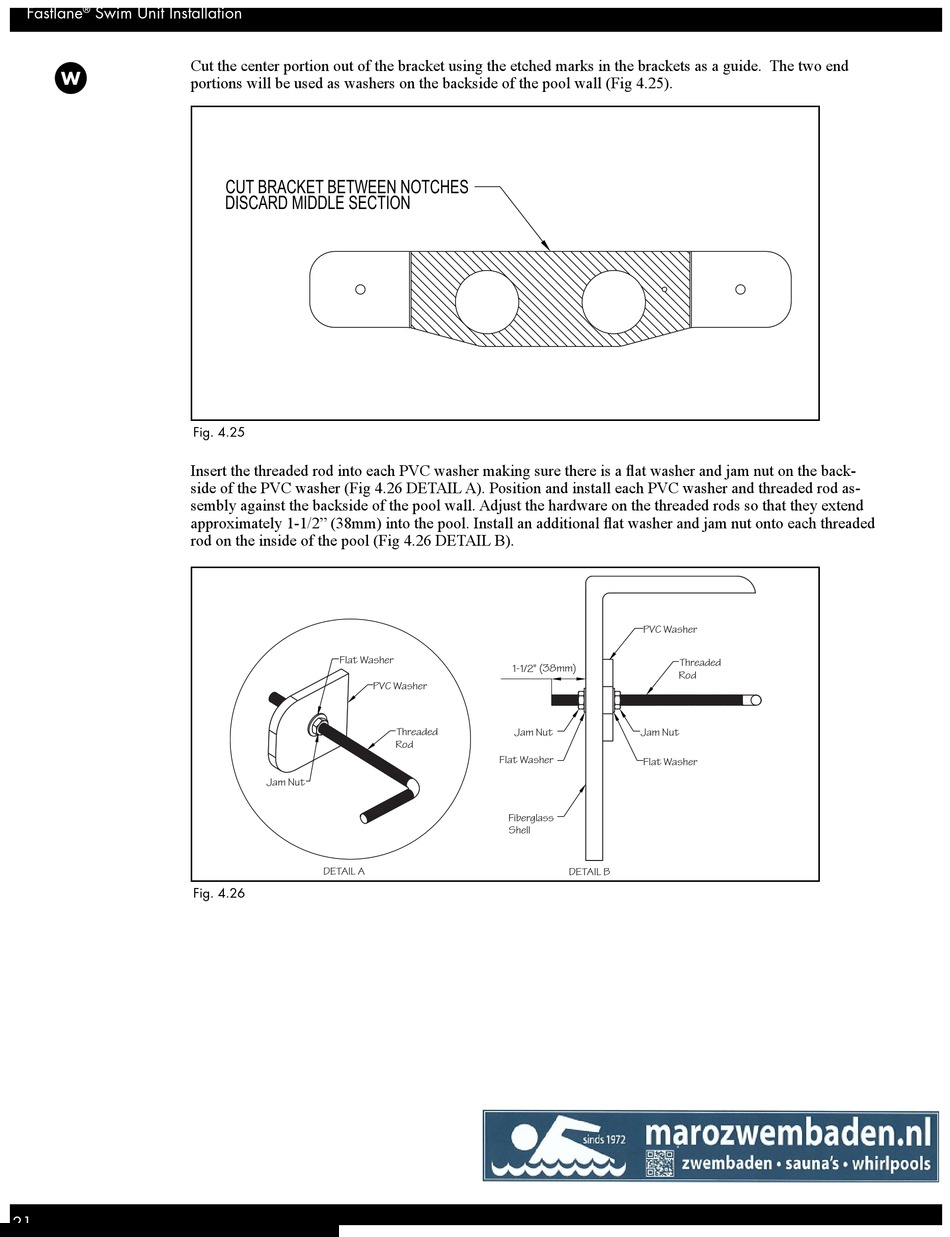

Cut the center portion out of the bracket using the etched marks in the brackets as a guide. The two end
W
portions will be used as washers on the backside of the pool wall (Fig 4.25).
Insert the threaded rod into each PVC washer making sure there is a flat washer and jam nut on the back-
side of the PVC washer (Fig 4.26 DETAIL A). Position and install each PVC washer and threaded rod as-
sembly against the backside of the pool wall. Adjust the hardware on the threaded rods so that they extend
approximately 1-1/2" (38mm) into the pool. Install an additional flat washer and jam nut onto each threaded
rod on the inside of the pool (Fig 4.26 DETAIL B).
21
CUT BRACKET BETWEEN NOTCHES
DISCARD MIDDLE SECTION
Fig. 4.25
Flat Washer
PVC Washer
Jam Nut
DETAIL A
Fig. 4.26
200 East Dutton Mill Road., Aston PA 19014
Website: http://www.endlesspools.com
Email: swim@endlesspools.com Phone: 484-768-1000
1-1/2" (38mm)
Threaded Jam Nut
Rod
Flat Washer
Fi berglass
Shell
DETAIL B
Drawing Name: Part Name:
FIBERGLASS FASTLANE INSTALLATION TRIMMING OF BRACKET
Tolerance: (unless otherwise specified) Material:
-
+/- tolerance, +/- tolerance°
Revision: Date: Dwg By: Description:
05-31-07
KGK Initial Release
A
PVC Washer
Threaded
Rod
Jam Nut
Flat Washer
Drawing Number:
Part#-Rev
Drawing Not To Scale
Sheet Number:
1
