Fastlane
Swim Unit Installation
®
Section 7

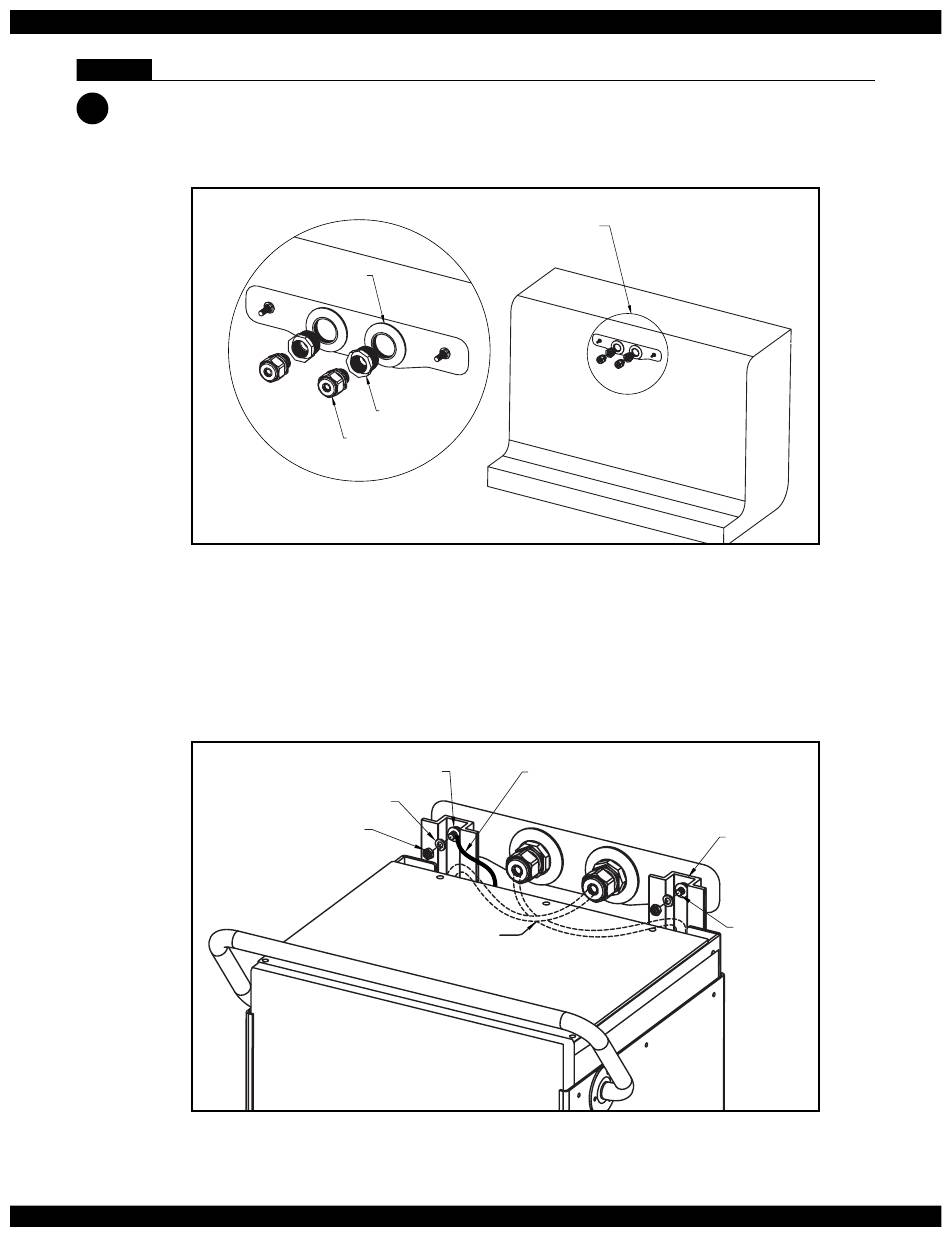

INSTALLATION OF YOUR WALL MOUNT FASTLANE
Fill the pool up to operating level, which should be approximately 1-1/2" (38mm) below the mounting rods.
W
Apply Teflon sealant to the threads of each 1-1/2" (38mm) MPT x 1" (25mm) FPT bushing reducer and
thread them into the thru-wall fittings. Then apply Teflon thread sealant to the threads of the liquid tight
fittings and thread them into the bushing reducers (Fig 7.1).
Using two people, carefully lower the Fastlane into the pool. Align the holes at the top of the protective hat
sections with the threaded mounting rods and rest the Fastlane into place. The Fastlane will hang from the
mounting rods. Place a 3/8" (9,5mm) flat washer onto each mounting rod making sure it's flush against the
hat channel. Secure the stainless steel bond wire that exits the top of the Fastlane to the threaded rod.
Place a 3/8" (9,5mm) lock washer and jam nut onto each threaded rod to secure the Fastlane (Fig 7.2).
Insert the hoses into the conduits. The hoses should cross over themselves prior to inserting into the conduit
(i.e. left hose will be inserted into the right conduit)
31
Thru-Wall
Fitting
Liquid Tight Fitting
DETAIL A
Fig. 7.1
Flat Washer
Split Washer
Jam Nut
Fig. 7.2
Bushing Reducer &
Liquid Tight Fitting
(See Detail A)
Bushing Reducer
Stainless steel bond wire exiting
the top of the FastLane MUST be
attached to the threaded rod
Cross hydraulic hoses
prior to inserting into
liquid tight fittings
Hat Section
Threaded Rod
