Fastlane Swim Unit Installation
®
Install the star thru-wall fittings with the holes for the cover at 12, 3, 6, and 9 (clock positions) as shown in
W
Figure 4.7
Thread the 3/8" (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so
that half of the hex coupling is threaded onto the rod and the other half that's facing the pool is protruding
off the threaded rod. Tighten the jam nut so that its flush with the hex coupling to prevent the hex coupling
from threading further onto the rod. On the outside of the pool (backside of the pool wall), position each
rod and hex coupling to align with the 3/8" (9,5mm) holes drilled (Fig 4.8).
11

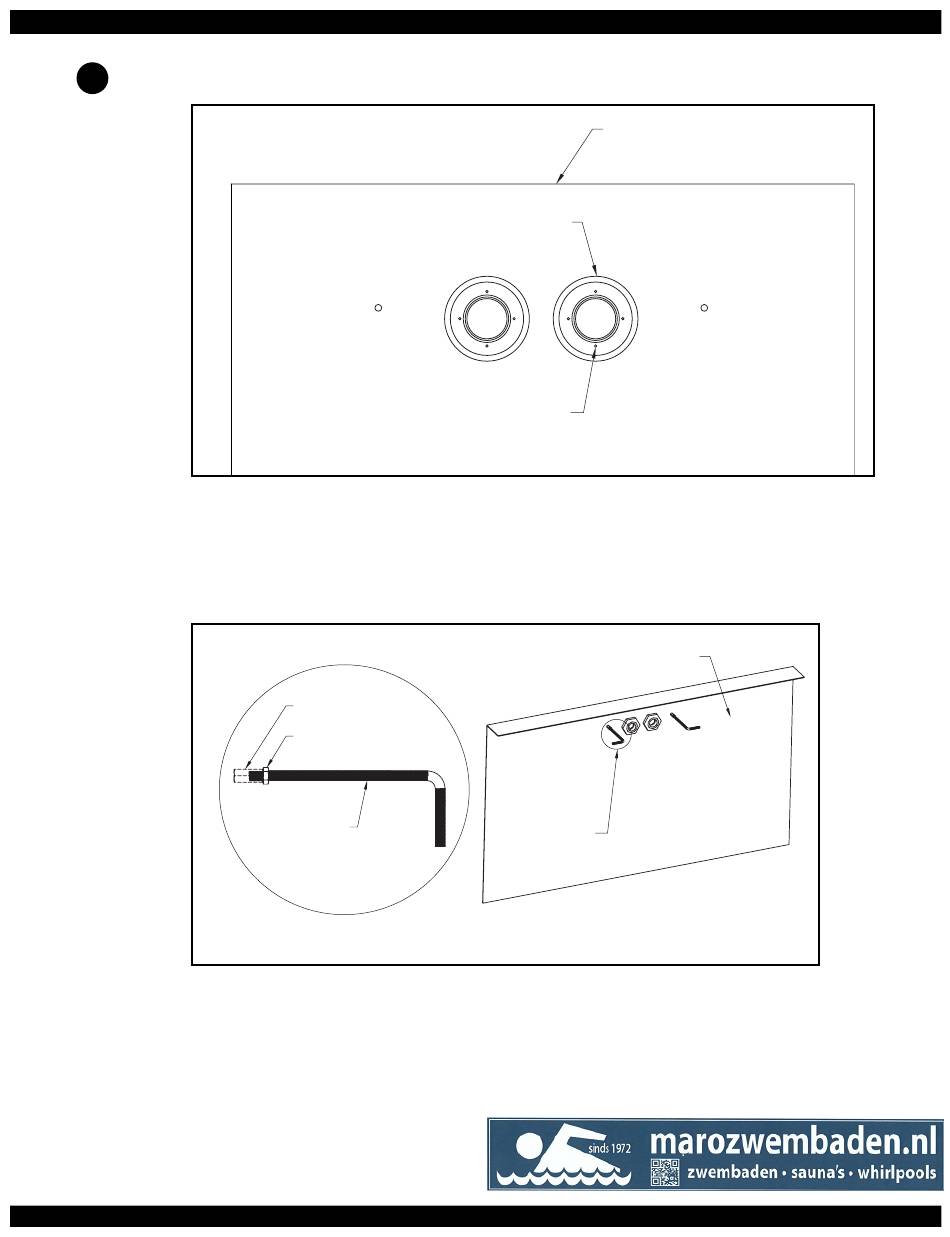

Fig. 4.7
Hex Coupling
Jam Nut
Threaded Rod
DETAIL A
Fig. 4.8
Star Thru-Wall Fitting
Holes in thru-wall fitting
oriented at 12, 3, 6, 9
clock positions
Threaded Rod
(See Detail A)
Pool Wall
Backside of pool wall
