Section 8 DECK MOUNT FASTLANE HOSE COVER TRAY INSTALLATION
8.1 Choose where the Fastlane is to be placed in the pool. The water depth must be 39" (99cm). There must
D
be a minimum of 24" (61cm) between the Fastlane and any adjacent wall or pool obstruction.

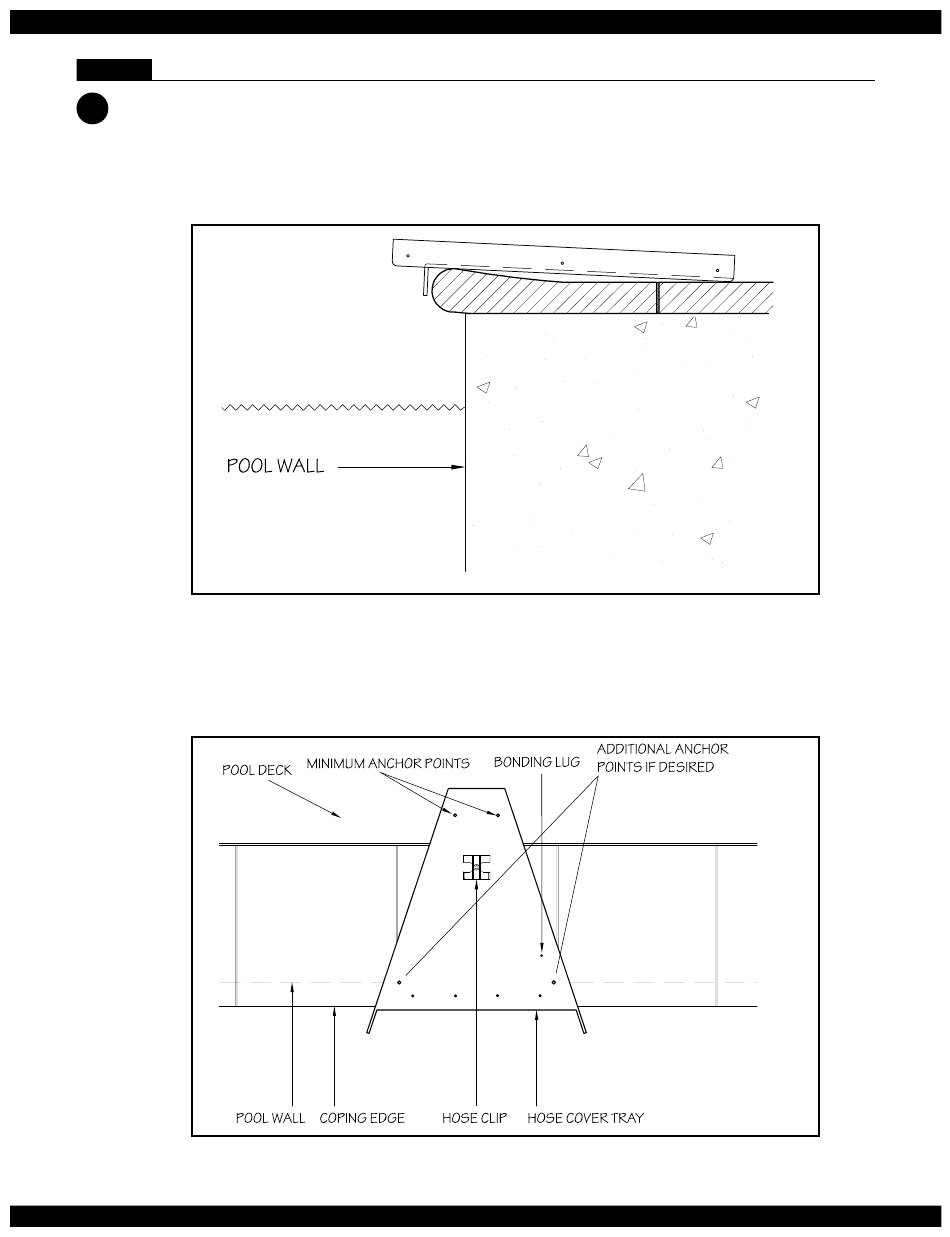

8.2 Position the hose cover tray onto the pool deck so that the vertical lip of the tray is seated firmly against
the coping. The coping MUST fully support the hose cover tray. The tray will be centered to the Fast-
lane. If the pool has bullnose coping it is acceptable for the hose cover tray to be slightly out of level as
shown in Figure 8.1.
Fig. 8.1
8.3 Use the provided 5/32" (4mm) drill bit to drill a hole into the deck approximately 2" (50,8mm) deep
through the two holes in the rear of the tray. These holes must be drilled into solid decking material.
While these 2 screws are enough to secure the Fastlane to the pool wall, extra anchor screws have been
provided for additional anchor points if desired (Fig 8.2).
Fig. 8.2
Fastlane Swim Unit Installation
®
