Fastlane Swim Unit Installation
®
Section 9 DECK MOUNT FASTLANE INSTALLATION
D

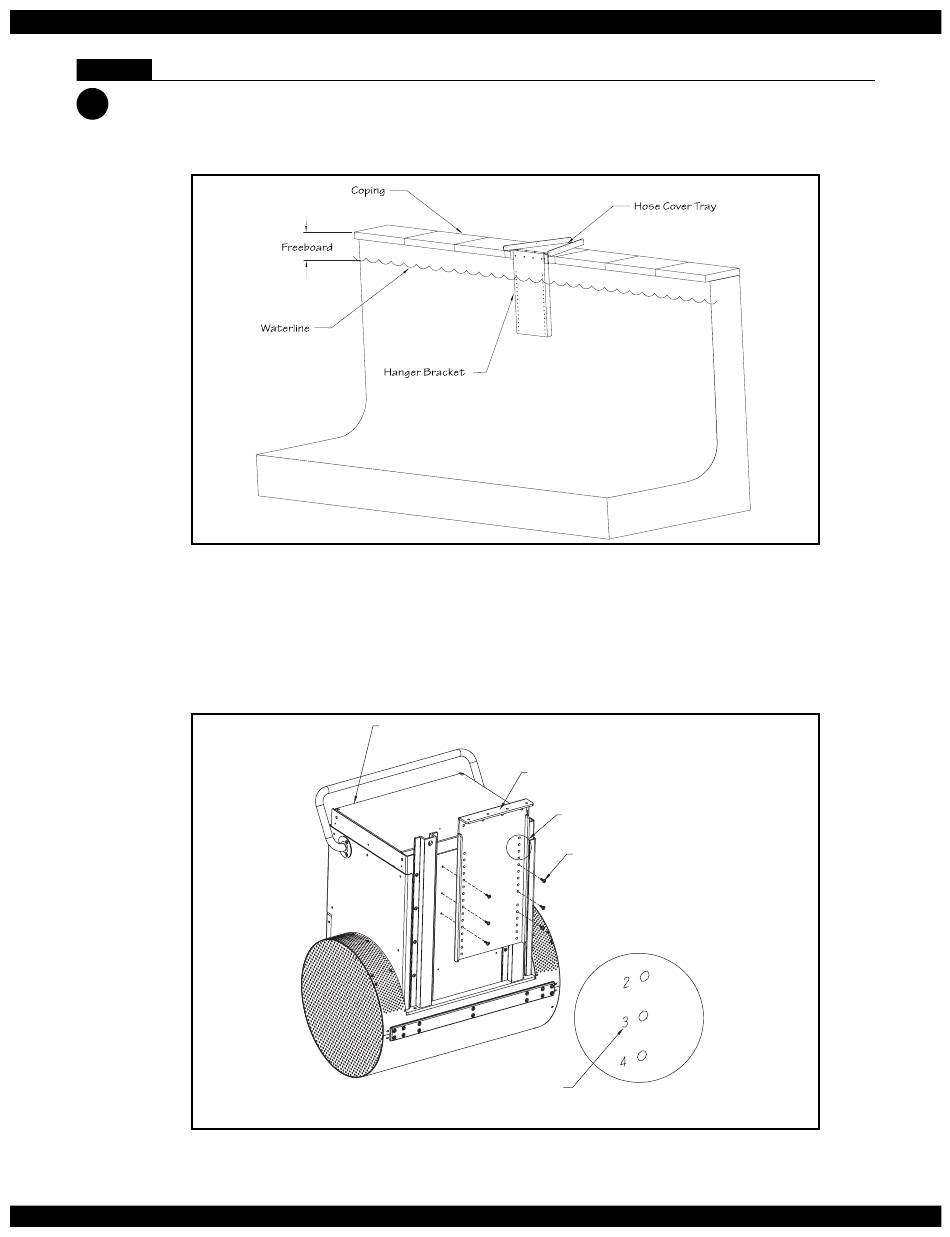

9.1 Loosely secure the hanger bracket to the hose cover tray with one of the provided 1/2" (12,7mm) stain-
Fig. 9.1
9.2 Carefully lay the assembled Fastlane down on its front face. There are six pre-drilled holes in the center
Fig. 9.2
33
less steel screws. Measure down from the top of the hanger bracket to the water line (this measurement
is called freeboard). Once the measurement has been taken, remove the hanger bracket from the tray
(Fig 9.1).
of the top housing (between the protective hat channels). Align the top set of holes in the rear of the
housing with appropriate number hole in the hanger bracket (if the freeboard is 6" (15,2cm) then align
the #6 holes with the top holes in the housing). When the hanger bracket is positioned on the housing,
use the provided 3/4" (19mm) screws to attach (Fig 9.2).
Front Face of
the Fastlane
Hanger Bracket
See Detail A
3/4" (19mm)
Stainless Steel
Screw
Top screws should go
through the holes in
the bracket that
correspond with the
freeboard height
Numbers etched in
hanger bracket equal
DETAIL A
freeboard height in
inches
