Fastlane Swim Unit Installation
®
The bracket is to be installed into the pool wall as shown in Figure 4.2 so that the two threaded mounting
W
rods are 1-1/2" (38mm) above the intended waterline for the pool, which is typically halfway up the skim-
mer. The "Waterline" mark on the bracket will sit along the pools intended waterline.
Level and position the bracket so that the PVC surface of the bracket will be flush with the finished surface
of the pool wall as shown in Figures 4.2. and 4.5. The area below the bracket should be no more than 5
degrees less than the vertical down to at least 39" (99cm) below the waterline. The Fastlane is 21" (53,3cm)
wide. Consequently, the 21" (53,3cm) section of wall where the bracket is located should be straight or
near straight.
The threaded rods attached to the bracket must be tied back to the rebar of the pool with rebar wire. Once
encased in concrete, these rods will serve as a suitable hanger. The threaded rods must penetrate 1-1/4" to
1-1/2" (31,8mm x 38mm) into the finished pool and will be used to hang the Fastlane

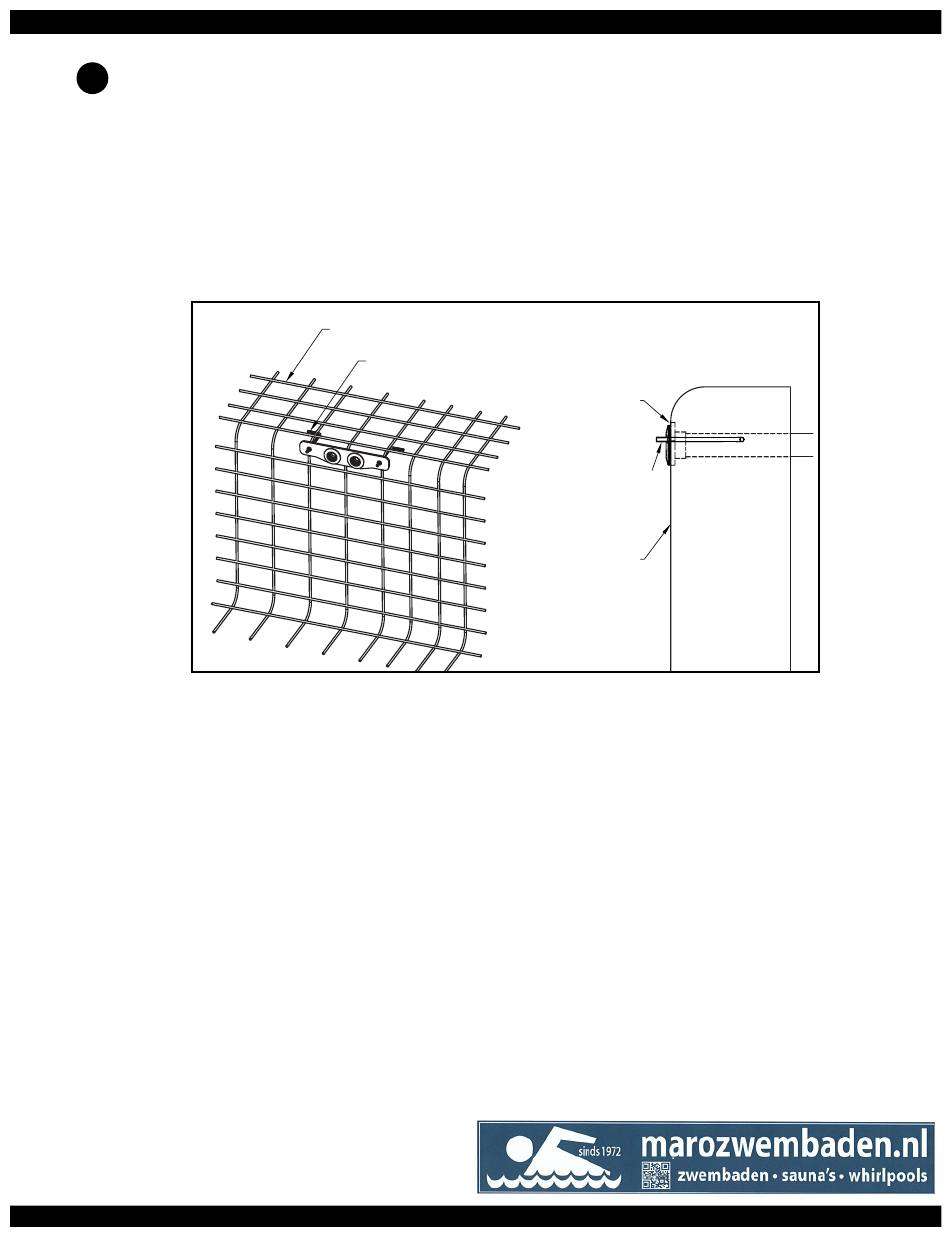

Fig. 4.2
7
Rebar Grid
Tie Threaded Rods to
rebar with rebar wire
Wall Bracket
flush with
finished pool wall
Threaded Rods
1-1/2" (38mm)
above pools waterline
Finished
Pool Wall
