Exerpeutic 900XL Owner's Manual page 16

STEP 5

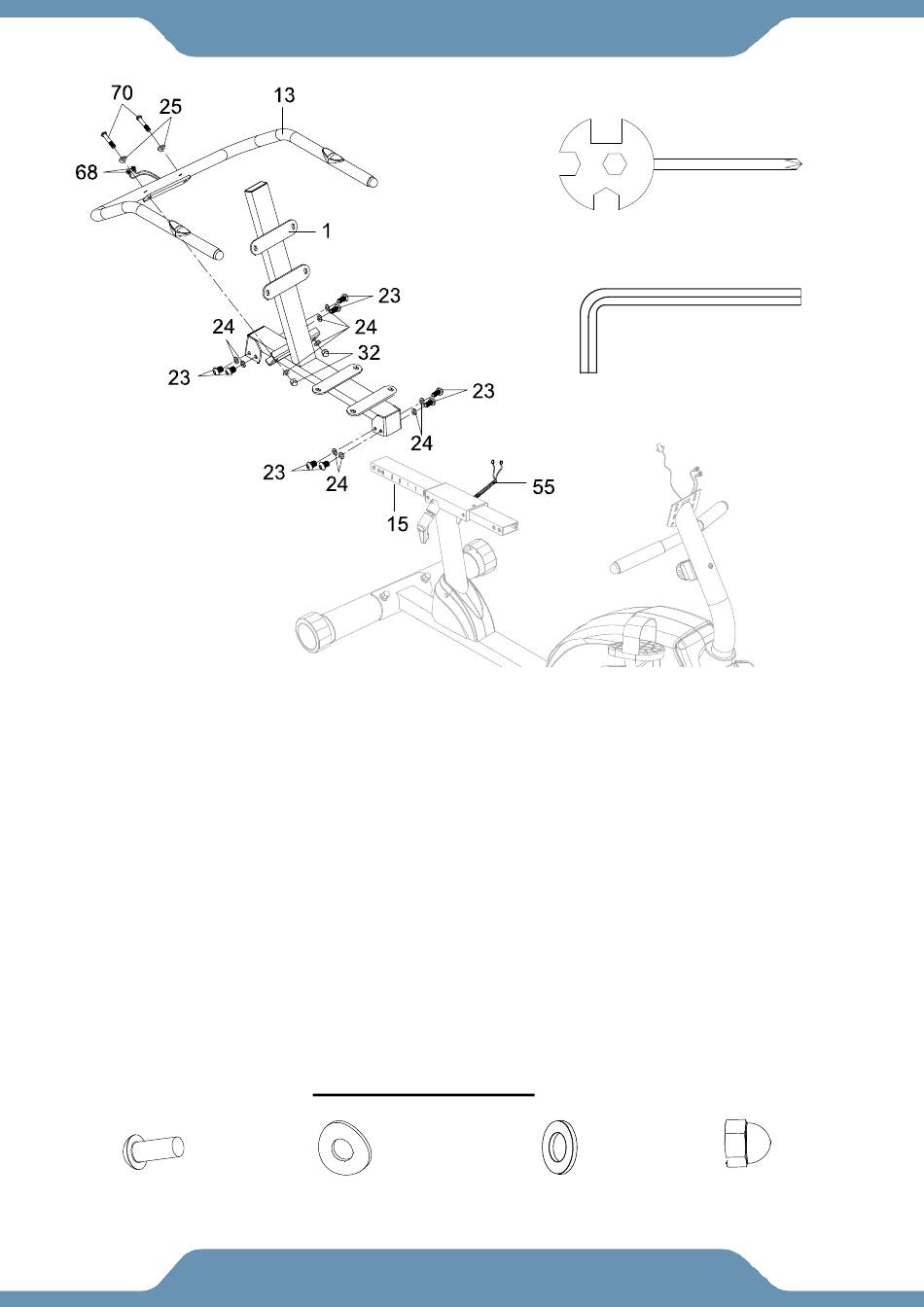

5a. Removing Hardware- Remove eight Bolts (23) and eight Washers (24) from the Back/Seat
Support Bracket (1) and Seat Sliding Tube (15). Remove bolts with the 6mm Allen Wrench
provided.
5b. Installing the Seat Sliding Tube - Insert the Seat Sliding Tube (15) into the Bushings (54) of
the Rear Main Frame (3). Attach the Seat Sliding Tube (15) to the Back and Seat Support
Bracket (1) with eight Bolts (23) and eight Washers (24) that were removed. Tighten bolts with
the 6mm Allen Wrench provided.
5c. Instalilng the Handlebar –Attach the Handlebar (13) onto the Back and Seat Support
Bracket (1) with two Bolts (70), two Curve Washers (25), two Washers (24), and two Cap Nuts
(32). Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided. Connect the
Middle Section Hand Pulse Sensor Wires (55) from the Rear Main Frame (3) to the Hand Pulse
Sensor Wire (68) from the Handlebar (13).
(70) Bolt
2 PCS
ASSEMBLY
HARDWARE PACK
(25) Curve Washer
2 PCS
Tool:
Multi Hex Tool with Phillips
6mm Allen Wrench
(24) Washer
2 PCS
14
Screwdriver
(32) Cap Nut
2 PCS
